Home / Backlights

Backlights

Backlights sit behind the part and give the camera a sharp, high-contrast silhouette - the standard choice for gauging, outline and hole inspection, and for spotting contamination in clear film. Collimated versions keep edges crisp on thick parts; edge-lit versions are the thinnest.

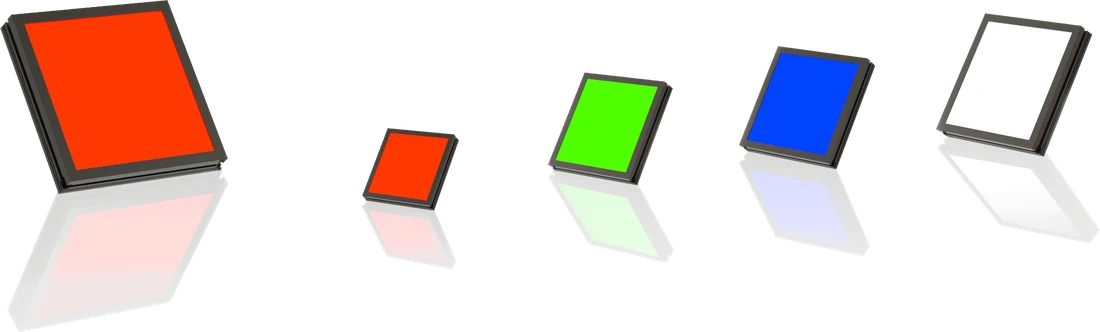

Bottom Back Light (2BC, BC series)

LS-2BC series · 18 models · from $79.00

Bottom Back Light (2BC, BC series)

  • High-brightness LED array arrangement for achieving uniform plane illumination.
  • Large-area uniform illumination for transmissive contour imaging.

Typical uses: Various size measurements, electronic component/IC outline inspection, film spot detection.

ModelSizePowerColoursPrice
LS-2BC-30X3027 x 27 mm1.44 W $79.00 View
LS-2BC-50X5050 x 50 mm3.5 W $89.00 View
LS-2BC-70X7070 x 70 mm6.3 W $99.00 View
LS-2BC-80X8080 x 80 mm8.6 W $99.00 View
LS-2BC-110X60110 x 60 mm8.6 W $99.00 View
LS-2BC-100X100100 x 100 mm11.5 W $109.00 View
LS-2BC-120X120120 x 120 mm17.3 W $129.00 View
LS-2BC-150X150150 x 150 mm28.8 W $159.00 View
LS-2BC-200X120200 x 120 mm28.8 W $159.00 View
LS-2BC-200X150200 x 150 mm36 W $189.00 View
LS-2BC-200X200200 x 200 mm43.2 W $219.00 View
LS-2BC-300X150300 x 150 mm51.8 W $239.00 View
LS-2BC-220X220220 x 220 mm50.7 W $249.00 View
LS-2BC-250X250250 x 250 mm41.5 W $299.00 View
LS-2BC-280X280280 x 280 mm69.1 W $359.00 View
LS-2BC-300X300300 x 300 mm72 W $399.00 View
LS-2BC-400X300400 x 300 mm103.7 W $509.00 View
LS-2BC-400X400400 x 400 mm126.7 W $649.00 View

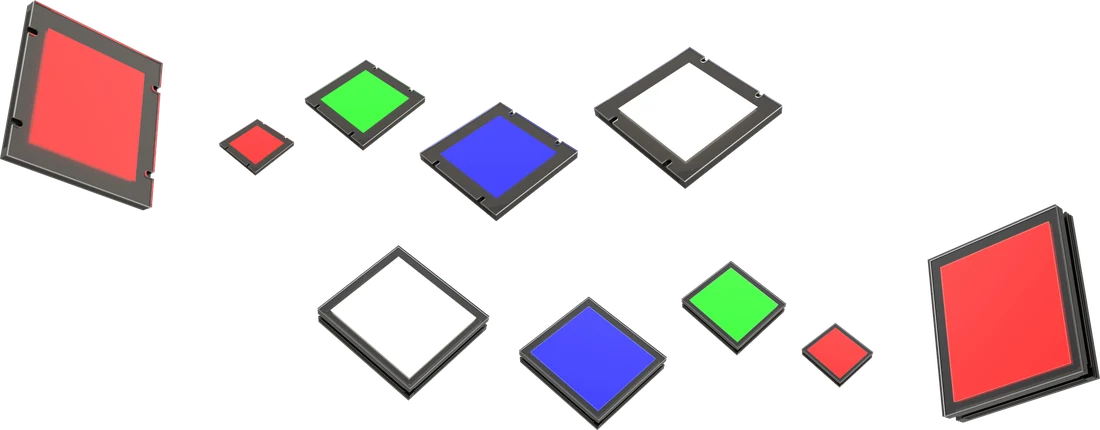

Collimated Bottom Back Light (2BCP series)

LS-2BCP series · 18 models · from $89.00

Collimated Bottom Back Light (2BCP series)

  • Flexible design for width, length, and overall dimensions.
  • Effectively enhances product edge sharpness and contrast.
  • High uniformity.

Typical uses: Metal cylinder contour inspection, glass bottle diameter inspection, ceramic column diameter inspection, screw thread contour inspection.; Transparent packaging box detection; Contour defects

ModelSizePowerColoursPrice
LS-2BCP-30X3030 x 30 mm1.44 W $89.00 View
LS-2BCP-50X5050 x 50 mm3.5 W $99.00 View
LS-2BCP-70X7070 x 70 mm6.3 W $109.00 View
LS-2BCP-80X8080 x 80 mm8.6 W $119.00 View
LS-2BCP-110X60110 x 60 mm8.6 W $119.00 View
LS-2BCP-100X100100 x 100 mm15.1 W $139.00 View
LS-2BCP-120X120120 x 120 mm17.3 W $159.00 View
LS-2BCP-150X150150 x 150 mm28.8 W $199.00 View
LS-2BCP-200X120200 x 120 mm28.8 W $199.00 View
LS-2BCP-200X150200 x 150 mm36 W $229.00 View
LS-2BCP-250X150250 x 150 mm41.5 W $269.00 View
LS-2BCP-200X200200 x 200 mm43.2 W $279.00 View
LS-2BCP-300X150300 x 150 mm51.8 W $309.00 View
LS-2BCP-220X220220 x 220 mm50.7 W $319.00 View
LS-2BCP-280X280280 x 280 mm69.1 W $469.00 View
LS-2BCP-300X300300 x 300 mm72 W $519.00 View
LS-2BCP-400X300400 x 300 mm103.7 W $669.00 View
LS-2BCP-400X400400 x 400 mm126.7 W $859.00 View

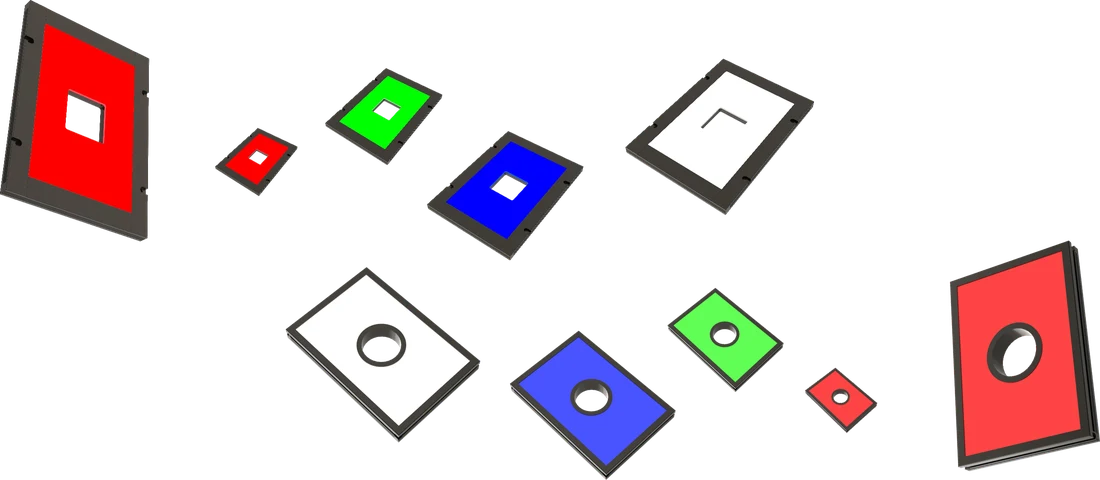

Flank Back Light with Hole (2FCK series)

LS-2FCK series · 14 models · from $129.00

Flank Back Light with Hole (2FCK series)

  • Ultra-thin design, with customizable hole size, shape, dimension and position.
  • Achieves uniform illumination over a large area.
  • High-precision, large-area product size measurement using parallel backlighting.

Typical uses: Large size product positioning, high uniformity recognition scenarios, various size measurements, transmission-based detection of presence/absence.; PCB board fiducial mark positioning; Keyboard character inspection

ModelSizePowerColoursPrice
LS-2FCK-100X100-D35100 x 100 mm12.5 W $129.00 View
LS-2FCK-250X120-D50250 x 120 mm26 W $209.00 View
LS-2FCK-250X150-D50250 x 150 mm26 W $239.00 View
LS-2FCK-200X200-D50200 x 200 mm20.5 W $249.00 View
LS-2FCK-300X200-D50300 x 200 mm27 W $339.00 View
LS-2FCK-250X250-D50250 x 250 mm26 W $349.00 View
LS-2FCK-400X200-D40400 x 200 mm43.5 W $419.00 View
LS-2FCK-300X300-D50300 x 300 mm31 W $459.00 View
LS-2FCK-400X300-D50400 x 300 mm36 W $579.00 View
LS-2FCK-500X400-D70500 x 400 mm52 W $909.00 View
LS-2FCK-600X450-D50600 x 450 mm57.5 W $1,199.00 View
LS-2FCK-800X600-D50800 x 600 mm74.5 W $2,059.00 View
LS-2FCK-900X618-D50900 x 618 mm51 W $2,369.00 View
LS-2FCK-1568X668-D501568 x 668 mm151 W $4,389.00 View

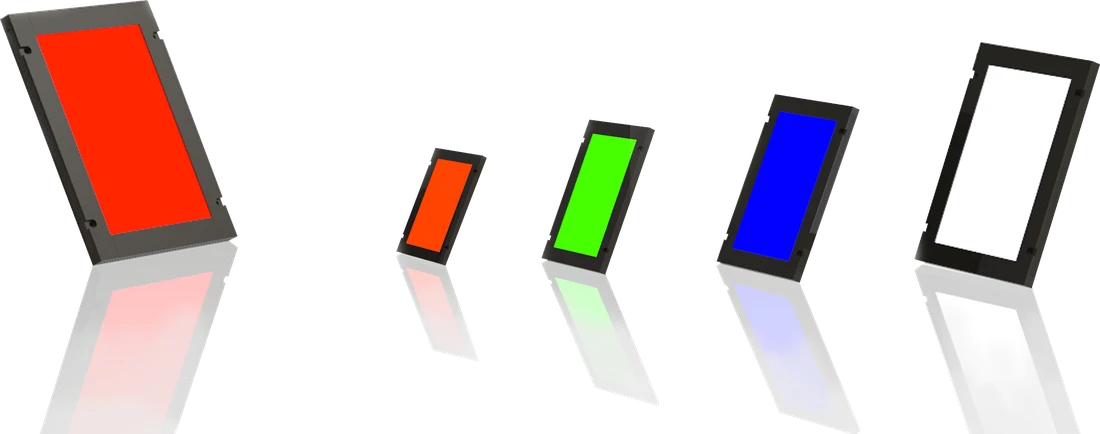

Flank Back Light (FC series)

LS-FC series · 14 models · from $79.00

Flank Back Light (FC series)

  • Flexible design for width and length dimensions.
  • Suitable for uniform illumination over large areas, effectively highlighting workpiece contours.
  • High uniformity.

Typical uses: Precision part size measurement, edge damage detection, transparent surface scratch, internal foreign object detection, liquid level check, liquid contaminant detection.; PCB flexible board circuit inspection; Spoon burr defect detection

ModelSizePowerColoursPrice
LS-FC-25X2525 x 25 mm2.3 W $79.00 View
LS-FC-50X5050 x 50 mm6 W $89.00 View
LS-FC-70X7070 x 70 mm7 W $99.00 View
LS-FC-80X8080 x 80 mm7 W $99.00 View
LS-FC-90X9090 x 90 mm7.5 W $109.00 View
LS-FC-110X110110 x 110 mm8.5 W $119.00 View
LS-FC-150X100150 x 100 mm8.5 W $129.00 View
LS-FC-200X160200 x 160 mm9 W $189.00 View
LS-FC-200X200200 x 200 mm10 W $219.00 View
LS-FC-250X200250 x 200 mm12 W $259.00 View
LS-FC-300X200300 x 200 mm15 W $289.00 View
LS-FC-300X300300 x 300 mm25 W $399.00 View
LS-FC-400X300400 x 300 mm28 W $509.00 View
LS-FC-600X400600 x 400 mm30 W $939.00 View
Collimated Flank Back Light (FCP series)

LS-FCP series · 14 models · from $89.00

Collimated Flank Back Light (FCP series)

  • Flexible design for width, length, and overall dimensions.
  • Effectively enhances product edge sharpness and contrast.
  • High uniformity.

Typical uses: Metal cylinder contour inspection, glass bottle diameter inspection, ceramic column diameter inspection, screw thread contour inspection.; Transparent packaging box detection; Contour defects

ModelSizePowerColoursPrice
LS-FCP-25X2525 x 25 mm2.3 W $89.00 View
LS-FCP-50X5050 x 50 mm6 W $99.00 View
LS-FCP-70X7070 x 70 mm7 W $109.00 View
LS-FCP-80X8080 x 80 mm7 W $119.00 View
LS-FCP-90X9090 x 90 mm7.5 W $129.00 View
LS-FCP-110X110110 x 110 mm8.5 W $149.00 View
LS-FCP-150X100150 x 100 mm8.5 W $159.00 View
LS-FCP-200X160200 x 160 mm9 W $239.00 View
LS-FCP-200X200200 x 200 mm10 W $279.00 View
LS-FCP-250X200250 x 200 mm12 W $329.00 View
LS-FCP-300X200300 x 200 mm15 W $379.00 View
LS-FCP-300X300300 x 300 mm25 W $519.00 View
LS-FCP-400X300400 x 300 mm28 W $669.00 View
LS-FCP-600X400600 x 400 mm30 W $1,249.00 View
Bottom Back Light with Hole (2BCK series)

LS-2BCK series · 12 models · from $139.00

Bottom Back Light with Hole (2BCK series)

  • Ultra-thin design, with customizable hole size, shape, dimension and position.
  • Achieves uniform illumination over a large area.
  • High-precision, large-area product size measurement using parallel backlighting.

Typical uses: Large size product positioning, high uniformity recognition scenarios, various size measurements, transmission-based detection of presence/absence.; PCB board fiducial mark positioning; Keyboard character inspection

ModelSizePowerColoursPrice
LS-2BCK-110X110-D40110 x 110 mm13 W $139.00 View
LS-2BCK-200X100-D40200 x 100 mm16 W $169.00 View
LS-2BCK-150X150-D45150 x 150 mm21 W $179.00 View
LS-2BCK-200X200-D50200 x 200 mm27 W $249.00 View
LS-2BCK-300X200-D40300 x 200 mm40 W $339.00 View
LS-2BCK-300X200-D60300 x 200 mm40 W $339.00 View
LS-2BCK-400X200-D50400 x 200 mm54 W $419.00 View
LS-2BCK-300X300-D50300 x 300 mm65 W $459.00 View
LS-2BCK-300X300-D60300 x 300 mm64 W $459.00 View
LS-2BCK-400X300-D60400 x 300 mm80 W $579.00 View
LS-2BCK-400X400-D50400 x 400 mm108 W $749.00 View
LS-2BCK-400X400-D65400 x 400 mm108 W $749.00 View
Bottom Back Light (BC series)

LS-BC series · 12 models · from $79.00

Bottom Back Light (BC series)

  • High-brightness LED array arrangement for achieving uniform plane illumination.
  • Large-area uniform illumination for transmissive contour imaging.

Typical uses: Various size measurements, electronic component/IC outline inspection, film spot detection.; Defect detection of chainsaw wheel gears; Impurity detection in liquid

ModelSizePowerColoursPrice
LS-BC-27X2727 x 27 mm2.5 W $79.00 View
LS-BC-43X3543 x 35 mm2.5 W $79.00 View
LS-BC-50X5050 x 50 mm6.5 W $89.00 View
LS-BC-63X6063 x 60 mm8 W $89.00 View
LS-BC-83X7583 x 75 mm9.5 W $99.00 View
LS-BC-100X100100 x 100 mm10 W $109.00 View
LS-BC-200X50200 x 50 mm25 W $109.00 View
LS-BC-140X105140 x 105 mm15 W $129.00 View
LS-BC-160X120160 x 120 mm20 W $149.00 View
LS-BC-200X150200 x 150 mm30 W $189.00 View
LS-BC-224X170224 x 170 mm25 W $209.00 View
LS-BC-211X200211 x 200 mm33 W $229.00 View
Collimated Bottom Back Light (BCP series)

LS-BCP series · 12 models · from $89.00

Collimated Bottom Back Light (BCP series)

  • Flexible design for width, length, and overall dimensions.
  • Effectively enhances product edge sharpness and contrast.
  • High uniformity.

Typical uses: Metal cylinder contour inspection, glass bottle diameter inspection, ceramic column diameter inspection, screw thread contour inspection.; Transparent packaging box detection; Contour defects

ModelSizePowerColoursPrice
LS-BCP-27X2727 x 27 mm2.5 W $89.00 View
LS-BCP-43X3543 x 35 mm2.5 W $99.00 View
LS-BCP-50X5050 x 50 mm6.5 W $99.00 View
LS-BCP-63X6063 x 60 mm8 W $109.00 View
LS-BCP-83X7583 x 75 mm9.5 W $119.00 View
LS-BCP-100X100100 x 100 mm10 W $139.00 View
LS-BCP-200X50200 x 50 mm25 W $139.00 View
LS-BCP-140X105140 x 105 mm15 W $159.00 View
LS-BCP-160X120160 x 120 mm20 W $179.00 View
LS-BCP-200X150200 x 150 mm30 W $229.00 View
LS-BCP-224X170224 x 170 mm25 W $269.00 View
LS-BCP-211X200211 x 200 mm33 W $289.00 View
Flank Back Light with Hole (FCK series)

LS-FCK series · 6 models · from $149.00

Flank Back Light with Hole (FCK series)

  • Ultra-thin design, with customizable hole size, shape, dimension and position.
  • Achieves uniform illumination over a large area.
  • High-precision, large-area product size measurement using parallel backlighting.

Typical uses: Large size product positioning, high uniformity recognition scenarios, various size measurements, transmission-based detection of presence/absence.; PCB board fiducial mark positioning; Keyboard character inspection

ModelSizePowerColoursPrice
LS-FCK-150X100-T40150 x 100 mm11 W $149.00 View
LS-FCK-200X200-T40200 x 200 mm17.5 W $249.00 View
LS-FCK-250X200-T45250 x 200 mm20 W $289.00 View
LS-FCK-400X300-D50400 x 300 mm32 W $579.00 View
LS-FCK-350X350-T40350 x 350 mm28 W $589.00 View
LS-FCK-600X400-D50600 x 400 mm54 W $1,069.00 View

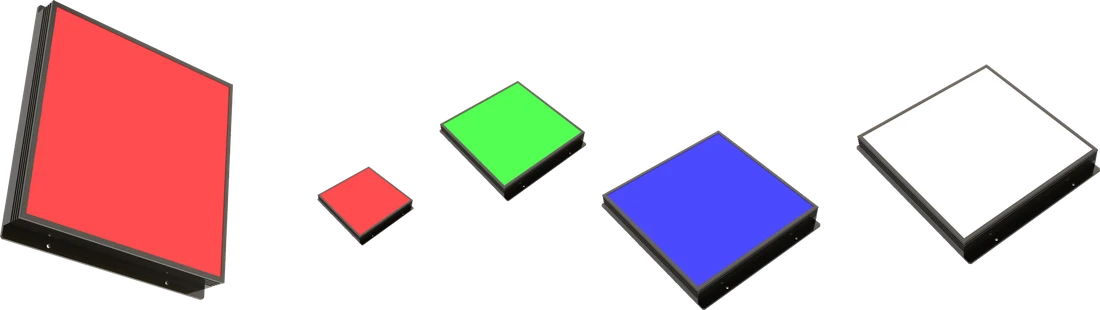

High Uniformity Back Light (HBC series)

LS-HBC series · 5 models · from $109.00

High Uniformity Back Light (HBC series)

  • Good uniformity, high brightness.
  • Uniform illumination over a large area, with flexible and variable dimensions.
  • High proportion of effective luminous surface, suitable for compact installation environments.

Typical uses: Size measurement, contour inspection, metal burr detection, transparent object scratch detection, internal foreign object detection.; Dice (or wheel) dimension inspection; Metal plate dimension inspection

ModelSizePowerColoursPrice
LS-HBC-50X5050 x 50 mm4.5 W $109.00 View
LS-HBC-110X110110 x 110 mm8.1 W $149.00 View
LS-HBC-240X160240 x 160 mm24 W $269.00 View
LS-HBC-450X350430 x 350 mm135 W $769.00 View
LS-HBC-550X400550 x 400 mm200 W $1,079.00 View
Backlights

SOYO series · 1 models · from $399.00

Backlights

  • Parallel (collimated) output for crisp part edges and accurate gauging
  • 120 x 120 mm uniform emitting area
  • White 5000-8000 K; red, green and blue versions on request
  • 24 V, runs from a standard multi-channel light controller
ModelSizePowerColoursPrice
HPHFL120120-W $399.00 View
