Line scan lights

Line scan lights put a narrow, very bright and uniform line on moving web, sheet and conveyor inspection for line-scan cameras. Choose cooling by duty and brightness: passive, fan or water cooled, plus coaxial and dual-angle versions.

LS-LNJ series · 21 models · from $329.00

Double angle line scan light (LNJ)

Adopting a special optical design, the light is obliquely projected in a crossed pattern.
Unique heat dissipation structure to extend the life-span of the light.
Can be customized according to the actual installation dimensions.

Typical uses: Sheet stripe detection; Film scratch detection; Glass scratch detection

Model	Size	Power	Price
LS-LNJ-100	100 mm	39 W	$329.00	View
LS-LNJ-150	150 mm	50 W	$449.00	View
LS-LNJ-200	200 mm	58 W	$559.00	View
LS-LNJ-250	250 mm	68 W	$669.00	View
LS-LNJ-300	300 mm	90 W	$789.00	View
LS-LNJ-350	350 mm	80 W	$899.00	View
LS-LNJ-400	400 mm	110 W	$1,009.00	View
LS-LNJ-500	500 mm	150 W	$1,239.00	View
LS-LNJ-600	600 mm	180 W	$1,469.00	View
LS-LNJ-700	700 mm	210 W	$1,689.00	View
LS-LNJ-750	750 mm	220 W	$1,809.00	View
LS-LNJ-800	800 mm	220 W	$1,919.00	View
LS-LNJ-850	850 mm	260 W	$2,029.00	View
LS-LNJ-900	900 mm	260 W	$2,149.00	View
LS-LNJ-1000	1000 mm	280 W	$2,369.00	View
LS-LNJ-1100	1100 mm	330 W	$2,599.00	View
LS-LNJ-1200	1200 mm	370 W	$2,829.00	View
LS-LNJ-1300	1300 mm	400 W	$3,049.00	View
LS-LNJ-1400	1400 mm	450 W	$3,279.00	View
LS-LNJ-1500	1500 mm	480 W	$3,509.00	View
LS-LNJ-1600	1600 mm	480 W	$3,729.00	View

LS-LNX series · 21 models · from $279.00

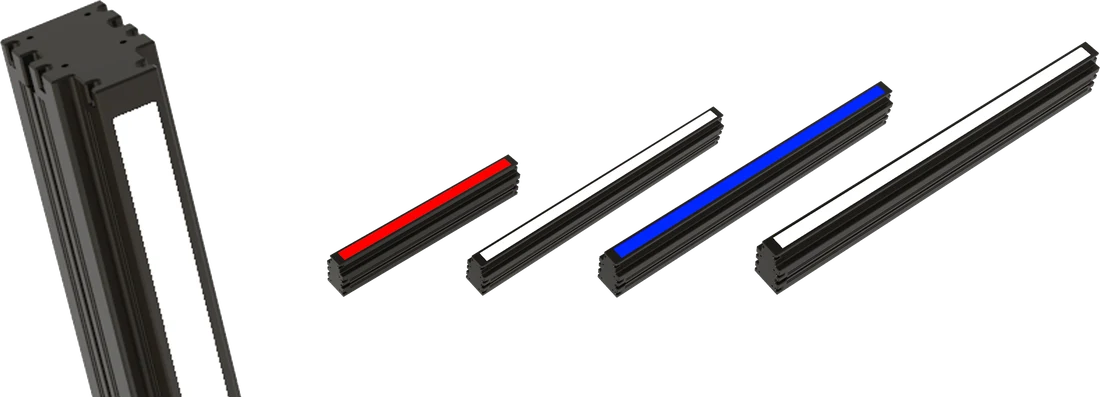

Line scan light with fan cooling (LNX)

Adopting a new high-grade optical cylindrical lens for perspective condensation.
Utilizing standard molds for shaping to ensure structural stability.
Excellent linear uniformity and consistency.

Typical uses: PCB circuit inspection; Screen surface (LCD, TP) scratch/stain detection; Lithium battery surface defect/size inspection

Model	Size	Power	Price
LS-LNX-100	100 mm	39 W	$279.00	View
LS-LNX-150	150 mm	50 W	$369.00	View
LS-LNX-200	200 mm	58 W	$469.00	View
LS-LNX-250	250 mm	68 W	$559.00	View
LS-LNX-300	300 mm	90 W	$659.00	View
LS-LNX-350	350 mm	80 W	$749.00	View
LS-LNX-400	400 mm	110 W	$839.00	View
LS-LNX-500	500 mm	150 W	$1,029.00	View
LS-LNX-600	600 mm	180 W	$1,219.00	View
LS-LNX-700	700 mm	210 W	$1,409.00	View
LS-LNX-750	750 mm	220 W	$1,509.00	View
LS-LNX-800	800 mm	220 W	$1,599.00	View
LS-LNX-850	850 mm	260 W	$1,699.00	View
LS-LNX-900	900 mm	260 W	$1,789.00	View
LS-LNX-1000	1000 mm	280 W	$1,979.00	View
LS-LNX-1100	1100 mm	330 W	$2,169.00	View
LS-LNX-1200	1200 mm	370 W	$2,359.00	View
LS-LNX-1300	1300 mm	400 W	$2,549.00	View
LS-LNX-1400	1400 mm	450 W	$2,729.00	View
LS-LNX-1500	1500 mm	480 W	$2,919.00	View
LS-LNX-1600	1600 mm	480 W	$3,109.00	View

LS-LNA series · 17 models · from $119.00

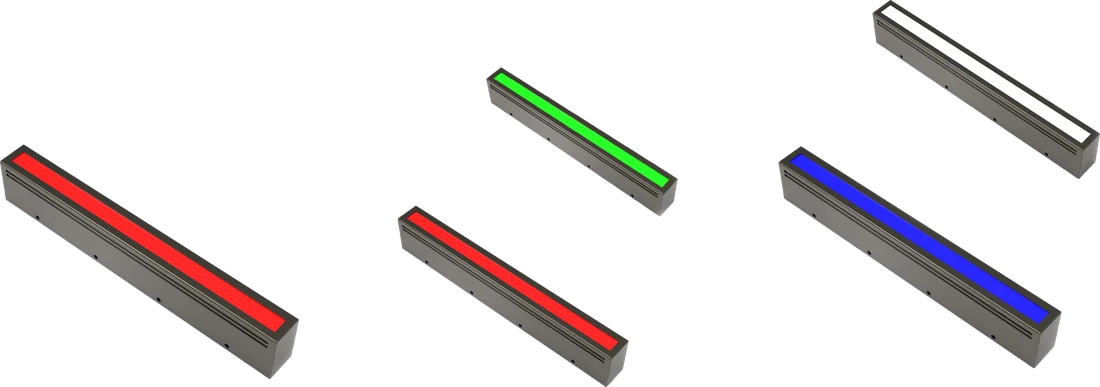

Mini line scan light (LNA)

High-power LED and unique condenser structure provide high brightness.
More compact in size, suitable for limited room.

Typical uses: Metal surface defect detection; Substrate component inspection; Printed character recognition inspection

Model	Size	Power	Price
LS-LNA-60	60 mm	4 W	$119.00	View
LS-LNA-100	100 mm	5 W	$169.00	View
LS-LNA-120	120 mm	6 W	$189.00	View
LS-LNA-150	150 mm	7 W	$229.00	View
LS-LNA-200	200 mm	8 W	$279.00	View
LS-LNA-225	225 mm	10 W	$309.00	View
LS-LNA-234	234 mm	11 W	$319.00	View
LS-LNA-250	250 mm	13 W	$339.00	View
LS-LNA-300	300 mm	15 W	$399.00	View
LS-LNA-340	340 mm	20 W	$439.00	View
LS-LNA-350	350 mm	22 W	$449.00	View
LS-LNA-400	400 mm	25.6 W	$509.00	View
LS-LNA-500	500 mm	27 W	$619.00	View
LS-LNA-520	520 mm	29 W	$649.00	View
LS-LNA-600	600 mm	31 W	$739.00	View
LS-LNA-660	660 mm	35 W	$799.00	View
LS-LNA-1100	1100 mm	58 W	$1,299.00	View

LS-COX series · 9 models · from $389.00

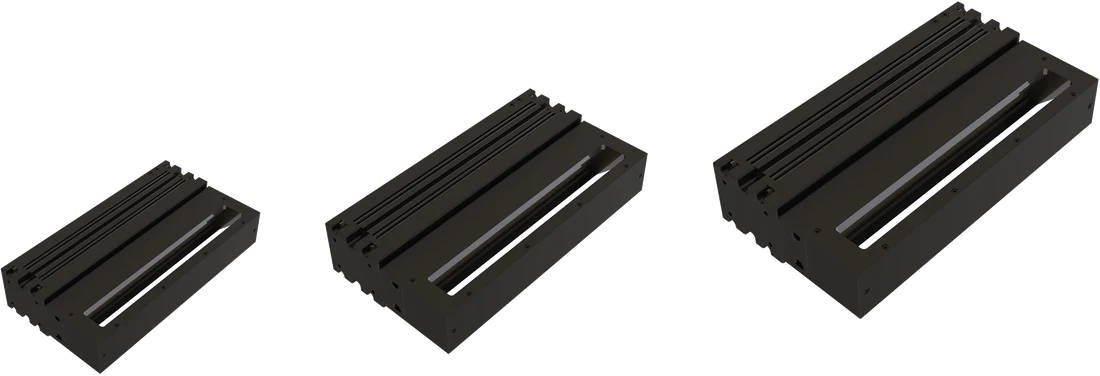

Coaxial line scan light (COX)

High-speed, large-format, high-brightness coaxial illumination.
High-efficiency optical structure.
Compatible with surface inspection of both glossy and matte workpiece.
Highly directional illumination, reduces divergence and enhances inspection effectiveness.

Typical uses: Substrate component inspection; Separator appearance check; Touch panel damage/dent detection

Model	Size	Power	Price
LS-COX-100	100 mm	38 W	$389.00	View
LS-COX-150	150 mm	58 W	$519.00	View
LS-COX-200	200 mm	58 W	$649.00	View
LS-COX-250	250 mm	68 W	$779.00	View
LS-COX-300	300 mm	68 W	$919.00	View
LS-COX-400	400 mm	110 W	$1,179.00	View
LS-COX-600	600 mm	180 W	$1,709.00	View
LS-COX-700	700 mm	210 W	$1,969.00	View
LS-COX-900	900 mm	260 W	$2,499.00	View

LS-LNP series · 8 models · from $849.00

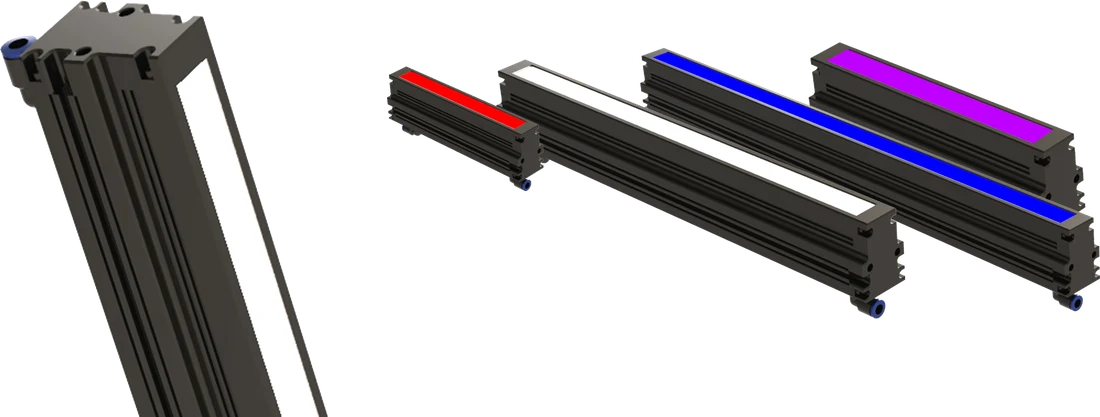

Line scan light with water cooling (LNP)

Adopts a close arrangement of high-power LEDs, high brightness uniform light emission.
Water-cooled structure for heat dissipation.
With temperature control switch protection mechanism, effectively preventing damage to the light because of high temperature.

Typical uses: PCB inspection; High-speed projects; OCR/barcode

Model	Size	Power	Price
LS-LNP-300	300 mm	200 W	$849.00	View
LS-LNP-400	400 mm	250 W	$1,099.00	View
LS-LNP-500	500 mm	300 W	$1,339.00	View
LS-LNP-600	600 mm	350 W	$1,589.00	View
LS-LNP-700	700 mm	400 W	$1,829.00	View
LS-LNP-800	800 mm	450 W	$2,079.00	View
LS-LNP-900	900 mm	500 W	$2,329.00	View
LS-LNP-1000	1000 mm	600 W	$2,569.00	View

LS-LNS series · 8 models · from $219.00

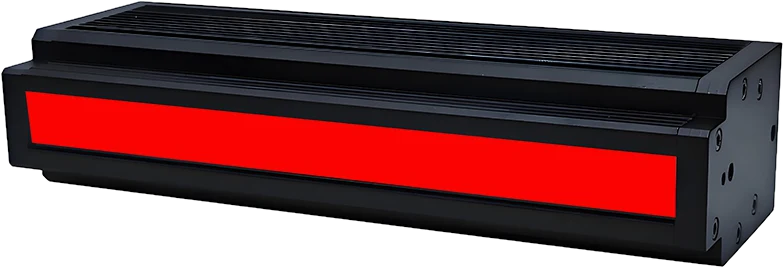

Line scan light with natural cooling (LNS)

High uniformity & parallelism, perfectly match to line scan camera.
Light weight, good heat dissipation, high brightness.
High cost performance, compact size, suitable for batch use.
Fan-less natural cooling type, suitable for dust-free room.
Can be used as direct light or backlight.

Typical uses: PCB circuit inspection; Screen surface (LCD, TP) scratch/stain detection; Lithium battery surface defect/size inspection

Model	Size	Power	Price
LS-LNS-100	100 mm	20 W	$219.00	View
LS-LNS-200	200 mm	34 W	$369.00	View
LS-LNS-300	300 mm	53 W	$529.00	View
LS-LNS-400	400 mm	68 W	$679.00	View
LS-LNS-500	500 mm	87 W	$829.00	View
LS-LNS-600	600 mm	101 W	$979.00	View
LS-LNS-700	700 mm	116 W	$1,129.00	View
LS-LNS-800	800 mm	135 W	$1,279.00	View

LS-STN series · 4 models · from $409.00

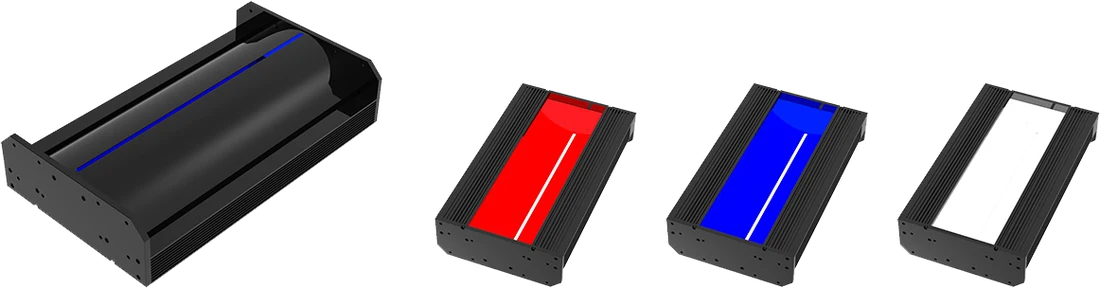

Tunnel line scan light (STN)

High brightness meets high-speed inspection requirements.
Better uniformity, suitable for uneven and large-area reflective inspection.
Superior heat dissipation design ensures long-term stability of the light.

Typical uses: Surface irregularity defect detection; PCB substrate inspection; Printed surface inspection

Model	Size	Power	Price
LS-STN-120X60	120 mm	9.5 W	$409.00	View
LS-STN-200	200 mm	65 W	$609.00	View
LS-STN-250	250 mm	95 W	$729.00	View
LS-STN-400	400 mm	125 W	$1,099.00	View

LS-LNC series · 1 models · from $199.00

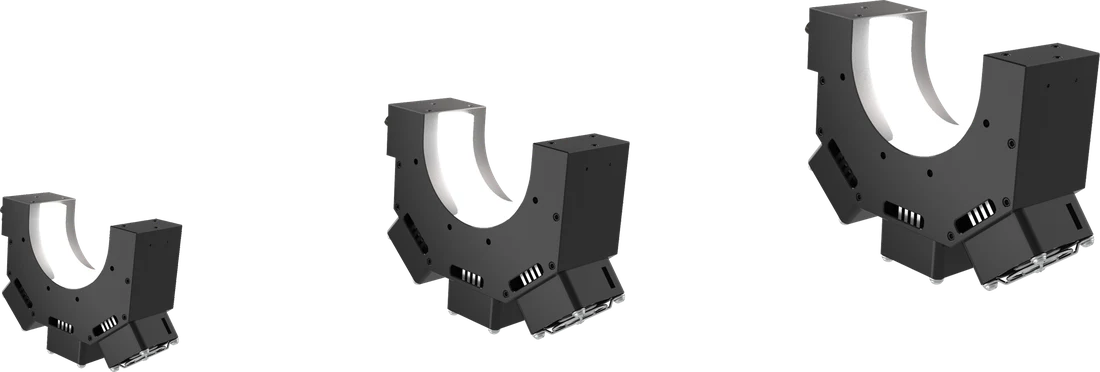

C-shaped line scan light (LNC)

Using a tight arrangement of high-power LEDs, high brightness and uniformity.
Utilizing fan-cooling, ensuring even temperature distribution and excellent cooling performance.
Adopting a semicircular light-emitting surface, large light-emitting angle and wide coverage.

Typical uses: Semiconductor material edge inspection; Arc edge defect detection; Cylindrical product surface defect

Model	Size	Power	Colours	Price
LS-LNC-60	60 mm	58 W		$199.00	View
