Light controllers
Light controllers power and dim your LED lights and sync them to the camera trigger. Analog controllers use a knob; digital controllers add per-channel brightness settings, strobe and serial control from the PC or PLC.
LS-DPC series · 18 models · from $209.00
Digital controller (DPC)
- 256 levels digital control
- Support RS232 communication
- Memory function while power off
- Overload protection function
- High speed optocoupler isolation trigger
| Model | Size | Power | Colours | Price | |
|---|---|---|---|---|---|
| LS-DPC2430-2H | 2 ch, 10-24V | 30 W | $209.00 | View | |
| LS-DPC2465-2H | 2 ch, 16-24V | 60 W | $219.00 | View | |
| LS-MDPC2480-2H | 2 ch, 16-24V | 79 W | $229.00 | View | |
| LS-DPC24125-2H | 2 ch, 16-24V | 125 W | $249.00 | View | |
| LS-DPC24200-2H | 2 ch, 16-24V | 192 W | $269.00 | View | |
| LS-DPC2465-4H | 4 ch, 16-24V | 60 W | $279.00 | View | |
| LS-DPC2405-4H | 4 ch, 5-24V | 84 W | $289.00 | View | |
| LS-MDPC2480-4H | 4 ch, 16-24V | 79 W | $289.00 | View | |
| LS-DPC24125-4H | 4 ch, 16-24V | 125 W | $309.00 | View | |
| LS-DPC24200-4H | 4 ch, 16-24V | 192 W | $339.00 | View | |
| LS-DPC2465-6H | 6 ch, 16-24V | 60 W | $349.00 | View | |
| LS-DPC24125-6H | 6 ch, 16-24V | 125 W | $369.00 | View | |
| LS-DPC24200-6H | 6 ch, 16-24V | 192 W | $399.00 | View | |
| LS-DPC2465-8H | 8 ch, 16-24V | 60 W | $409.00 | View | |
| LS-DPC24125-8H | 8 ch, 16-24V | 125 W | $439.00 | View | |
| LS-DPC24200-8H | 8 ch, 16-24V | 192 W | $459.00 | View | |
| LS-DPC24500-4H | 4 ch, 16-24V | 504 W | $469.00 | View | |
| LS-DPC24380-12H | 12 ch, 16-24V | 384 W | $669.00 | View |
LS-APC-HP series · 6 models · from $309.00

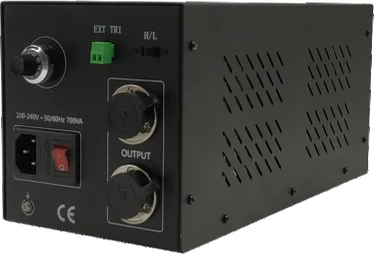

High-power analog controller (APC)
- Stepless knob precisely adjusts the brightness
- High speed optocoupler isolation trigger
- Two channels are controlled independently
| Model | Size | Power | Colours | Price | |
|---|---|---|---|---|---|
| LS-APC24400-2H | 2 ch, 0-24V | 396 W | $309.00 | View | |
| LS-APC24400-1H | 2 ch, 0-24V | 396 W | $309.00 | View | |
| LS-APC24500-1H | 2 ch, 0-24V | 480 W | $349.00 | View | |
| LS-APC48400-2H | 4 ch, 0-48V | 403 W | $369.00 | View | |
| LS-APC48550-1H | 4 ch, 0-48V | 552 W | $429.00 | View | |
| LS-APC481600-2H | 4 ch, 0-48V | 1632 W | $909.00 | View |
LS-APC series · 4 models · from $109.00

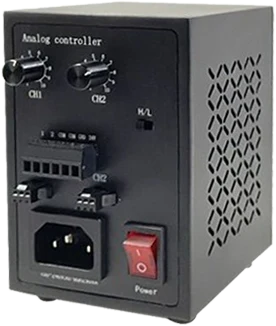

Analog controller (APC)
- Stepless knob to adjust the brightness
- With the switch to control the on/off of the light
- Trigger function
- Two channels are controlled independently
| Model | Size | Power | Colours | Price | |
|---|---|---|---|---|---|
| LS-APC2424-2H | 2 ch, 0-24V | 24 W | $109.00 | View | |
| LS-APC2430-2H | 2 ch, 0-24V | 30 W | $109.00 | View | |
| LS-APC2460-4H | 4 ch, 0-24V | 60 W | $149.00 | View | |
| LS-APC24120-4H | 4 ch, 0-24V | 120 W | $169.00 | View |
LS-ACC series · 2 models · from $129.00

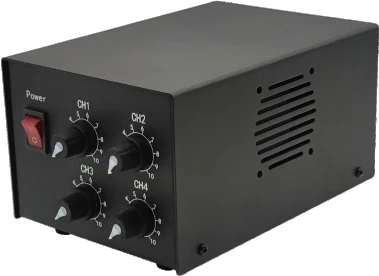

Constant current controller (ACC) for spot lights
- Stepless knob to adjust the brightness
- Channels controlled independently
- 0-680mA constant current control
Typical uses: Power supply to spot lights
| Model | Size | Power | Colours | Price | |
|---|---|---|---|---|---|
| LS-MACC515-2H | 2 ch, 5V | 8 W | $129.00 | View | |
| LS-ACC515-4H | 4 ch, 5V | 14 W | $169.00 | View |
LS-DPC-HP series · 2 models · from $359.00

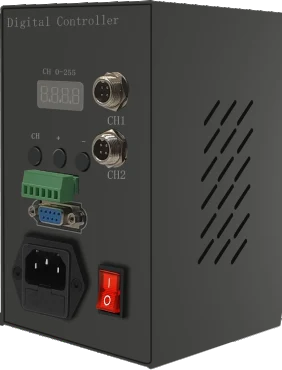

High-power digital controller (DPC, 48V)
- 256 levels digital control
- Support RS232 communication
- Memory function while power off
- Overload protection function
- High speed optocoupler isolation trigger
| Model | Size | Power | Colours | Price | |
|---|---|---|---|---|---|
| LS-DPC48150-2H | 2 ch, 22-48V | 154 W | $359.00 | View | |
| LS-DPC48500-2H | 2 ch, 16-48V | 504 W | $569.00 | View |
SOYO series · 1 models · from $269.00
Light controllers
- 4 independent 24 V outputs, 120 W total
- 256-step PWM dimming per channel
- Strobe and on/off trigger inputs for camera sync
- Front-panel keys plus serial control; DIN-rail or screw mount
| Model | Size | Power | Colours | Price | |
|---|---|---|---|---|---|
| HDPS24120C-4T | $269.00 | View |
