Home / Ring lights

Ring lights

Ring lights mount around the lens for even, on-axis illumination of the inspection area. High-angle rings light flat parts brightly; low-angle rings graze the surface to pick out engraving, embossing, scratches and edges.

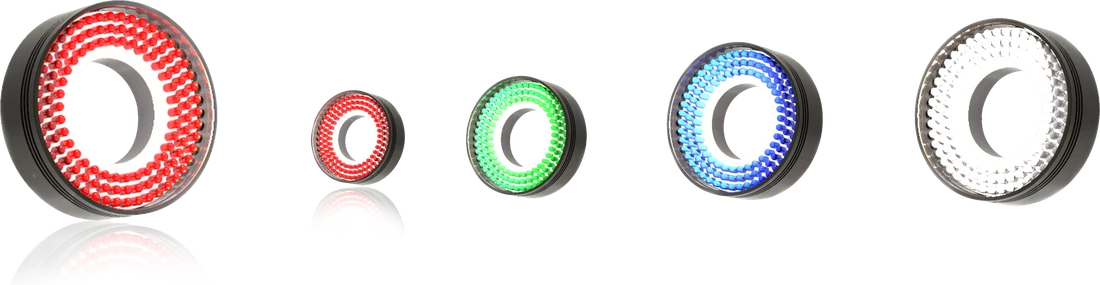

Ring light (HLR)

LS-HLR series · 47 models · from $69.00

Ring light (HLR)

  • Angles customizable to requirements.
  • Wavelength and color temperature are optional, and different color combinations are also available.
  • Compact design, easy installation.
  • High-density LED array for even brightness.
  • Optional diffuser for uniform light.

Typical uses: Size/recognition; Microscope illumination; LCD calibration

ModelSizePowerColoursPrice
LS-HLR-32-7032 mm OD1.5 W $69.00 View
LS-HLR-35-9035 mm OD2 W $69.00 View
LS-HLR-42-6542 mm OD1.7 W $79.00 View
LS-HLR-50-4550 mm OD2 W $89.00 View
LS-HLR-50-6050 mm OD2.5 W $89.00 View
LS-HLR-50-7550 mm OD2.5 W $89.00 View
LS-HLR-50-9050 mm OD2.5 W $89.00 View
LS-HLR-48-3048 mm OD2.5 W $89.00 View
LS-HLR-50-3050 mm OD3 W $89.00 View
LS-HLR-60-6060 mm OD2.5 W $109.00 View
LS-HLR-66-6060 mm OD4 W $109.00 View
LS-HLR-70-4570 mm OD6 W $119.00 View
LS-HLR-70-6070 mm OD4.5 W $119.00 View
LS-HLR-70-9070 mm OD4.6 W $119.00 View
LS-HLR-72-7572 mm OD5 W $119.00 View
LS-HLR-66-3066 mm OD4 W $119.00 View
LS-HLR-74-6074 mm OD6 W $129.00 View
LS-HLR-74-3074 mm OD4.5 W $129.00 View
LS-HLR-75-0075 mm OD2 W $129.00 View
LS-HLR-90-4590 mm OD8 W $149.00 View
LS-HLR-90-7090 mm OD8 W $149.00 View
LS-HLR-90-8090 mm OD12.5 W $149.00 View
LS-HLR-90-1590 mm OD6 W $149.00 View
LS-HLR-100-75100 mm OD9.5 W $159.00 View
LS-HLR-100-90100 mm OD10 W $159.00 View
LS-HLR-96-0096 mm OD3.5 W $159.00 View
LS-HLR-100-30100 mm OD7.5 W $159.00 View
LS-HLR-110-60110 mm OD13 W $179.00 View
LS-HLR-114-80114 mm OD14.5 W $179.00 View
LS-HLR-120-45120 mm OD16 W $189.00 View
LS-HLR-120-50120 mm OD16 W $189.00 View
LS-HLR-120-75120 mm OD16 W $189.00 View
LS-HLR-120-90120 mm OD16 W $189.00 View
LS-HLR-120-30120 mm OD10 W $189.00 View
LS-HLR-132-15132 mm OD12 W $209.00 View
LS-HLR-140-70140 mm OD18 W $219.00 View
LS-HLR-150-90150 mm OD22 W $229.00 View
LS-HLR-146-00146 mm OD4.5 W $229.00 View
LS-HLR-150-30150 mm OD18.5 W $229.00 View
LS-HLR-164-70164 mm OD23 W $249.00 View
LS-HLR-180-60180 mm OD26 W $269.00 View
LS-HLR-180-80180 mm OD26 W $269.00 View
LS-HLR-176-00176 mm OD6 W $269.00 View
LS-HLR-180-30180 mm OD22 W $269.00 View
LS-HLR-210-60210 mm OD31 W $309.00 View
LS-HLR-206-00206 mm OD8 W $309.00 View
LS-HLR-208-25208 mm OD18.5 W $309.00 View

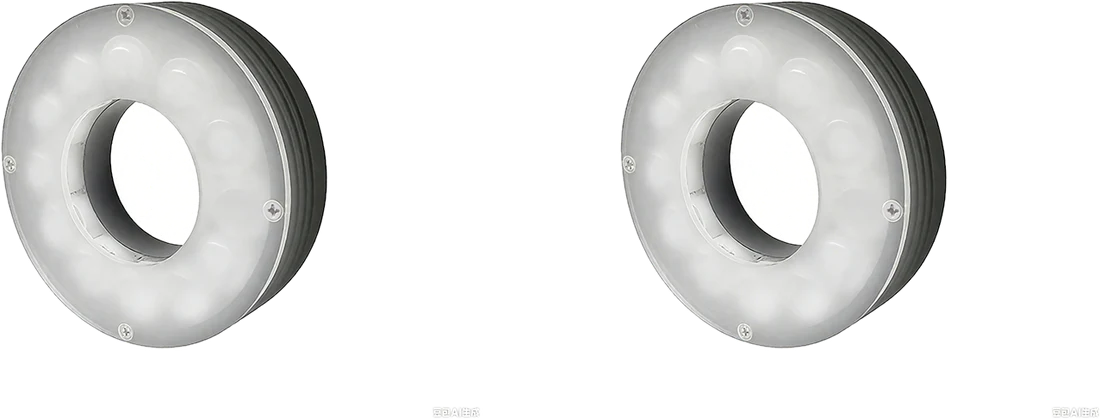

High power ring light (PLR)

LS-PLR series · 6 models · from $199.00

High power ring light (PLR)

  • Designed by the high power LED array, supported by a condenser lens, so more light beam, higher brightness.
  • Can achieve long-distance high brightness lighting.

Typical uses: Remote shooting lighting; High-speed motion shooting lighting; Medical lighting

ModelSizePowerColoursPrice
LS-PLR-75-9075 mm OD4.6 W $199.00 View
LS-PLR-100-90100 mm OD9.1 W $259.00 View
LS-PLR-120-90120 mm OD9.1 W $299.00 View
LS-PLR-150-90150 mm OD18.2 W $369.00 View
LS-PLR-220-90220 mm OD22.8 W $519.00 View
LS-PLR-300-90300 mm OD27.4 W $689.00 View

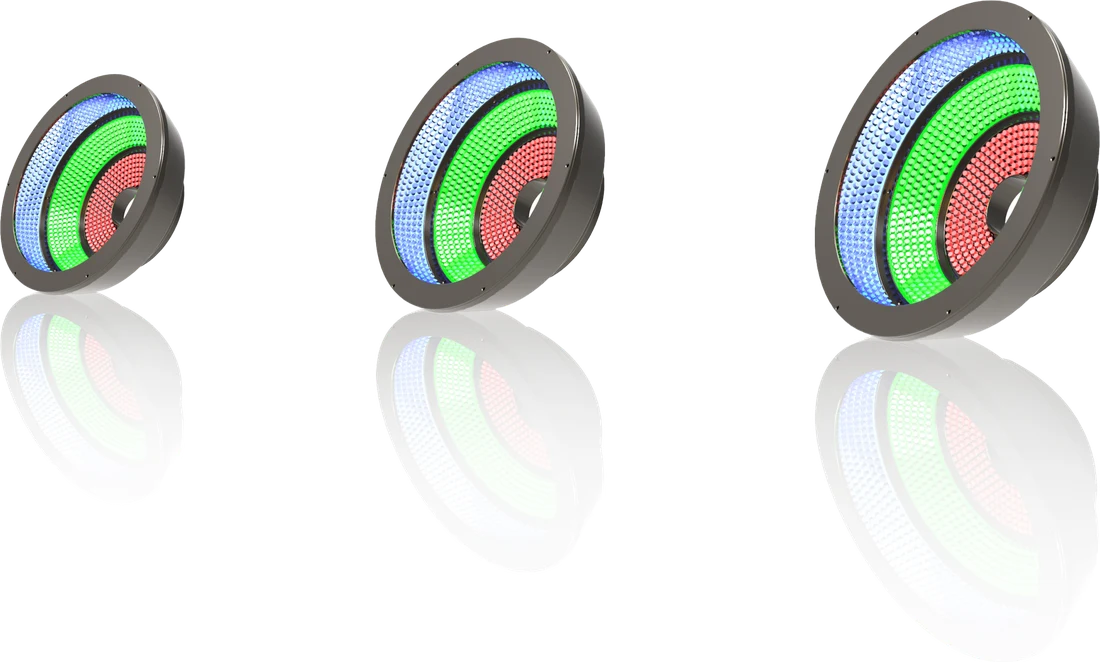

AOI light (AOI)

LS-AOI series · 4 models · from $309.00

AOI light (AOI)

  • Multi-color, multi-angle illumination.
  • Accurately highlights surface texture/layer information of objects.

Typical uses: PCB solder inspection; Multi-level surface defect detection

ModelSizePowerColoursPrice
LS-AOI-7373 mm OD6 W $309.00 View
LS-AOI-122123.4 mm OD7.5 W $479.00 View
LS-AOI-198198 mm OD23 W $729.00 View
LS-AOI-268268 mm OD31 W $969.00 View
