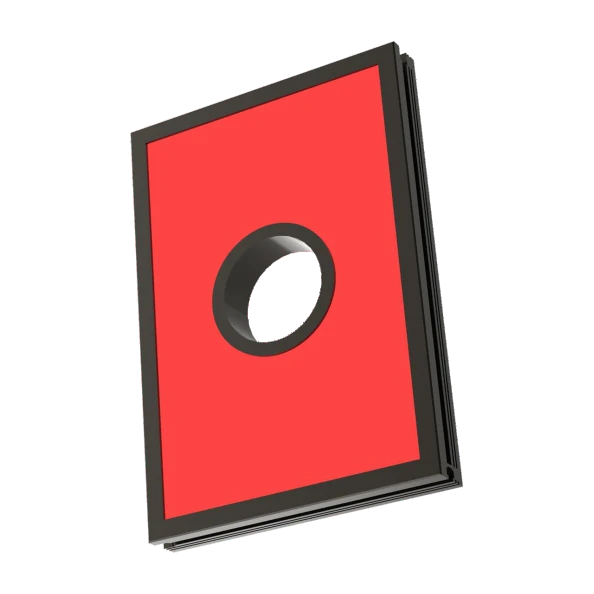

110 x 110 mm Through-Hole LED Backlight (LS-2BCK-110X110-D40)
Model LS-2BCK-110X110-D40
110 x 110 mm Through-Hole LED Backlight. Bottom-lit backlight (LED + diffuser) with a round central through-hole for viewing through the light, in a finned heat-dissipation housing 21-27 mm thick.
Features
- Ultra-thin design, with customizable hole size, shape, dimension and position.
- Achieves uniform illumination over a large area.
- High-precision, large-area product size measurement using parallel backlighting.
Specifications
| Model | LS-2BCK-110X110-D40 |
|---|---|
| Voltage (V) | 24 |
| Power R (W) | 8 |
| Power W/B/G (W) | 13 |
| Hole size (mm) | Φ40 |
| Emitting area (mm) | 110x110 |
| Outer size LxWxH (mm) | 124x124x21 |
| Colours | Red, Green, Blue, White |

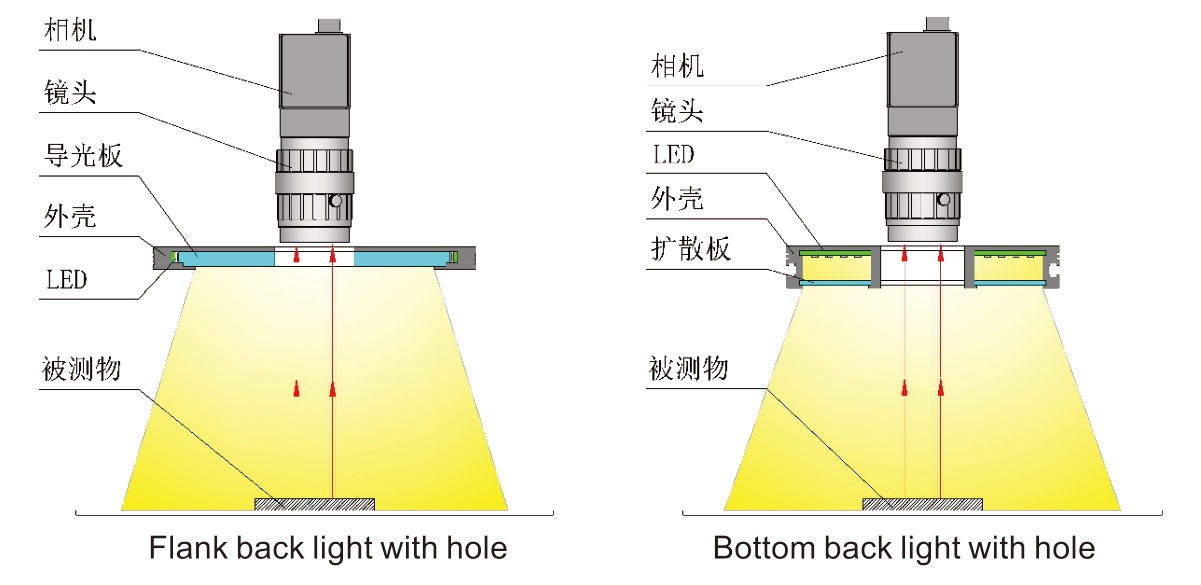

| Construction (setup diagram) | LED / housing / diffuser plate |
| Mounting | M3 tapped holes on back (qty per model drawing); side M3 nut slots |
| Heat sink | Finned heat-dissipation profile |
| Shipping weight (estimated) | 0.55 kg |

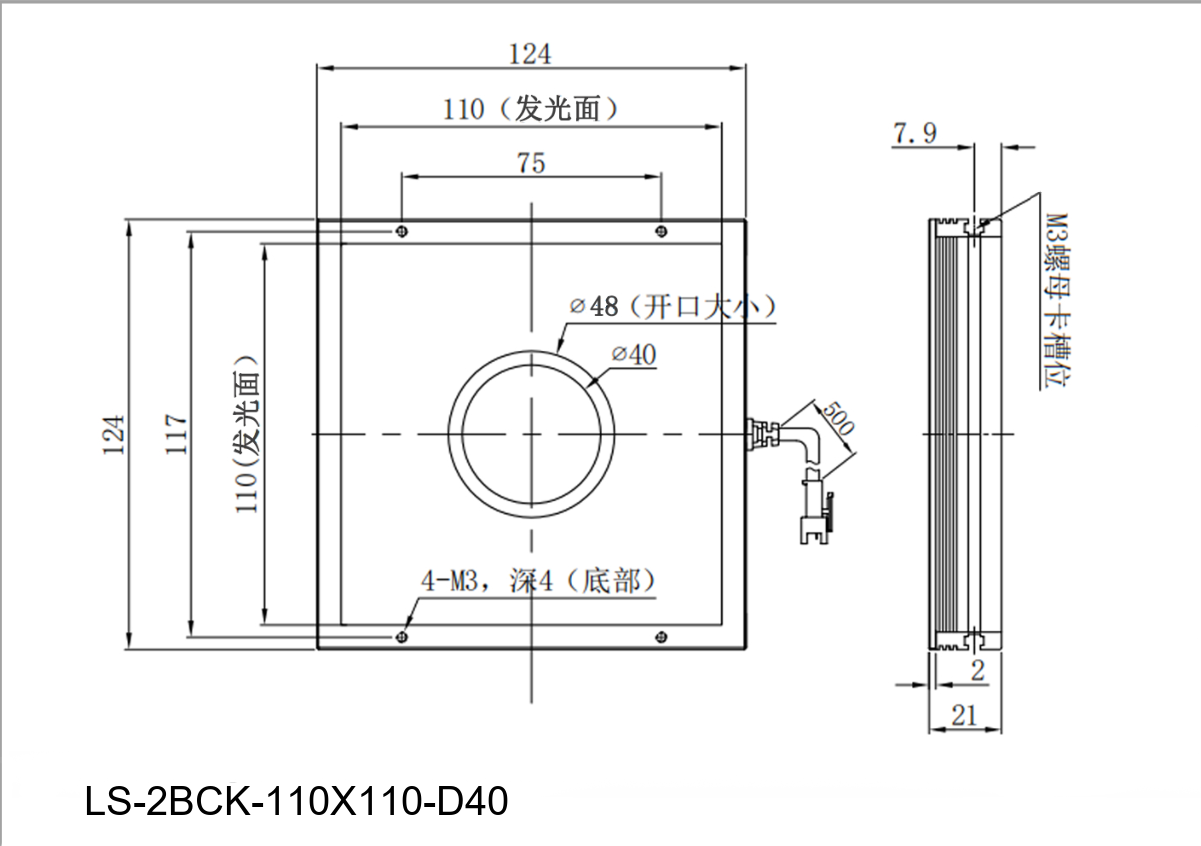

Mounting and drawing data
drawing: outer 124x124x21, hole Φ40 (opening Φ48), 4-M3 depth 4 (bottom) at 75 x 117, side M3 nut slot, cable 500
Applications
- Large size product positioning, high uniformity recognition scenarios, various size measurements, transmission-based detection of presence/absence.
- PCB board fiducial mark positioning
- Keyboard character inspection
- Electronic product QR code detection
- Chip quantity inspection
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
Light controllers LensesSelection guideOther sizes in the Bottom Back Light with Hole (2BCK series) series

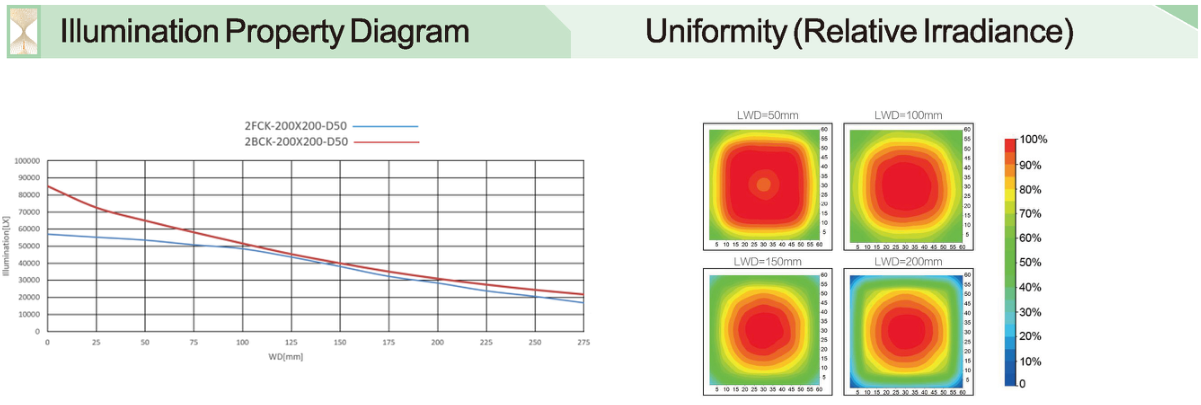

| Model | Size | Power | Colours | Price | |
|---|---|---|---|---|---|
| LS-2BCK-200X100-D40 | 200 x 100 mm | 16 W | $169.00 | View | |
| LS-2BCK-150X150-D45 | 150 x 150 mm | 21 W | $179.00 | View | |
| LS-2BCK-200X200-D50 | 200 x 200 mm | 27 W | $249.00 | View | |
| LS-2BCK-300X200-D40 | 300 x 200 mm | 40 W | $339.00 | View | |
| LS-2BCK-300X200-D60 | 300 x 200 mm | 40 W | $339.00 | View | |
| LS-2BCK-400X200-D50 | 400 x 200 mm | 54 W | $419.00 | View | |
| LS-2BCK-300X300-D50 | 300 x 300 mm | 65 W | $459.00 | View | |
| LS-2BCK-300X300-D60 | 300 x 300 mm | 64 W | $459.00 | View | |
| LS-2BCK-400X300-D60 | 400 x 300 mm | 80 W | $579.00 | View | |
| LS-2BCK-400X400-D50 | 400 x 400 mm | 108 W | $749.00 | View | |
| LS-2BCK-400X400-D65 | 400 x 400 mm | 108 W | $749.00 | View |
