Coaxial lights

Coaxial lights send light down the camera's own axis through a beam splitter, so flat mirror-like surfaces - wafers, polished metal, printed foil, labels under film - image evenly without glare or hot spots.

LS-CON series · 17 models · from $69.00

Coaxial light (CON series)

Special optical beam splitter without shadow
Higher brightness solutions available for the same size
High uniformity
Compact design with flexible installation

Typical uses: Scratch detection on metal/glass; QR code inspection; Silkscreen alignment

Model	Size	Power	Price
LS-CON-20	20 x 20 mm	3 W	$69.00	View
LS-CON-30	30 x 30 mm	3.5 W	$89.00	View
LS-CON-35	35 x 35 mm	3.6 W	$99.00	View
LS-CON-40	40 x 40 mm	5.5 W	$109.00	View
LS-CON-50	50 x 50 mm	6.5 W	$129.00	View
LS-2CON-50	50 x 50 mm	7.2 W	$129.00	View
LS-CON-60	60 x 60 mm	10.8 W	$159.00	View
LS-2CON-60	60 x 60 mm	12.5 W	$159.00	View
LS-CON-70	70 x 70 mm	7 W	$189.00	View
LS-CON-80	80 x 80 mm	7 W	$219.00	View
LS-2CON-80	80 x 80 mm	17.3 W	$219.00	View
LS-CON-100	100 x 100 mm	22 W	$289.00	View
LS-2CON-100	100 x 100 mm	21.6 W	$289.00	View
LS-CON-120	126 x 126 mm	18 W	$399.00	View
LS-CON-150X120	150 x 120 mm	21 W	$509.00	View
LS-CON-200X180	200 x 180 mm	46 W	$789.00	View
LS-CON-240X180	240 x 180 mm	56 W	$1,059.00	View

LS-CONH series · 6 models · from $129.00

High power coaxial light (CONH series)

Fan cooling, with high power LED, high brightness
For inspection of shots in motion or short exposure products

Typical uses: Scratch inspection of metal or plastic surfaces; Indentation or defect inspection of reflective surfaces; Motor centre location inspection

Model	Size	Power	Price
LS-CONH-30	30 x 30 mm	8.7 W	$129.00	View
LS-CONH-40	40 x 40 mm	9 W	$159.00	View
LS-CONH-50	50 x 50 mm	14.4 W	$189.00	View
LS-CONH-60	60 x 60 mm	22 W	$229.00	View
LS-CONH-80	80 x 80 mm	44 W	$319.00	View
LS-CONH-100	100 x 100 mm	65 W	$429.00	View

LS-CONR series · 4 models · from $89.00

Ring angle coaxial light (CONR series)

90 degrees between ray and CCD camera, compact structure
Compact, space saving
High uniformity and high luminance

Typical uses: QR code reading; Steel plate contour inspection; Metal surface defect inspection

Model	Size	Power	Price
LS-CONR-26	26 x 26 mm	3 W	$89.00	View
LS-CONR-40	40 x 40 mm	6 W	$129.00	View
LS-CONR-67	67 x 67 mm	12 W	$209.00	View
LS-CONR-80	80 x 80 mm	12 W	$259.00	View

LS-CONP series · 3 models · from $119.00

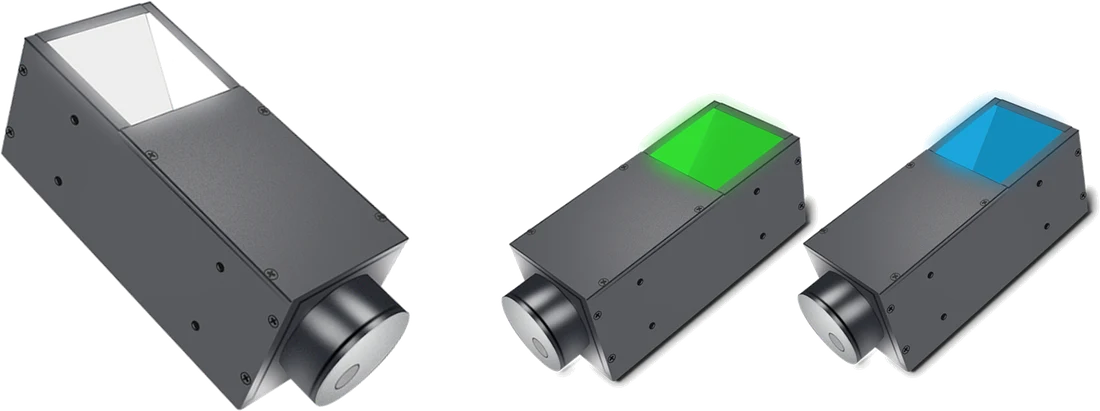

Collimated coaxial light (CONP series)

Achieving parallel light illumination
Suppressing light diffraction to achieve high-precision imaging

Typical uses: Size measurement; Cylinder dimension check; Detection of fine burrs

Model	Size	Power	Price
LS-CONP-30	30 x 30 mm	4.5 W	$119.00	View
LS-CONP-40	40 x 40 mm	4.5 W	$149.00	View
LS-CONP-60	60 x 60 mm	4.5 W	$219.00	View
