400 x 300 mm Edge-Lit Through-Hole LED Backlight (LS-FCK-400X300-D50)
Model LS-FCK-400X300-D50
400 x 300 mm Edge-Lit Through-Hole LED Backlight. Edge-lit backlight (LED + light-guide plate) with a central through-hole so the camera looks through the light onto the part below; square (T) or round (D) hole, 9.5 mm thick.
Features
- Ultra-thin design, with customizable hole size, shape, dimension and position.
- Achieves uniform illumination over a large area.
- High-precision, large-area product size measurement using parallel backlighting.
Specifications
| Model | LS-FCK-400X300-D50 |
|---|---|
| Voltage (V) | 24 |
| Power R (W) | 21.4 |
| Power W/B/G (W) | 32 |
| Hole size (mm) | Φ50 |
| Emitting area (mm) | 400x300 |
| Outer size LxWxH (mm) | 435x335x9.5 |
| Colours | Red, Green, Blue, White |
| Thickness (mm) | 9.5 |
| Mounting | X-Φ3.2 through holes (installation); 4-6 depth 3 |
| Cable length (mm) | 500 |
| Shipping weight (estimated) | 1.70 kg |

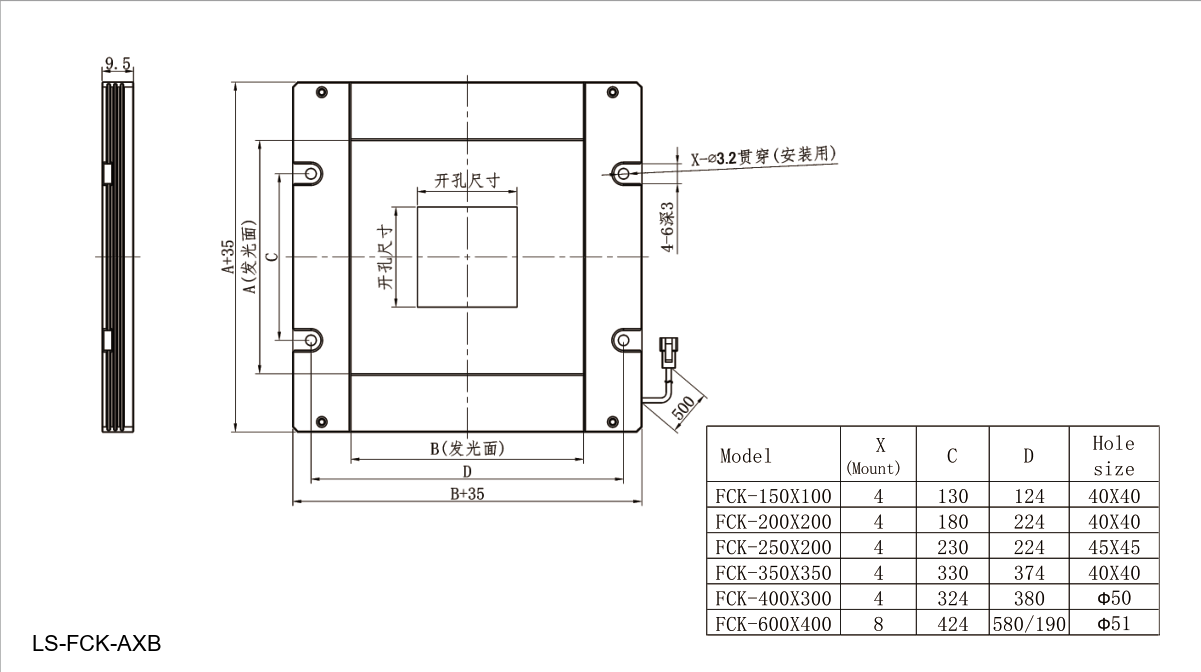

Mounting and drawing data
drawing table (LS-FCK-AXB; X = qty of 3.2 mm through mounting holes): X=4, C=324, D=380, hole size=Φ50
Applications
- Large size product positioning, high uniformity recognition scenarios, various size measurements, transmission-based detection of presence/absence.
- PCB board fiducial mark positioning
- Keyboard character inspection
- Electronic product QR code detection
- Chip quantity inspection
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
Light controllers LensesSelection guideOther sizes in the Flank Back Light with Hole (FCK series) series
| Model | Size | Power | Colours | Price | |
|---|---|---|---|---|---|
| LS-FCK-150X100-T40 | 150 x 100 mm | 11 W | $149.00 | View | |
| LS-FCK-200X200-T40 | 200 x 200 mm | 17.5 W | $249.00 | View | |
| LS-FCK-250X200-T45 | 250 x 200 mm | 20 W | $289.00 | View | |
| LS-FCK-350X350-T40 | 350 x 350 mm | 28 W | $589.00 | View | |
| LS-FCK-600X400-D50 | 600 x 400 mm | 54 W | $1,069.00 | View |
