Bar lights
Bar lights are the flexible building block of a vision station: aim one at an angle for dark-field effects, pair two for even side lighting, or use a four-bar square for a large-area ring.
LS-LB series · 57 models · from $59.00

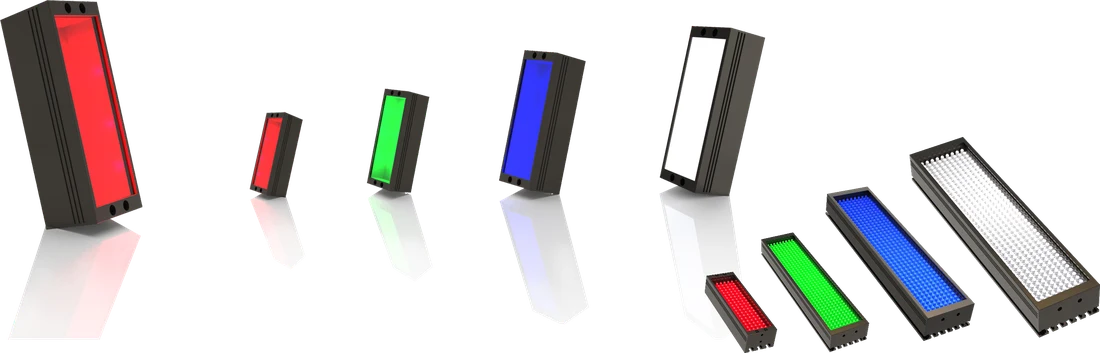

Bar light (LB series)
- Can customize illumination width, length, and size.
- Wavelength and color temperature options available, with combinations of different colors possible.
- Compact design for easy installation.
- Adjustable illumination angle, diffuser plate optional.
Typical uses: Surface defect detection; Image scanning; LCD panel inspection
| Model | Size | Power | Colours | Price | |
|---|---|---|---|---|---|
| LS-LB-40X16 | 40 x 16 mm | 1.5 W | $59.00 | View | |
| LS-2LB-60X16 | 60 x 16 mm | 1.9 W | $69.00 | View | |
| LS-LB-80X16 | 80 x 16 mm | 3 W | $79.00 | View | |
| LS-2LB-90X16 | 90 x 16 mm | 2.9 W | $79.00 | View | |
| LS-LB-74X30 | 74 x 30 mm | 4.5 W | $79.00 | View | |
| LS-LB-86X30 | 86 x 30 mm | 4.5 W | $79.00 | View | |
| LS-LB-74X45 | 74 x 45 mm | 4 W | $79.00 | View | |
| LS-LB-98X30 | 98 x 30 mm | 5 W | $89.00 | View | |
| LS-2LB-100X30 | 100 x 30 mm | 6.3 W | $89.00 | View | |
| LS-LB-119X16 | 120 x 16 mm | 5.5 W | $99.00 | View | |
| LS-2LB-120X16 | 120 x 16 mm | 3.8 W | $99.00 | View | |
| LS-LB-146X30 | 146 x 30 mm | 7.5 W | $109.00 | View | |
| LS-LB-160X16 | 160 x 16 mm | 7 W | $119.00 | View | |
| LS-2LB-150X16 | 150 x 16 mm | 4.7 W | $119.00 | View | |
| LS-2LB-150X30 | 150 x 30 mm | 6.6 W | $119.00 | View | |
| LS-2LB-180X16 | 180 x 16 mm | 5.7 W | $129.00 | View | |
| LS-LB-170X30 | 170 x 30 mm | 9 W | $129.00 | View | |
| LS-LB-180X30 | 180 x 30 mm | 9 W | $129.00 | View | |
| LS-LB-197X16 | 197 x 16 mm | 8.5 W | $139.00 | View | |
| LS-LB-194X30 | 194 x 30 mm | 11 W | $139.00 | View | |
| LS-2LB-200X30 | 200 x 30 mm | 12.5 W | $139.00 | View | |
| LS-LB-200X45 | 200 x 45 mm | 19.7 W | $139.00 | View | |
| LS-LB-218X30 | 218 x 30 mm | 13 W | $149.00 | View | |
| LS-2LB-240X16 | 240 x 16 mm | 7.5 W | $159.00 | View | |
| LS-2LB-250X30 | 250 x 30 mm | 15.6 W | $169.00 | View | |
| LS-LB-275X16 | 275 x 16 mm | 11.5 W | $179.00 | View | |
| LS-LB-266X30 | 266 x 30 mm | 16 W | $179.00 | View | |
| LS-2LB-275X30 | 275 x 30 mm | 17.2 W | $179.00 | View | |
| LS-2LB-300X16 | 300 x 16 mm | 9.4 W | $189.00 | View | |
| LS-LB-290X30 | 290 x 30 mm | 18 W | $189.00 | View | |
| LS-2LB-300X30 | 300 x 30 mm | 18.8 W | $189.00 | View | |
| LS-LB-300X45 | 300 x 45 mm | 29.5 W | $189.00 | View | |
| LS-LB-386X30 | 386 x 30 mm | 24 W | $239.00 | View | |
| LS-LB-400X45 | 400 x 45 mm | 38 W | $249.00 | View | |
| LS-LB-434X30 | 434 x 30 mm | 28 W | $259.00 | View | |
| LS-2LB-450X16 | 450 x 16 mm | 14.1 W | $269.00 | View | |
| LS-2LB-450X30 | 450 x 30 mm | 28.1 W | $269.00 | View | |
| LS-LB-500X45 | 500 x 45 mm | 47 W | $299.00 | View | |
| LS-LB-550X45 | 550 x 45 mm | 49 W | $329.00 | View | |
| LS-LB-578X30 | 578 x 30 mm | 35 W | $339.00 | View | |
| LS-2LB-600X16 | 600 x 16 mm | 18.8 W | $349.00 | View | |
| LS-2LB-600X30 | 600 x 30 mm | 37.5 W | $349.00 | View | |
| LS-LB-600X45 | 600 x 45 mm | 57 W | $349.00 | View | |
| LS-LB-700X45 | 700 x 45 mm | 66 W | $399.00 | View | |
| LS-2LB-750X16 | 750 x 16 mm | 23.5 W | $429.00 | View | |
| LS-2LB-750X30 | 750 x 30 mm | 48 W | $429.00 | View | |
| LS-LB-800X45 | 800 x 45 mm | 75 W | $459.00 | View | |
| LS-2LB-900X16 | 900 x 16 mm | 28.2 W | $509.00 | View | |
| LS-2LB-900X30 | 900 x 30 mm | 56.2 W | $509.00 | View | |
| LS-LB-900X45 | 900 x 45 mm | 84.5 W | $509.00 | View | |
| LS-LB-950X45 | 950 x 45 mm | 88 W | $539.00 | View | |
| LS-LB-1000X45 | 1000 x 45 mm | 90 W | $559.00 | View | |
| LS-LB-1100X45 | 1100 x 45 mm | 100 W | $609.00 | View | |
| LS-2LB-1200X30 | 1200 x 30 mm | 74.9 W | $669.00 | View | |
| LS-LB-1200X45 | 1200 x 45 mm | 108 W | $669.00 | View | |
| LS-LB-1300X45 | 1300 x 45 mm | 112 W | $719.00 | View | |
| LS-LB-1400X45 | 1400 x 45 mm | 120 W | $769.00 | View |
LS-HLB series · 14 models · from $129.00

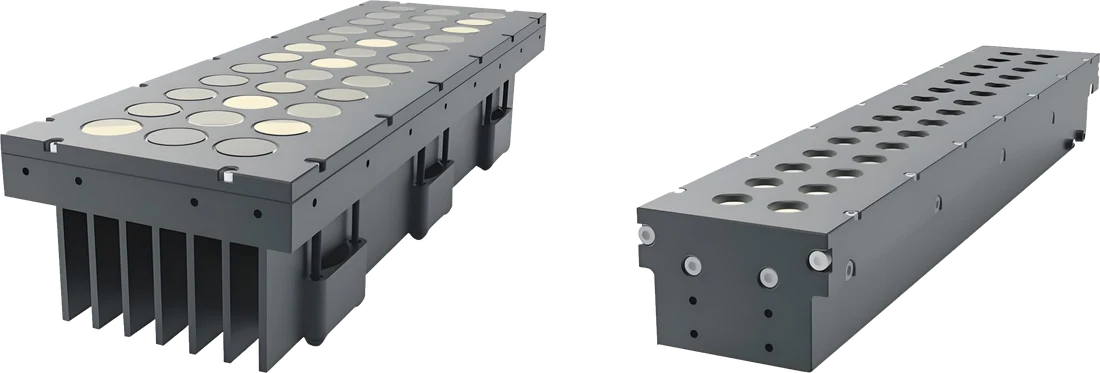

High power bar light (HLB series)
- High power LED used, lighting to long working distance, high brightness.
- Multiple installation method, easy to install.
Typical uses: Long working distance; High speed applications; High brightness required applications
| Model | Size | Power | Colours | Price | |
|---|---|---|---|---|---|
| LS-HLB-100X30 | 100 x 30 mm | 4.6 W | $129.00 | View | |
| LS-HLB-150X16 | 150 x 16 mm | 4.6 W | $169.00 | View | |
| LS-HLB-150X30 | 150 x 30 mm | 9.1 W | $169.00 | View | |
| LS-HLB-300X16 | 300 x 16 mm | 9.1 W | $289.00 | View | |
| LS-HLB-300X30 | 300 x 30 mm | 18.2 W | $289.00 | View | |
| LS-HLB-450X16 | 450 x 16 mm | 13.7 W | $409.00 | View | |
| LS-HLB-450X30 | 450 x 30 mm | 27.4 W | $409.00 | View | |
| LS-HLB-600X16 | 600 x 16 mm | 18.2 W | $519.00 | View | |
| LS-HLB-600X30 | 600 x 30 mm | 36.5 W | $519.00 | View | |
| LS-HLB-750X16 | 750 x 16 mm | 22.8 W | $639.00 | View | |
| LS-HLB-750X30 | 750 x 30 mm | 45.6 W | $639.00 | View | |
| LS-HLB-900X16 | 900 x 16 mm | 27.3 W | $759.00 | View | |
| LS-HLB-900X30 | 900 x 30 mm | 54.7 W | $759.00 | View | |
| LS-HLB-1200X30 | 1200 x 30 mm | 73 W | $999.00 | View |
LS-MLB series · 7 models · from $389.00

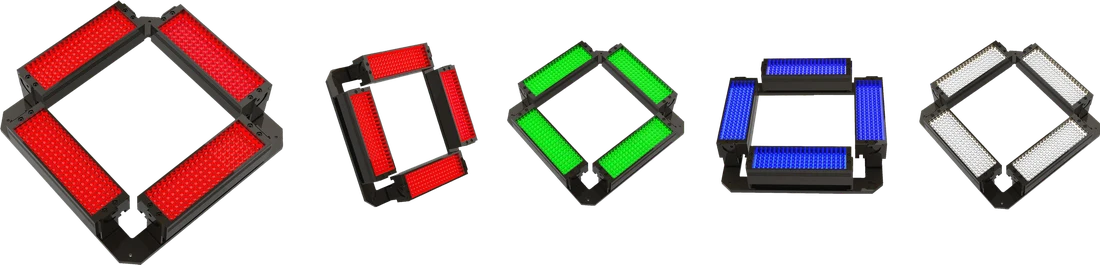

Combined bar light (MLB series)
- Can be customized angle.
- Control each bar light independently.
Typical uses: Large size product defect detection; Character recognition; Positioning
| Model | Size | Power | Colours | Price | |
|---|---|---|---|---|---|
| LS-MLB-40X40 | 40 x 40 mm | 6 W | $389.00 | View | |
| LS-MLB-80X80 | 80 x 80 mm | 12 W | $469.00 | View | |
| LS-MLB-119X119 | 119 x 119 mm | 22 W | $549.00 | View | |
| LS-MLB-98X98 | 98 x 98 mm | 16 W | $559.00 | View | |
| LS-MLB-218X218 | 218 x 218 mm | 52 W | $809.00 | View | |
| LS-MLB-290X290 | 290 x 290 mm | 72 W | $969.00 | View | |
| LS-MLB-386X386 | 386 x 386 mm | 96 W | $1,169.00 | View |
