400 x 300 mm Through-Hole LED Backlight (LS-2BCK-400X300-D60)
Model LS-2BCK-400X300-D60
400 x 300 mm Through-Hole LED Backlight. Bottom-lit backlight (LED + diffuser) with a round central through-hole for viewing through the light, in a finned heat-dissipation housing 21-27 mm thick.
Features
- Ultra-thin design, with customizable hole size, shape, dimension and position.
- Achieves uniform illumination over a large area.
- High-precision, large-area product size measurement using parallel backlighting.
Specifications
| Model | LS-2BCK-400X300-D60 |
|---|---|
| Voltage (V) | 24 |
| Power R (W) | 56 |
| Power W/B/G (W) | 80 |
| Hole size (mm) | Φ60 |
| Emitting area (mm) | 400x300 |
| Outer size LxWxH (mm) | 416x316x27 |
| Colours | Red, Green, Blue, White |
| Construction (setup diagram) | LED / housing / diffuser plate |
| Mounting | M3 tapped holes on back (qty per model drawing); side M3 nut slots |
| Heat sink | Finned heat-dissipation profile |
| Shipping weight (estimated) | 3.25 kg |
Mounting and drawing data

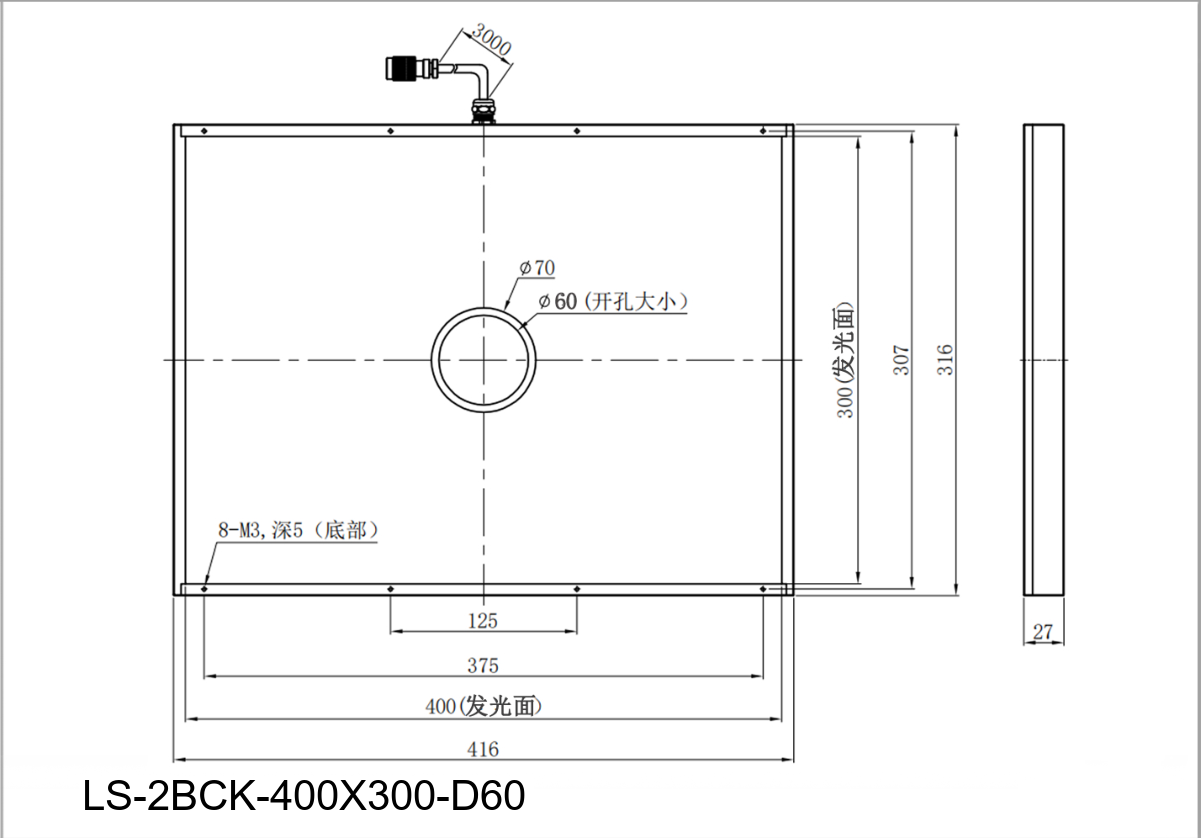

drawing: outer 416x316x27, opening Φ60 / Φ70 ring, 8-M3 depth 5 (bottom) at 125/375 x 307, cable 3000
Applications
- Large size product positioning, high uniformity recognition scenarios, various size measurements, transmission-based detection of presence/absence.
- PCB board fiducial mark positioning
- Keyboard character inspection
- Electronic product QR code detection
- Chip quantity inspection
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
