Shadowless lights
Shadowless lights wrap the part in diffuse light from many angles, removing glare and shadows on shiny, textured or slightly curved parts such as PCBs, connectors and pins.
LS-SHR series · 9 models · from $169.00

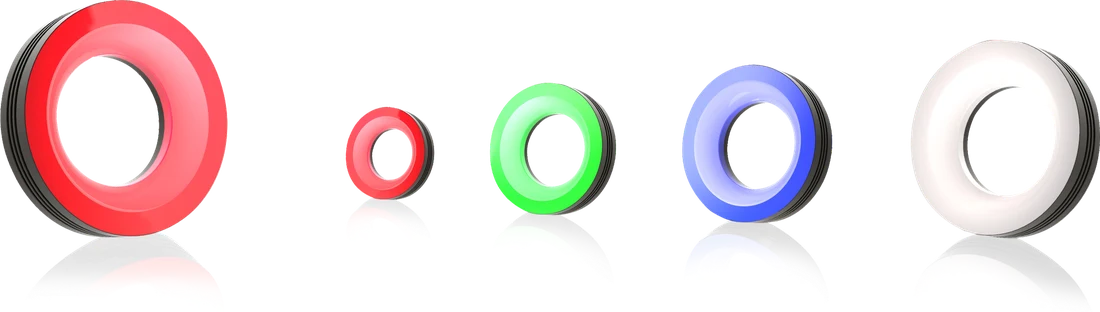

High angle ring shadowless light (SHR series)
- High brightness, high uniformity shadowless illumination.
- Adopting a special illumination structure to ensure full diffusion of LED light.
- Changing the distance from the object being measured to the light source does not alter the uniformity of the illuminated area.
Typical uses: High-reflective product surface defect inspection; Outer packaging inspection; Electronic component wiring inspection
| Model | Size | Power | Colours | Price | |
|---|---|---|---|---|---|
| LS-SHR-80 | 79 mm OD | 7 W | $169.00 | View | |
| LS-2SHR-80 | 80 mm OD | 6.3 W | $169.00 | View | |
| LS-SHR-100 | 116 mm OD | 14 W | $239.00 | View | |
| LS-2SHR-116 | 116 mm OD | 14.3 W | $239.00 | View | |
| LS-SHR-150 | 166 mm OD | 20 W | $329.00 | View | |
| LS-2SHR-166 | 166 mm OD | 26.3 W | $329.00 | View | |
| LS-2SHR-196 | 196 mm OD | 30.9 W | $379.00 | View | |
| LS-2SHR-230 | 230 mm OD | 24.2 W | $439.00 | View | |
| LS-SHR-360 | 359 mm OD | 42 W | $669.00 | View |
LS-SQ series · 8 models · from $59.00

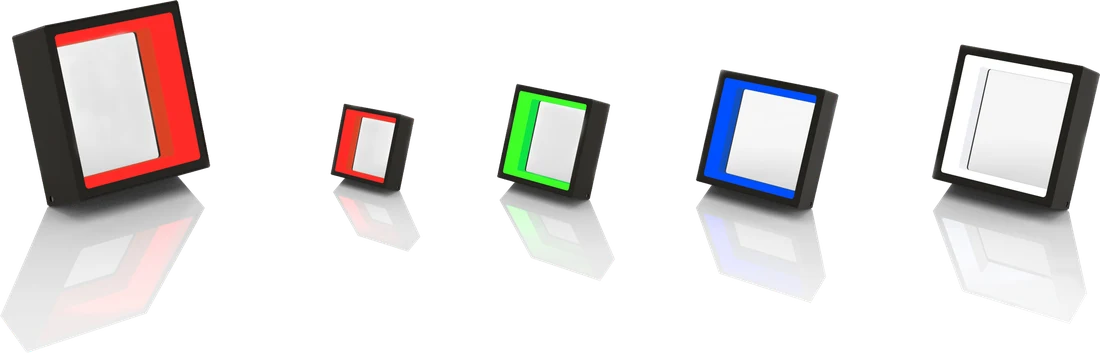

Square shadowless light (SQ series)
- Illumination area can be customized.
- High-brightness, high uniformity.
- Ideal for square-shaped objects.
- Capable of detecting the contours of the four corners that are difficult to illuminate with ring light, and prevents reflective projections.
Typical uses: Print surface defect check; Pin/leg flatness inspection; Metal scratch detection
LS-SLR series · 5 models · from $189.00

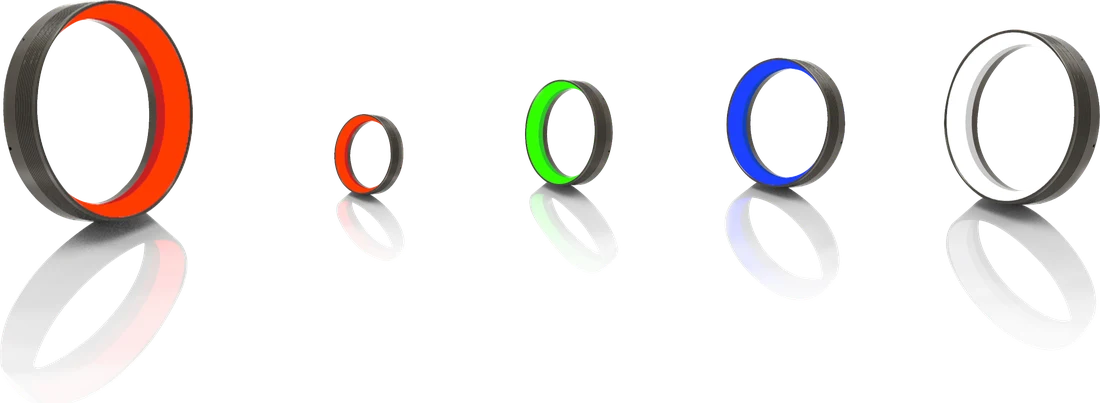

Low angle ring shadowless light (SLR series)
- Good uniformity, suitable for low-angle illumination.
- High-density LEDs arranged vertically with special light-guiding diffusion.
- Reduces reflective glare.
- Efficient low-angle lighting enhances surface features.
Typical uses: Surface damage inspection; IC tape inspection; BGA/QFP position inspection
| Model | Size | Power | Colours | Price | |
|---|---|---|---|---|---|
| LS-SLR-88 | 88 mm OD | 4.5 W | $189.00 | View | |
| LS-SLR-100 | 100 mm OD | 5 W | $209.00 | View | |
| LS-SLR-136 | 136 mm OD | 10 W | $269.00 | View | |
| LS-SLR-180 | 180 mm OD | 13 W | $349.00 | View | |
| LS-SLR-250 | 250 mm OD | 15 W | $479.00 | View |
LS-SR series · 5 models · from $119.00

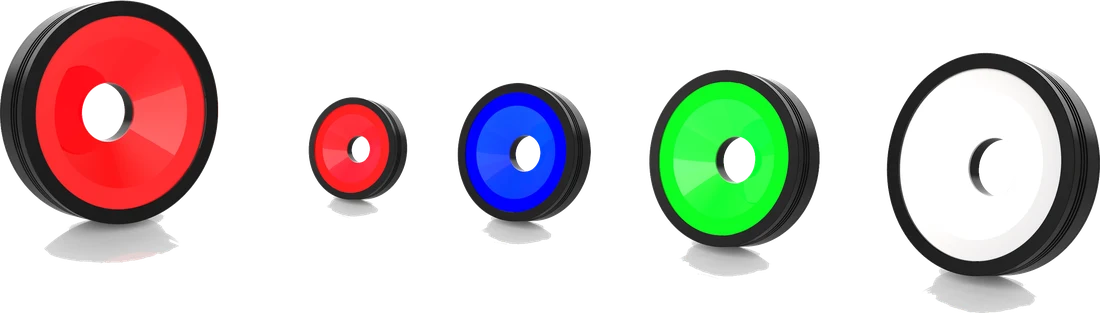

Ring shadowless light (SR series)
- Eliminate reflective interference.
- Provide high-brightness, high-uniformity diffuse illumination.
Typical uses: Curved surface inspection; Label reading; Hardware location/ID
