150 x 150 mm Bottom-Lit Finned LED Backlight (LS-2BC-150X150)
Model LS-2BC-150X150
150 x 150 mm Bottom-Lit Finned LED Backlight. Bottom-lit LED backlight in the BC series family with a finned heat-dissipation profile and side M3 nut slots usable for installation; 21-24 mm thick.
Features
- High-brightness LED array arrangement for achieving uniform plane illumination.
- Large-area uniform illumination for transmissive contour imaging.
Specifications
| Model | LS-2BC-150X150 |
|---|---|
| Voltage (V) | 24 |
| Power R (W) | 17.3 |
| Power W/B/G (W) | 28.8 |
| Emitting area (mm) | 150x150 |
| Outer size LxWxH (mm) | 164x164x21 |
| Colours | Red, Green, Blue, White |
| Mounting | X-M3 depth 4 (installation) on back; M3 nut slots in side profile |
| Heat sink | Finned heat-dissipation profile |
| Cable length (mm) | 500 |
| Shipping weight (estimated) | 0.80 kg |
Mounting and drawing data

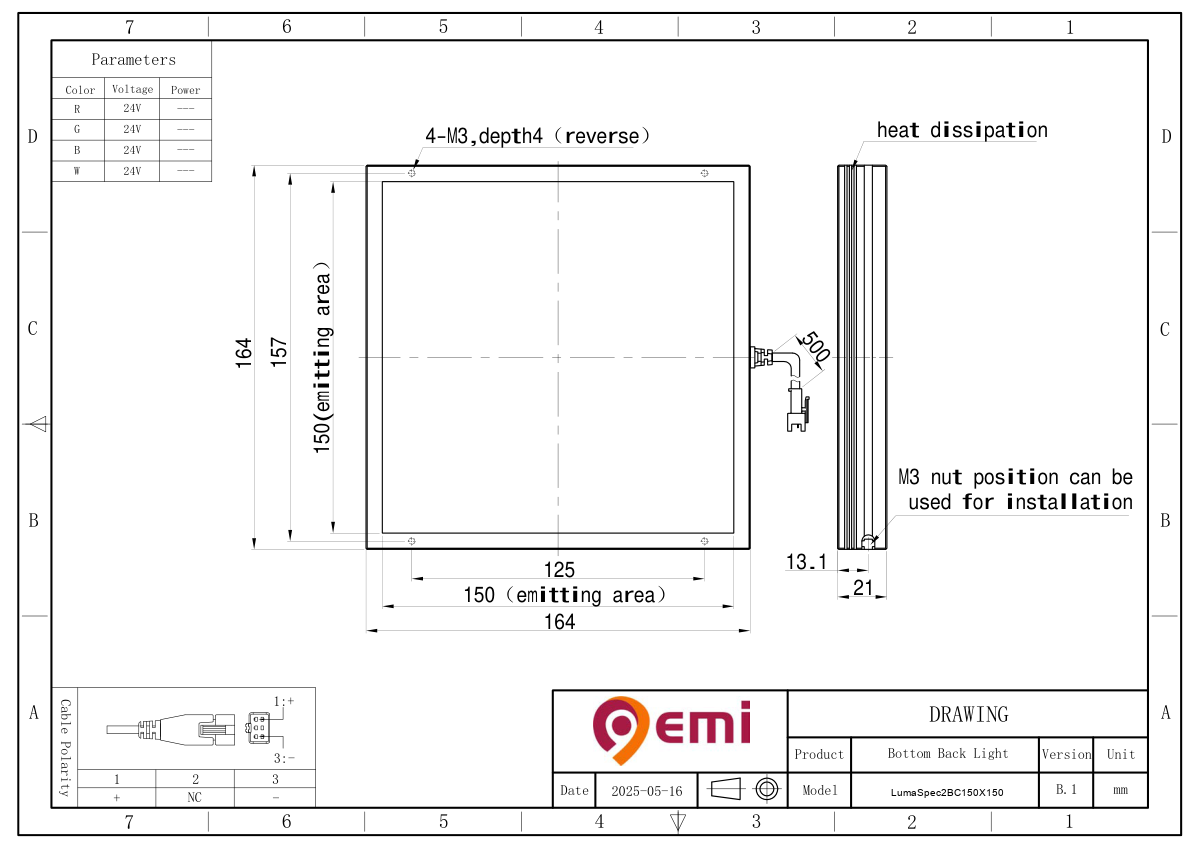

drawing table (LS-2BC-AXB; X = qty of M3 depth-4 mounting holes, E = thickness): X=4, C=125, D=157, E=21
Applications
- Various size measurements, electronic component/IC outline inspection, film spot detection.
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
Light controllers LensesSelection guideOther sizes in the Bottom Back Light (2BC, BC series) series
