200 x 150 mm Bottom-Lit LED Backlight (LS-BC-200X150)
Model LS-BC-200X150
200 x 150 mm Bottom-Lit LED Backlight. Bottom-lit LED backlight: a high-brightness LED array under a diffuser plate gives uniform planar illumination for transmissive contour imaging.
Features
- High-brightness LED array arrangement for achieving uniform plane illumination.
- Large-area uniform illumination for transmissive contour imaging.
Specifications
| Model | LS-BC-200X150 |
|---|---|
| Voltage (V) | 24 |
| Power R (W) | 19.8 |
| Power W/B/G (W) | 30 |
| Emitting area (mm) | 200x150 |
| Outer size LxWxH (mm) | 214x164x17 |
| Colours | Red, Green, Blue, White |
| Construction (setup diagram) | LED / housing / diffuser plate |
| Mounting | 4-M3 depth 5 on back; M3 nut slot in side profile |
| Thickness (mm) | 17 |
| Cable length (mm) | 500 |
| Shipping weight (estimated) | 0.85 kg |
Mounting and drawing data

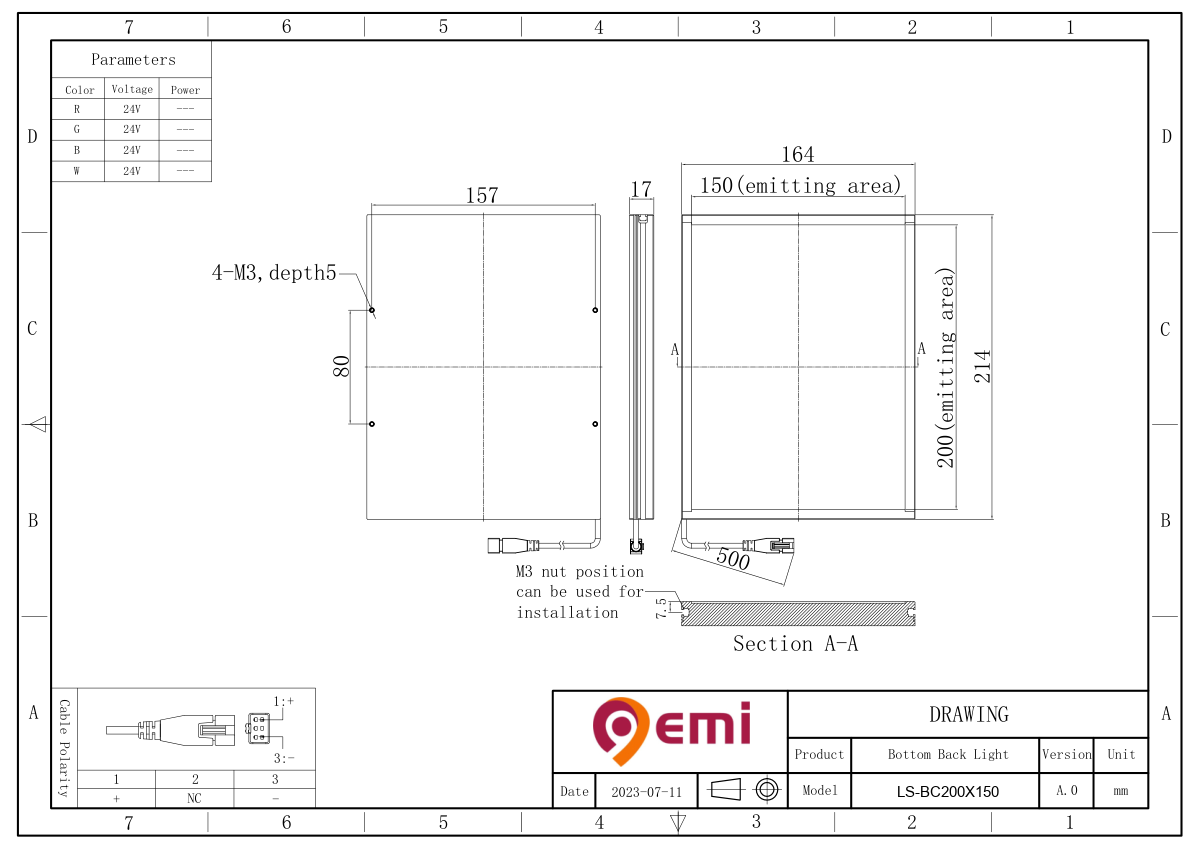

drawing table (LS-BC-AXB): C=157, D=80 (4-M3 depth-5 mounting hole spacing)
Applications
- Various size measurements, electronic component/IC outline inspection, film spot detection.
- Defect detection of chainsaw wheel gears
- Impurity detection in liquid
- Dimension inspection of metal part
- Date detection
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
