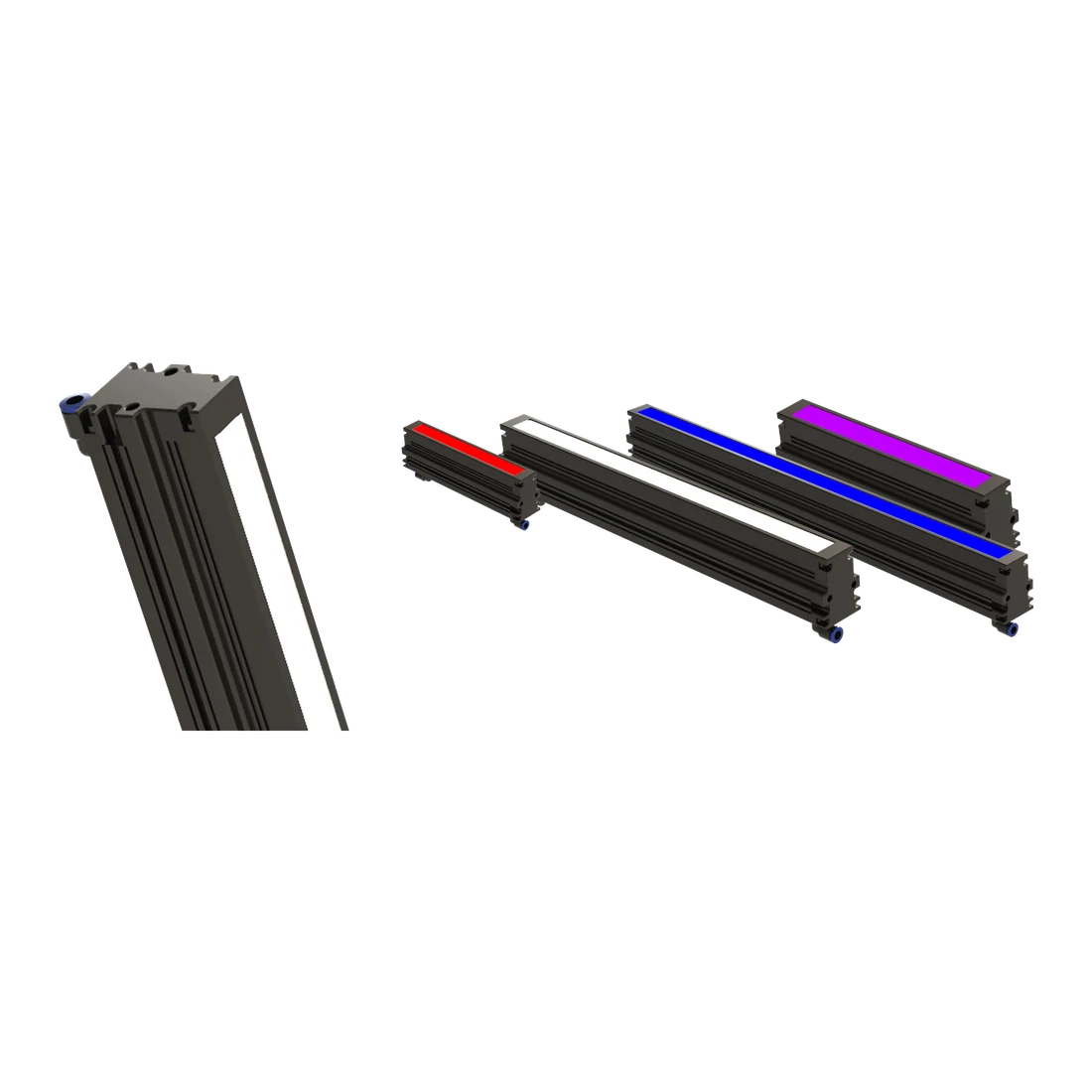

600 mm Water-Cooled Line Scan Light (LS-LNP-600)
Model LS-LNP-600
600 mm Water-Cooled Line Scan Light. Water-cooled line scan light with a close arrangement of high-power LEDs for high-brightness, uniform emission. A temperature-control switch protects the light from damage due to high temperature.
Features
- Adopts a close arrangement of high-power LEDs, high brightness uniform light emission.
- Water-cooled structure for heat dissipation.
- With temperature control switch protection mechanism, effectively preventing damage to the light because of high temperature.
Specifications
| Model | LS-LNP-600 |
|---|---|
| Voltage (V) | 48 |
| Power R (W) | 175 |
| Power G/B/W (W) | 350 |
| Emitting area (mm) | 600x20 |
| Outer size LxWxH (mm) | 630x44x62 |
| Colours | Red, Green, Blue, White |

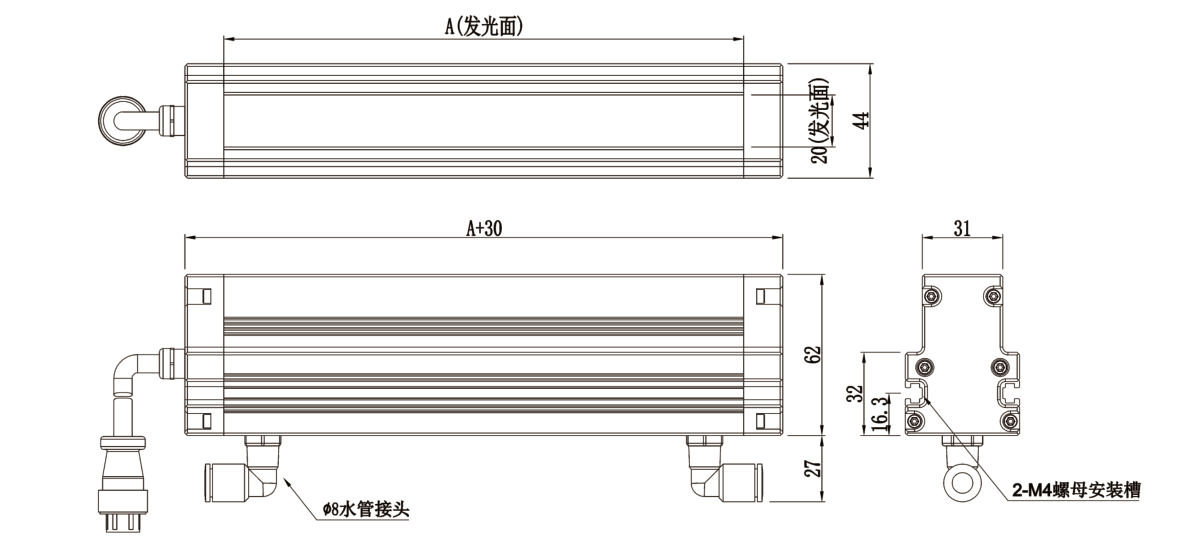

| Cooling | Water cooled; Φ8 water pipe connectors (drawing) |
| Emitting width | 20 mm |
| Outer cross-section WxH | 44x62 mm |
| Mounting | 2-M4 nut mounting slot (end view 31 wide; slot at 32 / 16.3 from base; fittings add 27 below body) |
| Shipping weight (estimated) | 1.60 kg |
Applications
- PCB inspection
- High-speed projects
- OCR/barcode
- LCD defect detection
- Textiles
- Printing
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
Light controllers LensesSelection guideOther sizes in the Line scan light with water cooling (LNP) series
| Model | Size | Power | Colours | Price | |
|---|---|---|---|---|---|
| LS-LNP-300 | 300 mm | 200 W | $849.00 | View | |
| LS-LNP-400 | 400 mm | 250 W | $1,099.00 | View | |
| LS-LNP-500 | 500 mm | 300 W | $1,339.00 | View | |
| LS-LNP-700 | 700 mm | 400 W | $1,829.00 | View | |
| LS-LNP-800 | 800 mm | 450 W | $2,079.00 | View | |
| LS-LNP-900 | 900 mm | 500 W | $2,329.00 | View | |
| LS-LNP-1000 | 1000 mm | 600 W | $2,569.00 | View |
