200 mm Tunnel Line Scan Light (LS-STN-200)
Model LS-STN-200
200 mm Tunnel Line Scan Light. Tunnel-type line scan light whose high brightness meets high-speed inspection requirements. Better uniformity suits uneven and large-area reflective inspection, and the heat dissipation design ensures long-term stability.
Features
- High brightness meets high-speed inspection requirements.
- Better uniformity, suitable for uneven and large-area reflective inspection.
- Superior heat dissipation design ensures long-term stability of the light.
Specifications
| Model | LS-STN-200 |
|---|---|
| Voltage (V) | 48 |
| Power R (W) | 50 |
| Power G/B/W (W) | 65 |
| Hole size (mm) | 184x6 |
| Emitting area (mm) | 200x118 |
| Outer size LxWxH (mm) | 216x244x88 |
| Colours | Red, Green, Blue, White |
| Shipping weight (estimated) | 2.05 kg |
Mounting and drawing data

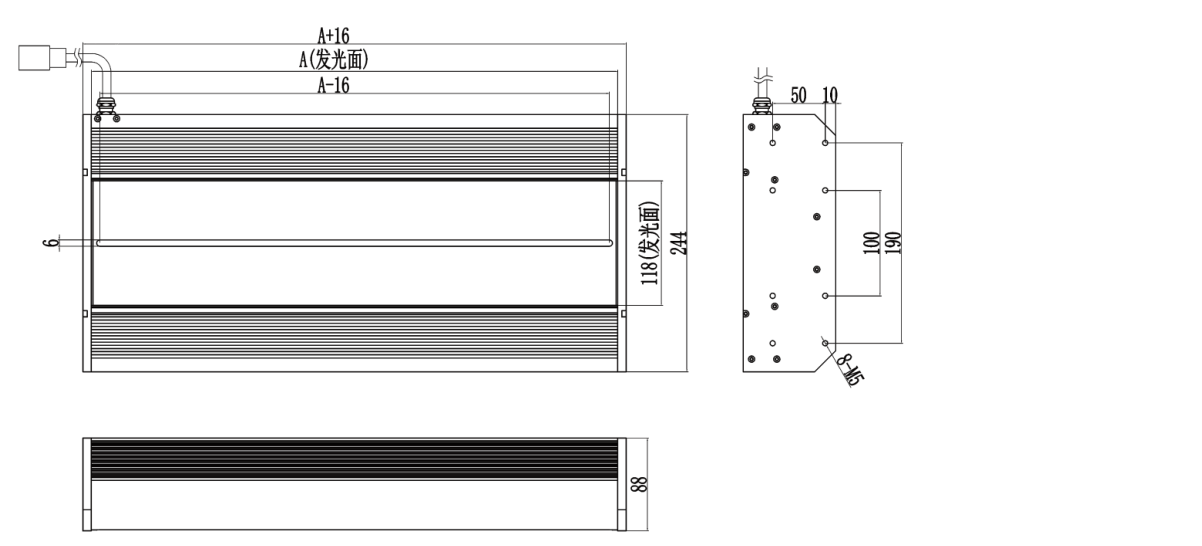

Drawing LS-STN-A: outer A+16, camera slot A-16 x 6, emitting height 118, body 244 x 88; side plate 8-M5 (100 / 190 spacing)
Applications
- Surface irregularity defect detection
- PCB substrate inspection
- Printed surface inspection
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
Light controllers LensesSelection guideOther sizes in the Tunnel line scan light (STN) series
| Model | Size | Power | Colours | Price | |
|---|---|---|---|---|---|
| LS-STN-120X60 | 120 mm | 9.5 W | $409.00 | View | |
| LS-STN-250 | 250 mm | 95 W | $729.00 | View | |
| LS-STN-400 | 400 mm | 125 W | $1,099.00 | View |
