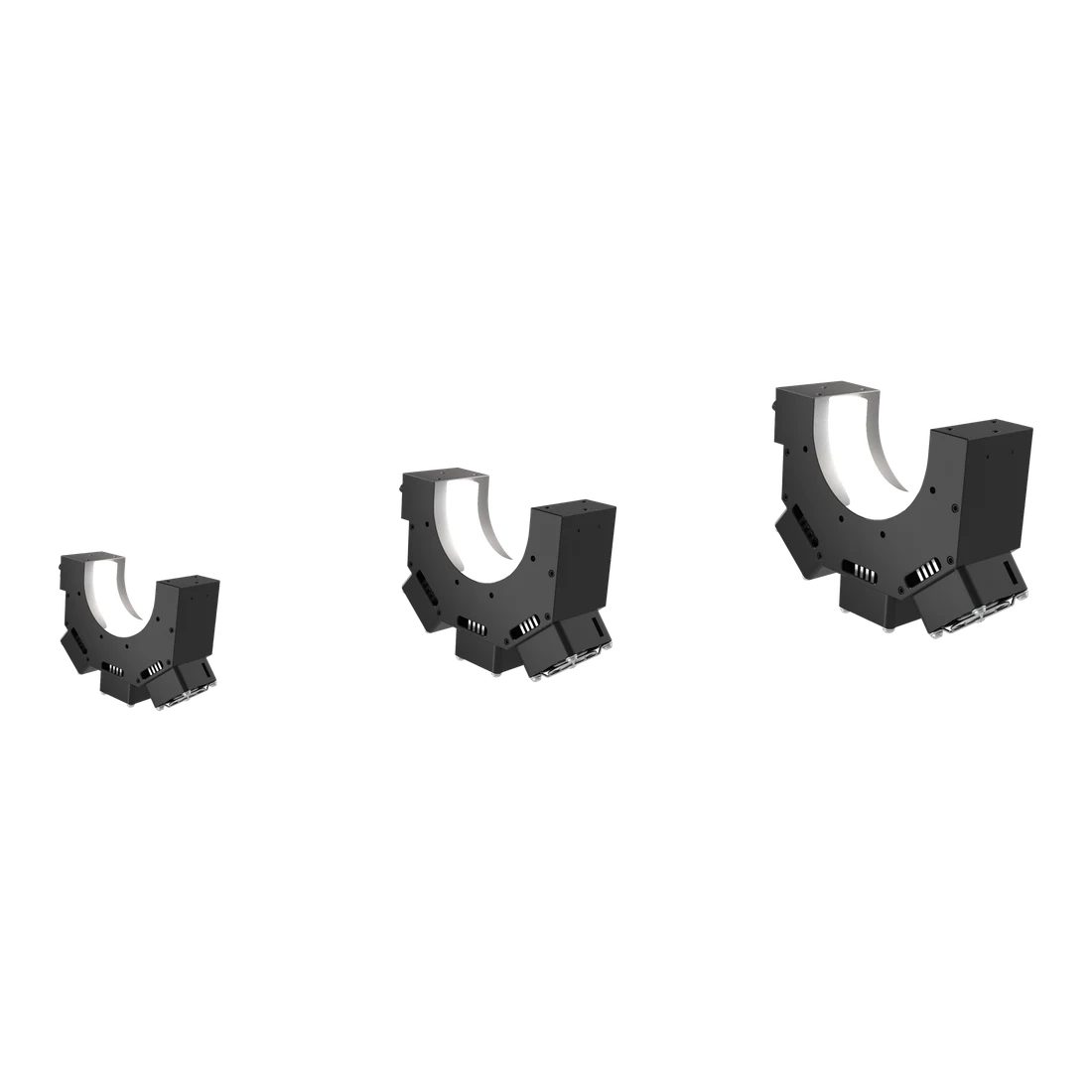

60 mm C-Shaped Line Scan Light (LS-LNC-60)
Model LS-LNC-60
60 mm C-Shaped Line Scan Light. C-shaped line scan light with a tight arrangement of high-power LEDs and a semicircular emitting surface for a large emitting angle and wide coverage. Fan cooling keeps temperature distribution even.
Features
- Using a tight arrangement of high-power LEDs, high brightness and uniformity.
- Utilizing fan-cooling, ensuring even temperature distribution and excellent cooling performance.
- Adopting a semicircular light-emitting surface, large light-emitting angle and wide coverage.
Specifications
| Model | LS-LNC-60 |
|---|---|
| WD (mm) | 20-50 |
| Emitting area (mm) | 60 |
| Power R (W) | 50 |
| Power W/G/B (W) | 58 |
| Outer size LxWxH (mm) | 112.5x48x152 |
| Colours | Red, Green, Blue, White, Infrared |
| Cooling | Fan cooled |
| Shipping weight (estimated) | 0.80 kg |

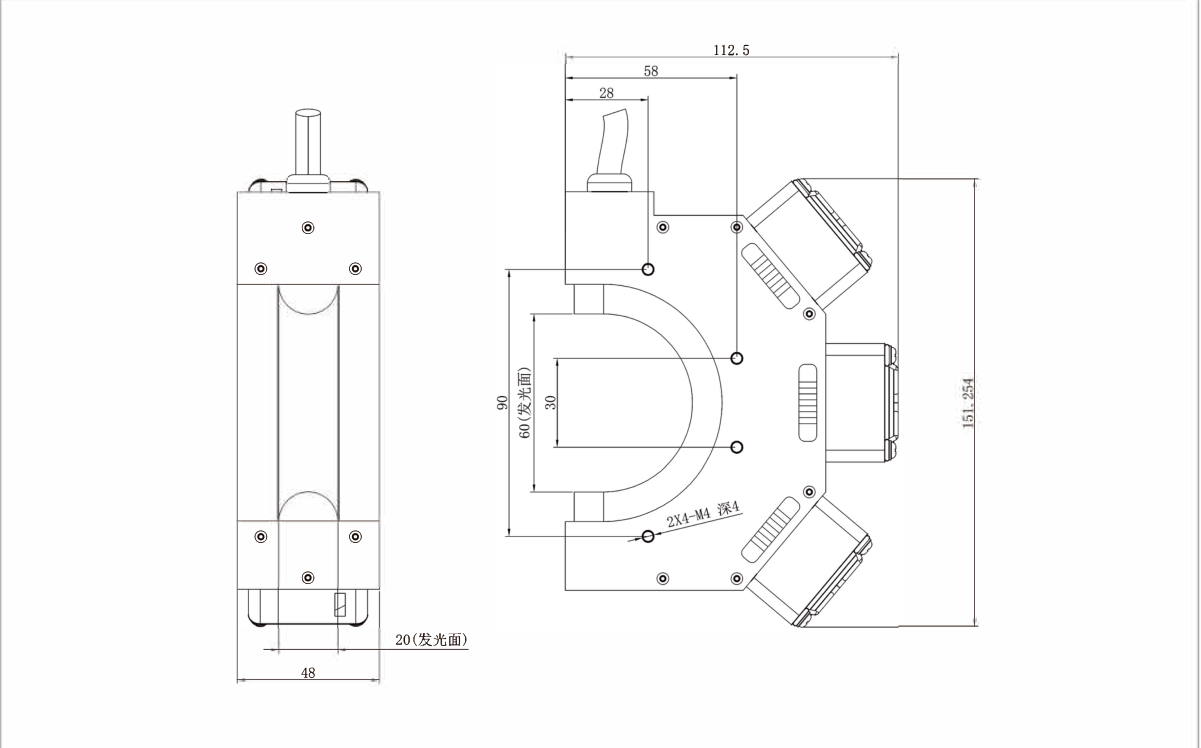

Mounting and drawing data
Table has no voltage column. Drawing: 112.5 wide (58 / 28 to hole lines), 48 deep, emitting face 20 wide, C-opening 90 outer / 60 emitting / 30; 2X4-M4 depth 4; overall height dimension printed '151.254' (table H = 152)
Applications
- Semiconductor material edge inspection
- Arc edge defect detection
- Cylindrical product surface defect
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
