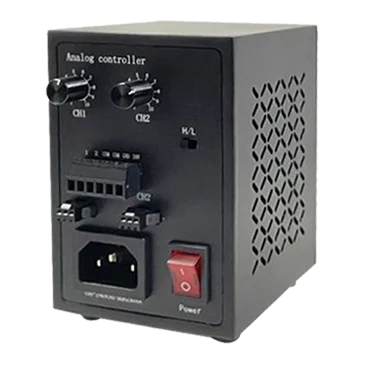

2-Channel Analog LED Light Controller, 0-24V (LS-APC2430-2H)
Model LS-APC2430-2H
2-Channel Analog LED Light Controller, 0-24V. LS-APC series analog controller mainly powers 24V LED lights; brightness is adjusted accurately with the front-panel stepless knob. It can keep the light continuously on for a long time and has a built-in external trigger function for easy on-off switching.
Features
- Stepless knob to adjust the brightness
- With the switch to control the on/off of the light
- Trigger function
- Two channels are controlled independently
Specifications
| Model | LS-APC2430-2H |
|---|---|
| Output CH | 2CH |
| Input voltage | AC100-240V 50/60Hz |
| Output voltage | 0~24V |
| Single CH current | 1.25A |
| Total output current | 1.25A |
| Control method | knob |
| External trigger voltage | 5-24V |
| Dimming | Stepless knob per channel (dial 1-10) |

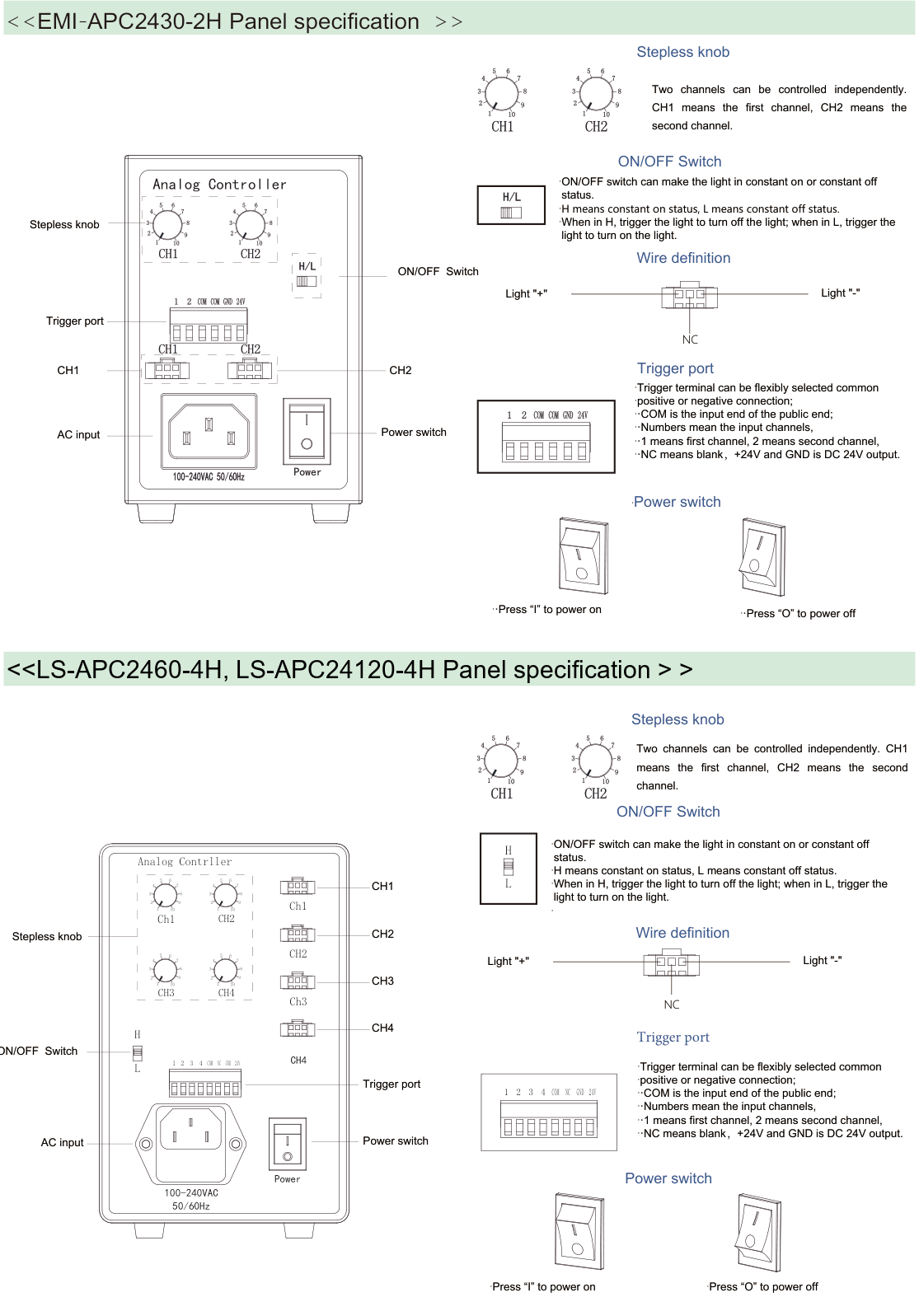

| Light connector wiring | Light "+", Light "-", NC |
| Trigger port (trigger models) | Terminal block 1, 2 (3, 4), COM, NC, +24V, GND; common positive or negative connection; +24V and GND are a DC 24V output |
| ON/OFF switch (trigger models) | H = constant on (trigger turns light off); L = constant off (trigger turns light on) |
| Power switch | I = on, O = off |
| Shipping weight (estimated) | 0.50 kg |
Mounting and drawing data

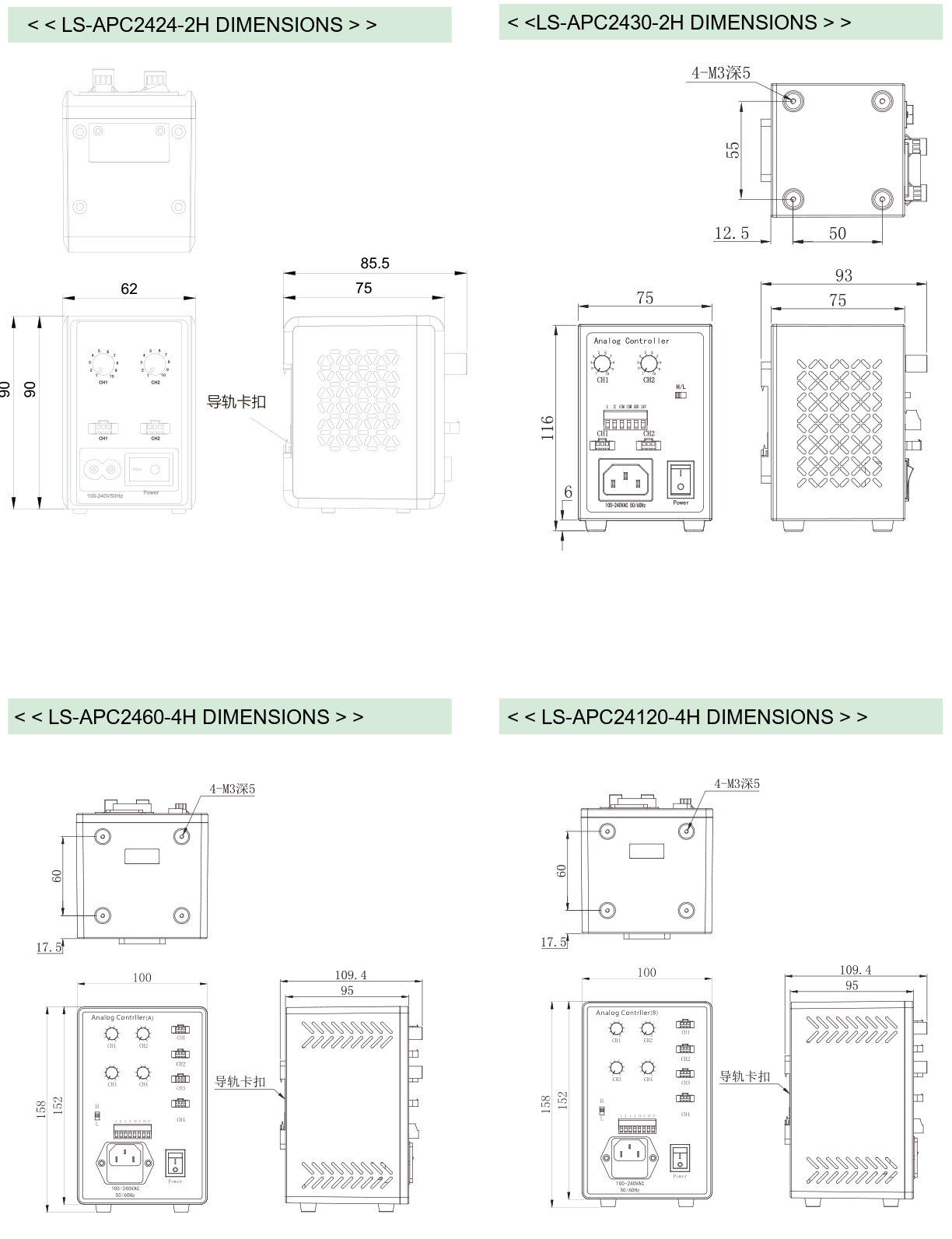

Drawing W75 x H116 (plus 6 mm feet) x D93 (body 75); bottom 4-M3 depth 5 holes, 55 x 50 spacing (12.5 offset); dims_mm = [L depth front-to-back, W width, H height] read from the dimension drawing
