2-Channel High-Power Digital LED Light Controller, 16-48V (LS-DPC48500-2H)

Light controllers

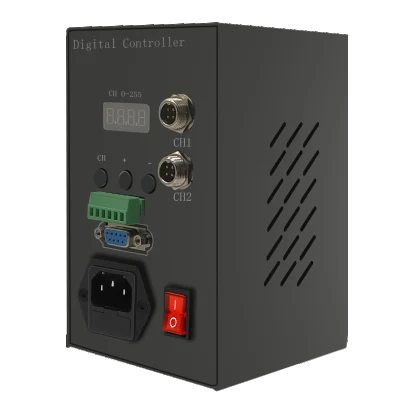

2-Channel High-Power Digital LED Light Controller, 16-48V (LS-DPC48500-2H)

Model LS-DPC48500-2H

2-Channel High-Power Digital LED Light Controller, 16-48V. LS-DPC series digital controller mainly powers 48V LED lights and can be controlled from the front panel or by serial communication (remote control). It provides 256 brightness steps (0-255) and a built-in external trigger function for easy on-off switching.

$569.00 USD
2.10 kg shipping weight · Ships in 2-3 weeks
Secure card checkout · ships from the USA.

Features

  • 256 levels digital control
  • Support RS232 communication
  • Memory function while power off
  • Overload protection function
  • High speed optocoupler isolation trigger
  • Constant voltage output controlled by panel or RS232

Specifications

ModelLS-DPC48500-2H
Output CH2CH
Input voltageAC100-240V 50/60Hz
Output voltage16~48V
Single CH current7A
Total output current10.5A
Control methodButtons, RS232
External trigger voltage5-24V
Dimming256 levels (0-255) per channel
KeysCH = change channel, + = increase, - = decrease brightness
DisplayShows channel and level (e.g. 1 125); H1 = constant on (trigger turns off), H0 = constant off (trigger turns on)
Serial portRS232, DB9 female ('DP9' as printed), ASCII data
Trigger portHigh speed optocoupler isolated; common positive or negative connection; COM = common, numbers = channel inputs, NC = blank, +24V/GND = DC 24V output
MemorySettings memorised at power off
ProtectionOverload protection
Ethernetnot listed in catalog
Output connector4-pin round: 48V light +/-, 24V fan +/-
Shipping weight (estimated)2.10 kg

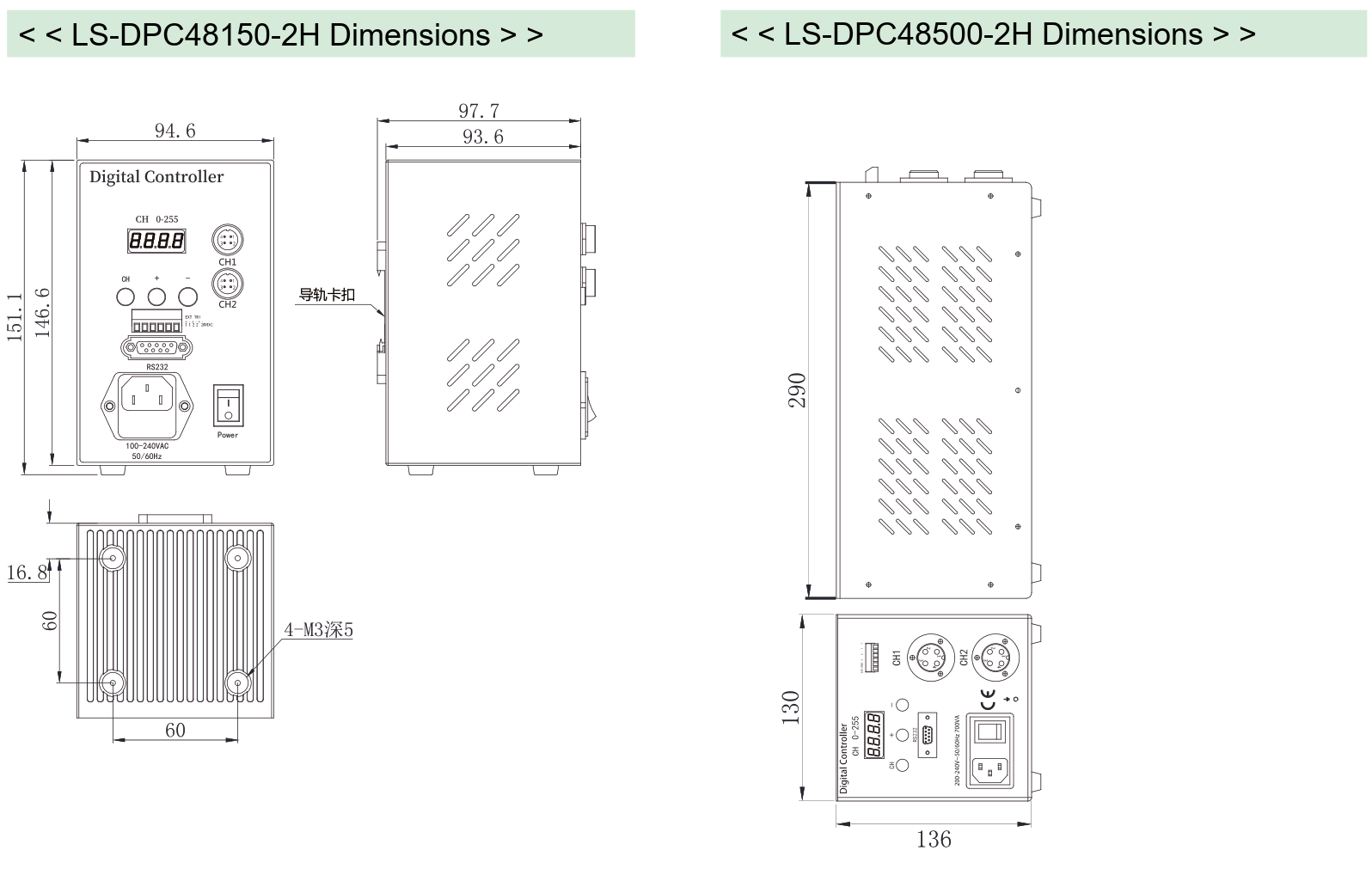

Mounting and drawing data

Panel label reads 200-240V~50/60Hz 700VA (table says AC100-240V); drawing printed rotated: length 290, panel face 130 x 136 (width x height read from rotated panel text); dims_mm = [L depth front-to-back, W width, H height] read from the dimension drawing

Complete the station

Drive the light from a light controller and pair it with a lens for your field of view and working distance.

Light controllers LensesSelection guide

Other sizes in the High-power digital controller (DPC, 48V) series

ModelSizePowerColoursPrice
LS-DPC48150-2H2 ch, 22-48V154 W $359.00 View
