2-Channel Constant-Current LED Light Controller, 5V (LS-MACC515-2H)

Light controllers

2-Channel Constant-Current LED Light Controller, 5V (LS-MACC515-2H)

Model LS-MACC515-2H

2-Channel Constant-Current LED Light Controller, 5V. Constant current controller that powers spot lights; a single channel can pass 680mA current max.

$129.00 USD
0.30 kg shipping weight · Ships in 2-3 weeks
Secure card checkout · ships from the USA.

Features

  • Stepless knob to adjust the brightness
  • Channels controlled independently
  • 0-680mA constant current control

Specifications

ModelLS-MACC515-2H
Output CH2CH
Input voltageDC 9-26V
Output voltage5V
Single CH current0.8A
Total output current1.6A
Control methodknob
External trigger voltageX
DimmingStepless knob per channel
Light connector wiringLight "+", Light "-", NC
Shipping weight (estimated)0.30 kg

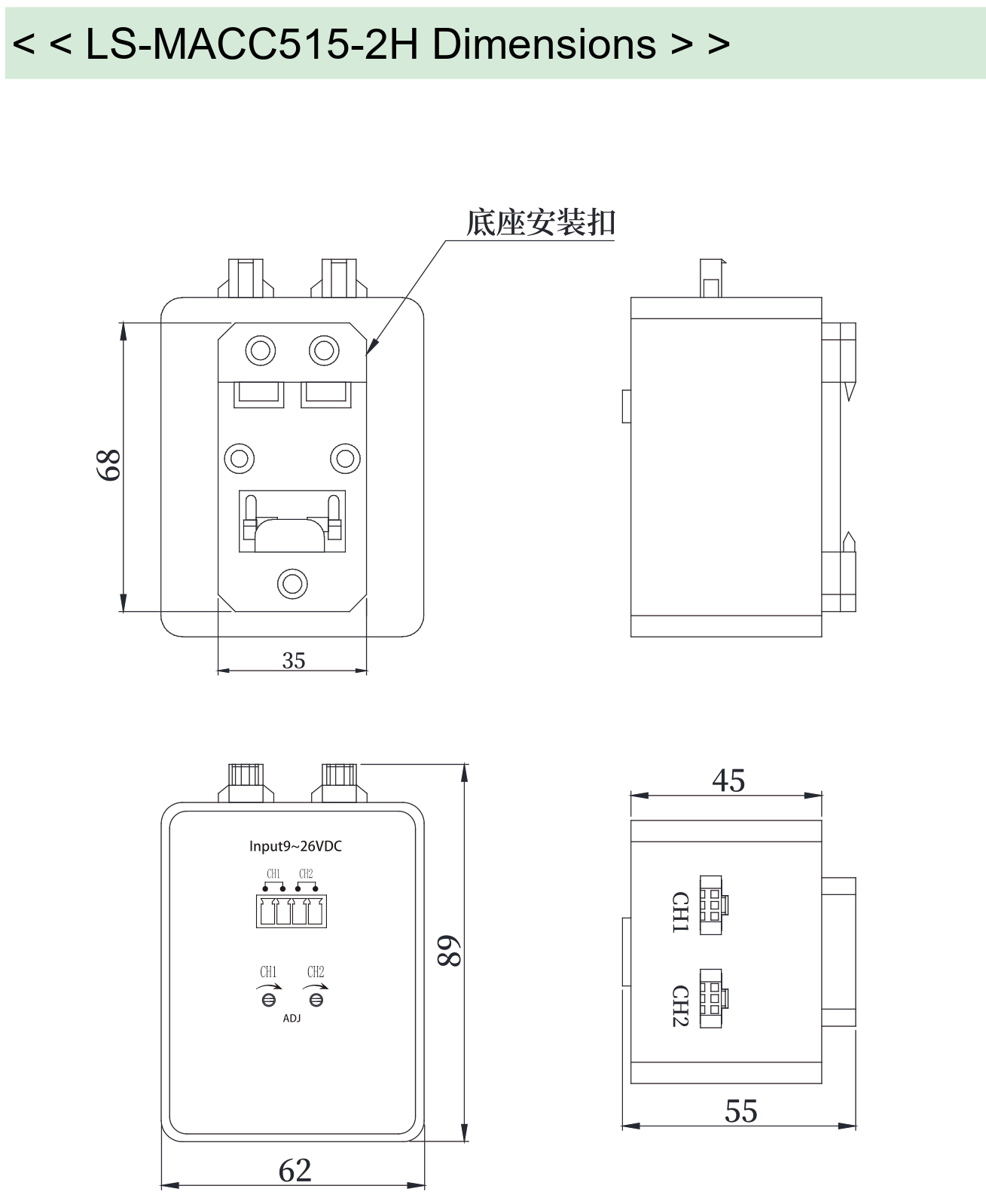

Mounting and drawing data

Per-channel DC input port CH1 (9-26V), CH2 (9-26V); drawing W62 x H89 x D55 (body 45); base mounting clip 68 x 35; dims_mm = [L depth front-to-back, W width, H height] read from the dimension drawing

Applications

  • Power supply to spot lights
Complete the station

Drive the light from a light controller and pair it with a lens for your field of view and working distance.

Light controllers LensesSelection guide

Other sizes in the Constant current controller (ACC) for spot lights series

ModelSizePowerColoursPrice

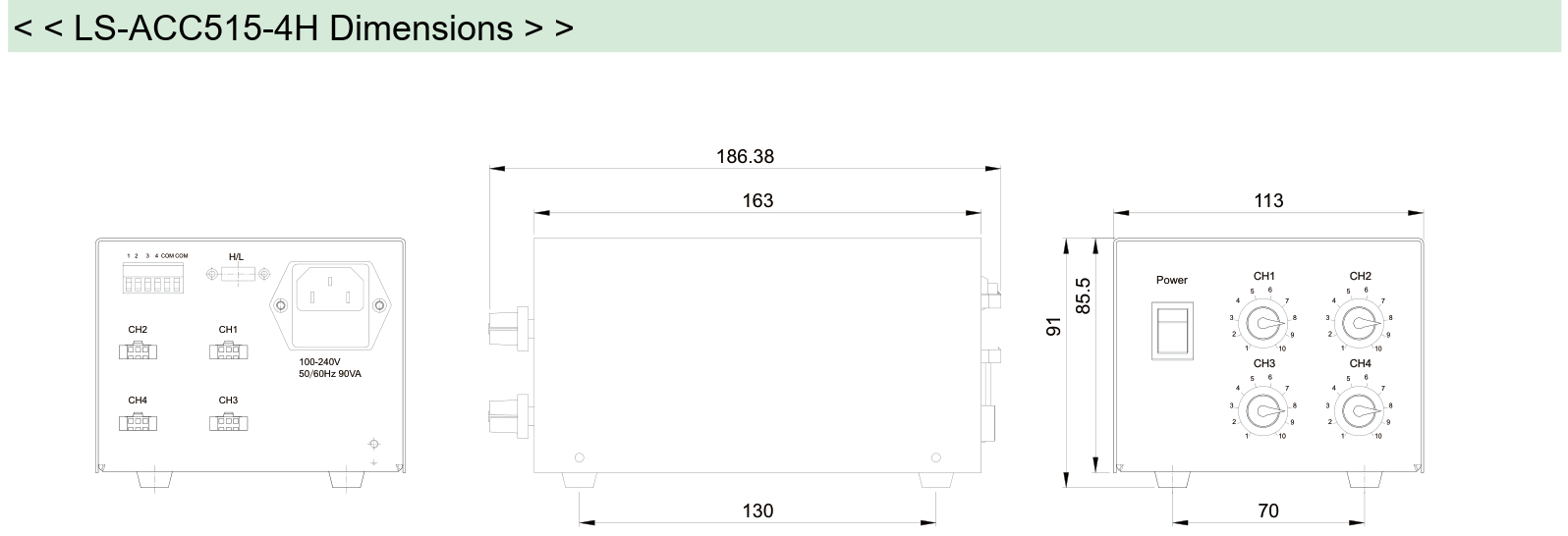

LS-ACC515-4H4 ch, 5V14 W $169.00 View
