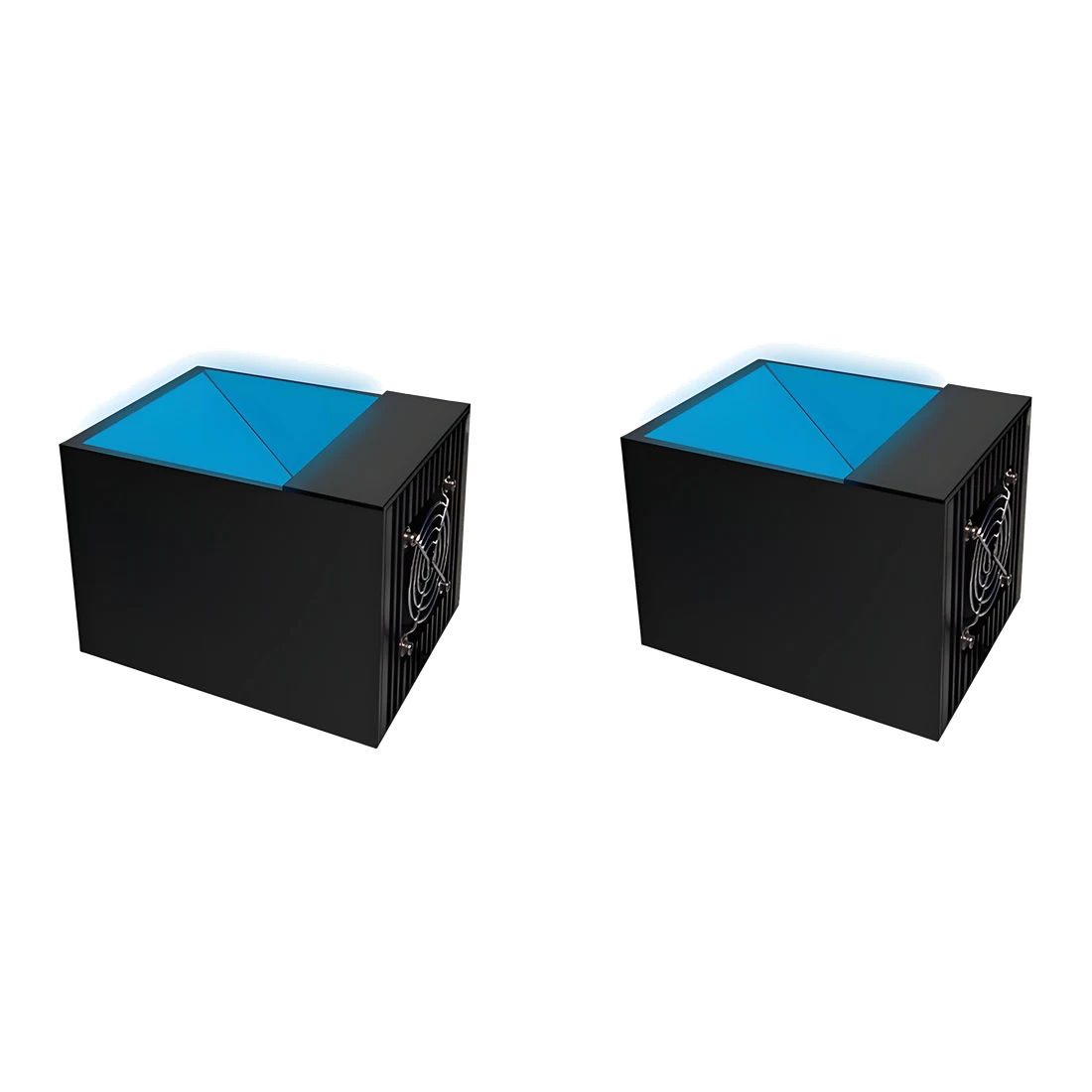

30 x 30 mm High-Power Coaxial Light (LS-CONH-30)
Model LS-CONH-30
30 x 30 mm High-Power Coaxial Light. Fan-cooled high-power coaxial light using high-power LEDs for high brightness, intended for inspecting moving targets or short-exposure shots. Coding: LS-CONH-<emitting area>-<colour>, e.g. LS-CONH-40-W.
Features
- Fan cooling, with high power LED, high brightness
- For inspection of shots in motion or short exposure products
Specifications
| Model | LS-CONH-30 |
|---|---|
| Voltage (V) | 24 |
| Power R (W) | 5.8 |
| Power G/B/W (W) | 8.7 |
| Emitting area (mm) | 30x30 |
| Outer size LxWxH (mm) | 96x40x40 |
| Colours | Red, Green, Blue, White |
| Cooling | Fan |

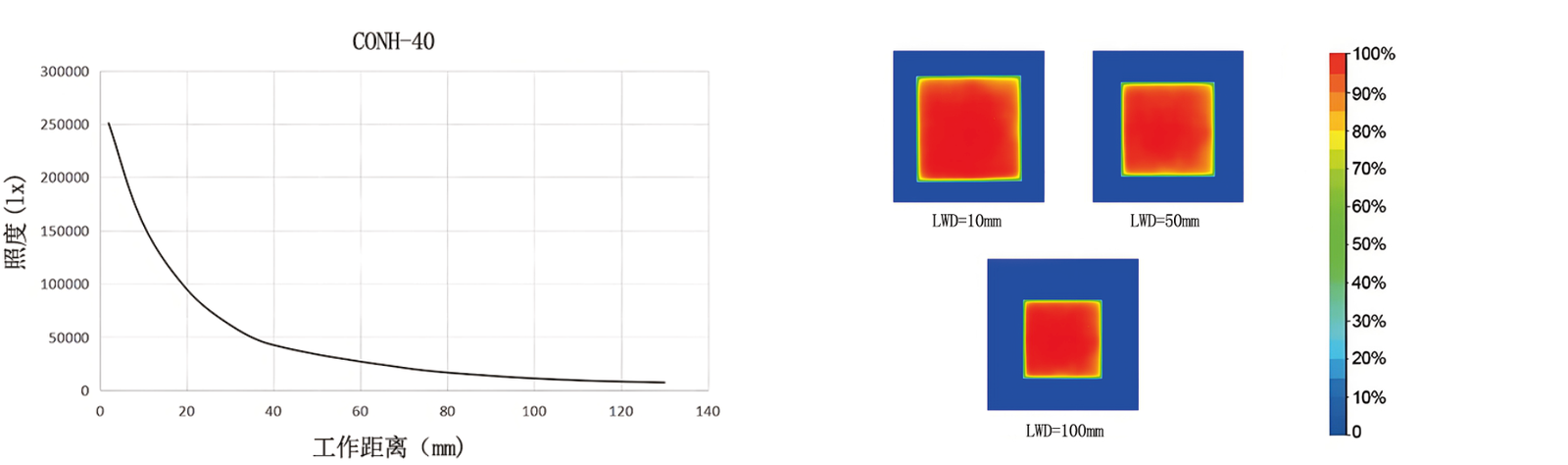

| Illuminance (CONH-40, read from curve) | approx. 250,000 lx near the light falling below 50,000 lx at 40 mm working distance |
| Shipping weight (estimated) | 0.30 kg |
Applications
- Scratch inspection of metal or plastic surfaces
- Indentation or defect inspection of reflective surfaces
- Motor centre location inspection

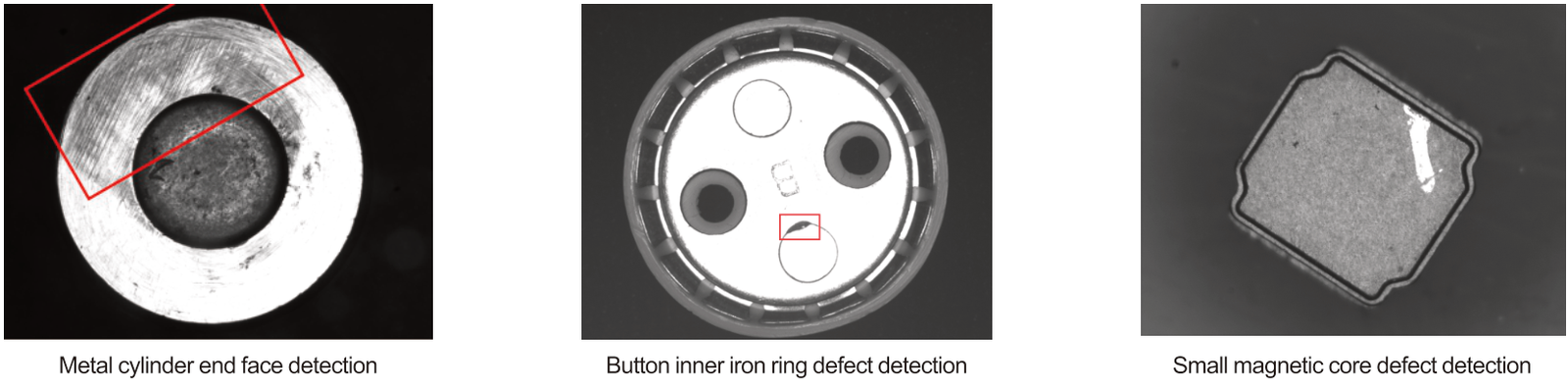

- Metal cylinder end face detection
- Button inner iron ring defect detection
- Small magnetic core defect detection
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.

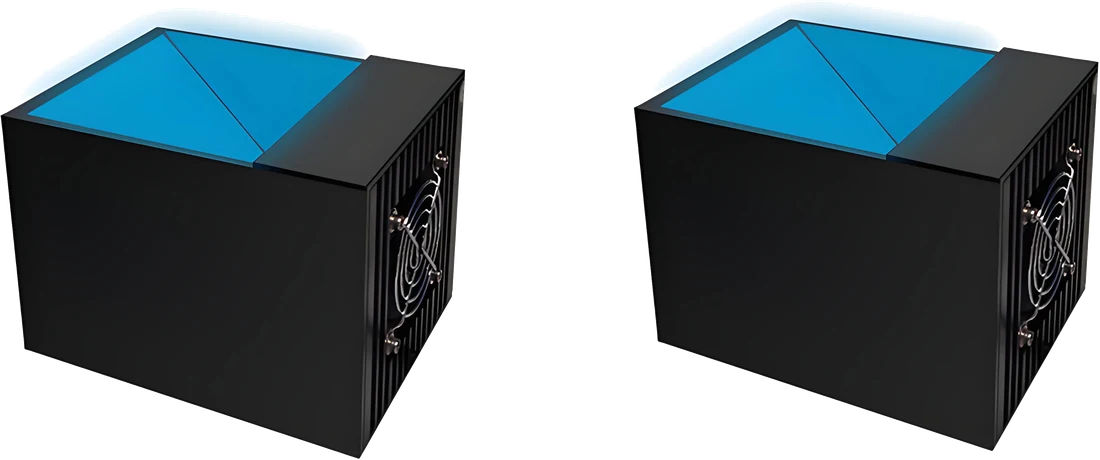

Light controllers LensesSelection guideOther sizes in the High power coaxial light (CONH series) series
| Model | Size | Power | Colours | Price | |
|---|---|---|---|---|---|
| LS-CONH-40 | 40 x 40 mm | 9 W | $159.00 | View | |
| LS-CONH-50 | 50 x 50 mm | 14.4 W | $189.00 | View | |
| LS-CONH-60 | 60 x 60 mm | 22 W | $229.00 | View | |
| LS-CONH-80 | 80 x 80 mm | 44 W | $319.00 | View | |
| LS-CONH-100 | 100 x 100 mm | 65 W | $429.00 | View |
