Coaxial lights

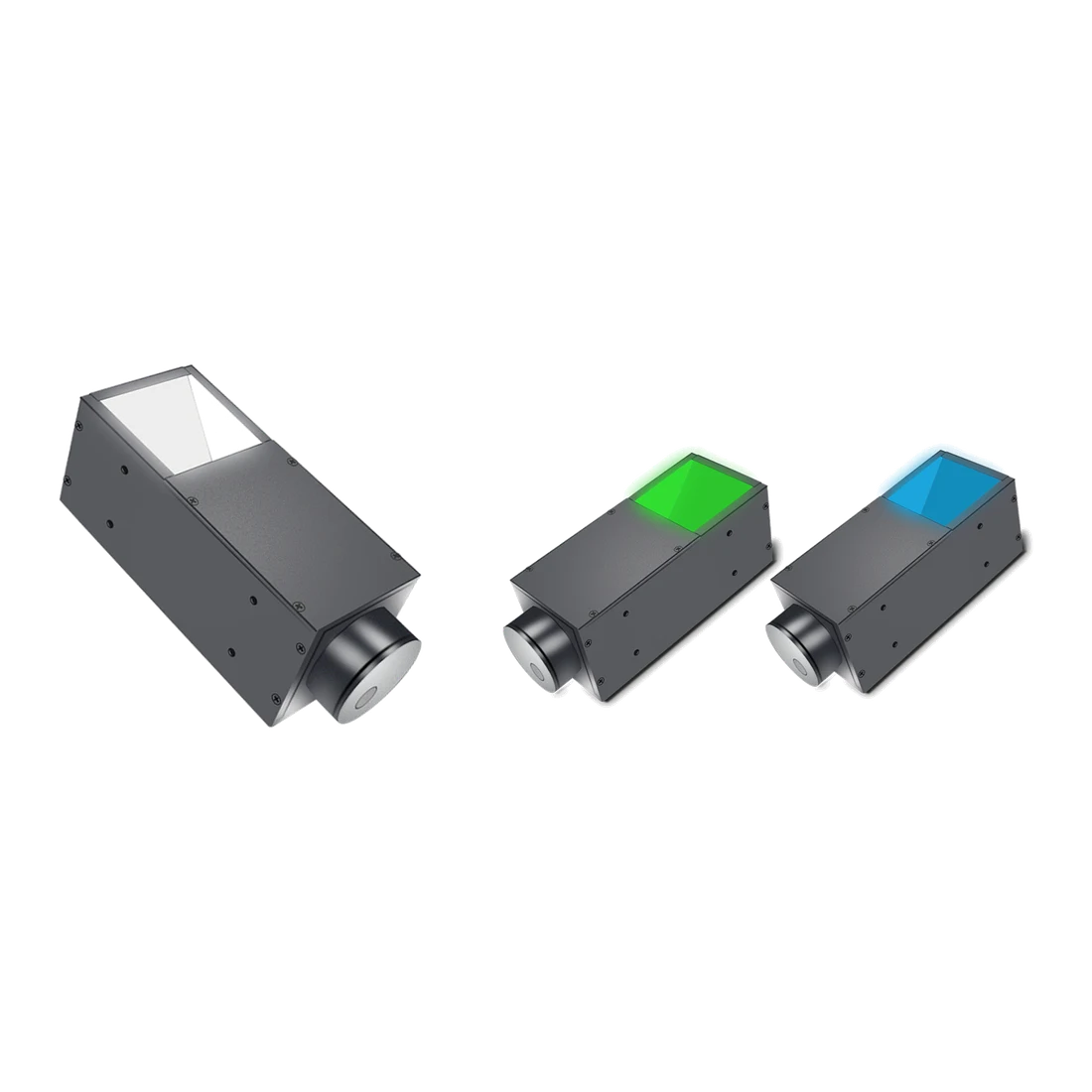

30 x 30 mm Collimated Coaxial Light (LS-CONP-30)
Model LS-CONP-30
30 x 30 mm Collimated Coaxial Light. Coaxial light with parallel (collimated) illumination that suppresses light diffraction to achieve high-precision imaging. Coding: LS-CONP-<emitting area>-<colour>, e.g. LS-CONP-50-R.
Features
- Achieving parallel light illumination
- Suppressing light diffraction to achieve high-precision imaging
Specifications
| Model | LS-CONP-30 |
|---|---|
| Voltage (V) | 24 |
| Power R/G/B/W (W) | 4.5 |
| Emitting area (mm) | 30x30 |

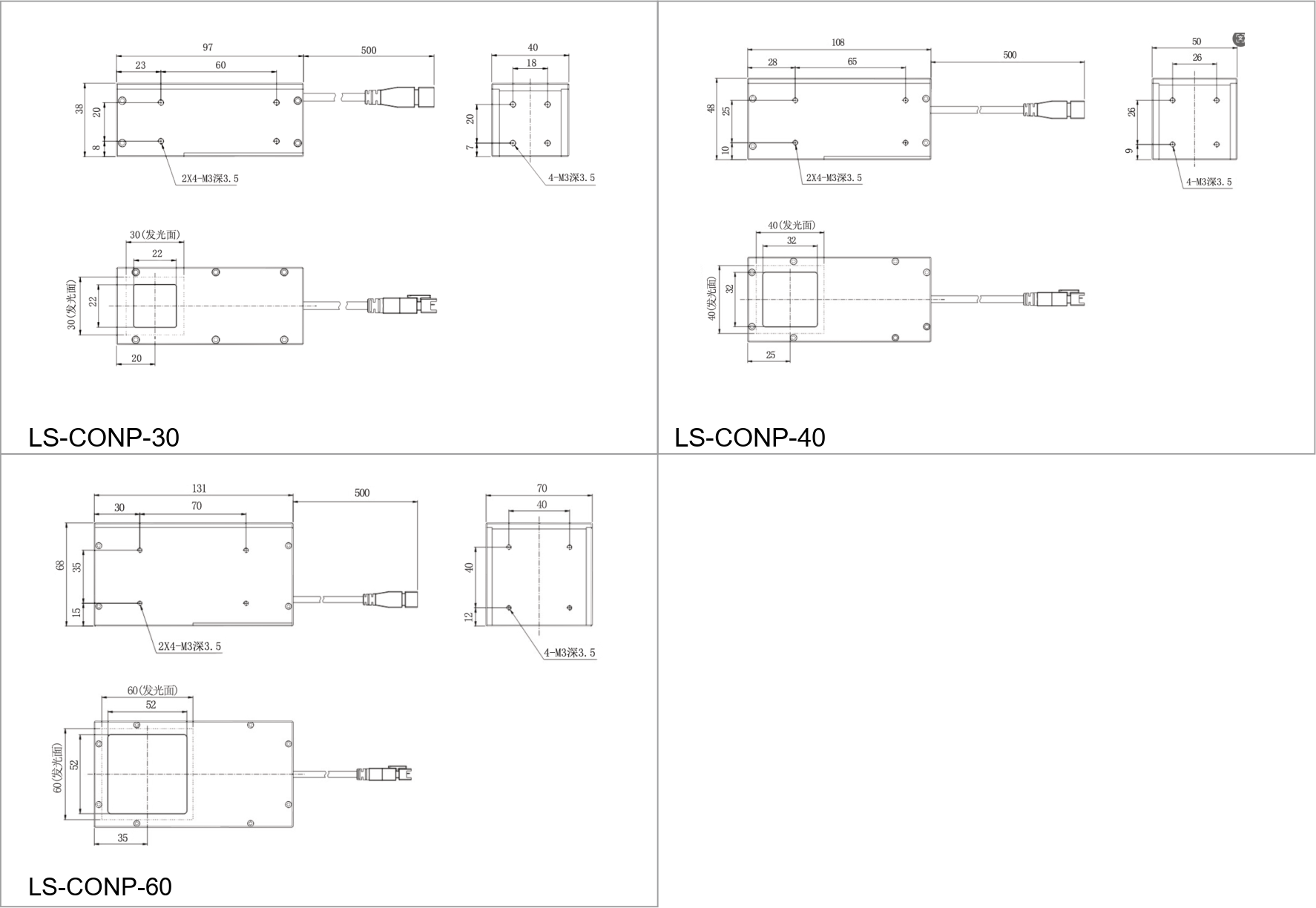

| Outer size LxWxH (mm) | 97x38x40 |
| Colours | Red, Green, Blue, White |
| Power | 4.5 W (R/G/B/W, every size) |
| Cable length (drawing) | 500 mm |
| Shipping weight (estimated) | 0.30 kg |
Applications
- Size measurement
- Cylinder dimension check
- Detection of fine burrs

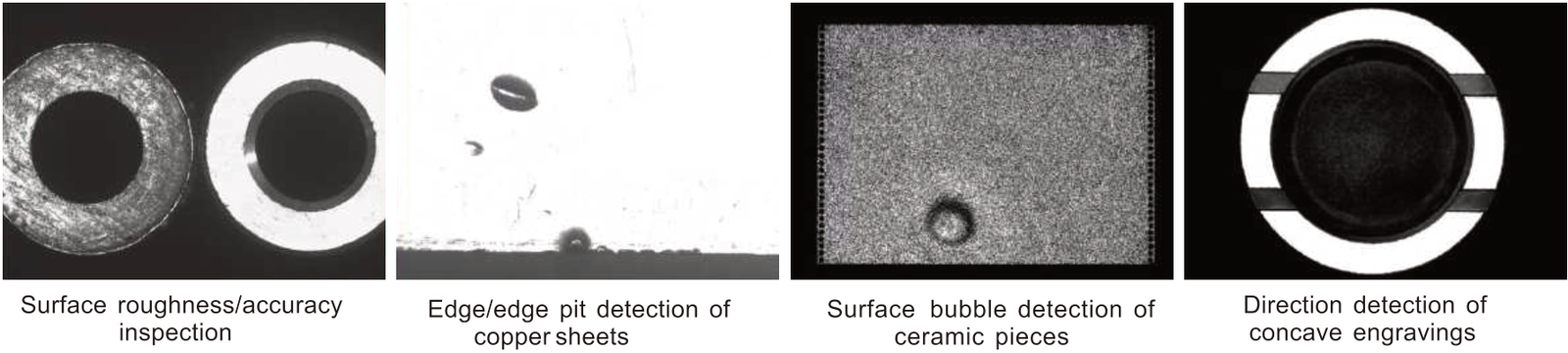

- Surface roughness/accuracy inspection
- Edge/edge pit detection of copper sheets
- Surface bubble detection of ceramic pieces
- Direction detection of concave engravings
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
Light controllers LensesSelection guideOther sizes in the Collimated coaxial light (CONP series) series
| Model | Size | Power | Colours | Price | |
|---|---|---|---|---|---|
| LS-CONP-40 | 40 x 40 mm | 4.5 W | $149.00 | View | |
| LS-CONP-60 | 60 x 60 mm | 4.5 W | $219.00 | View |
