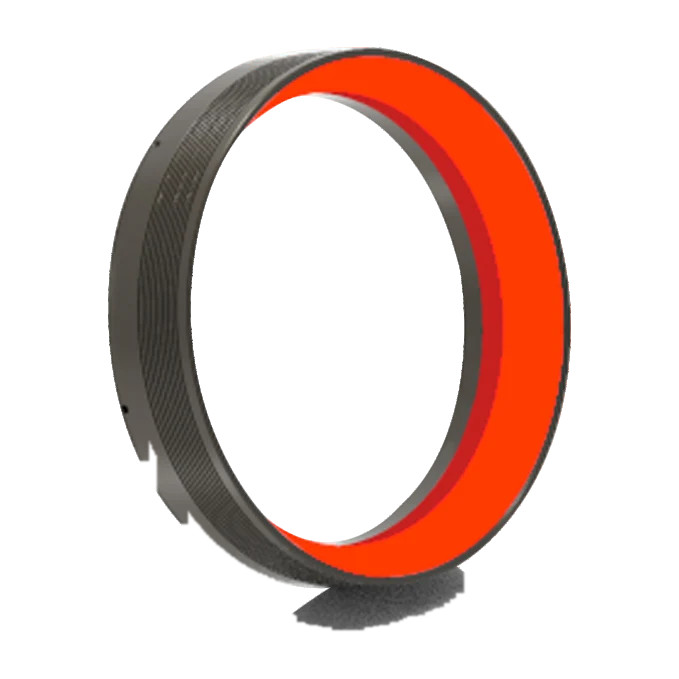

88 mm OD Low-Angle Ring Shadowless Light (LS-SLR-88)
Model LS-SLR-88
88 mm OD Low-Angle Ring Shadowless Light. Low angle ring shadowless light with high-density LEDs arranged vertically and special light-guiding diffusion. Its efficient low-angle lighting enhances surface features and reduces reflective glare.
Features
- Good uniformity, suitable for low-angle illumination.
- High-density LEDs arranged vertically with special light-guiding diffusion.
- Reduces reflective glare.
- Efficient low-angle lighting enhances surface features.
Specifications
| Model | LS-SLR-88 |
|---|---|
| Voltage (V) | 24 |
| Power R (W) | 4.2 |
| Power W/B/G (W) | 4.5 |
| OD x ID x H (mm) | 88x60x37 |
| Colours | Red, Green, Blue, White |
| Cable lead (mm, per drawings) | 500 |
| Shipping weight (estimated) | 0.25 kg |

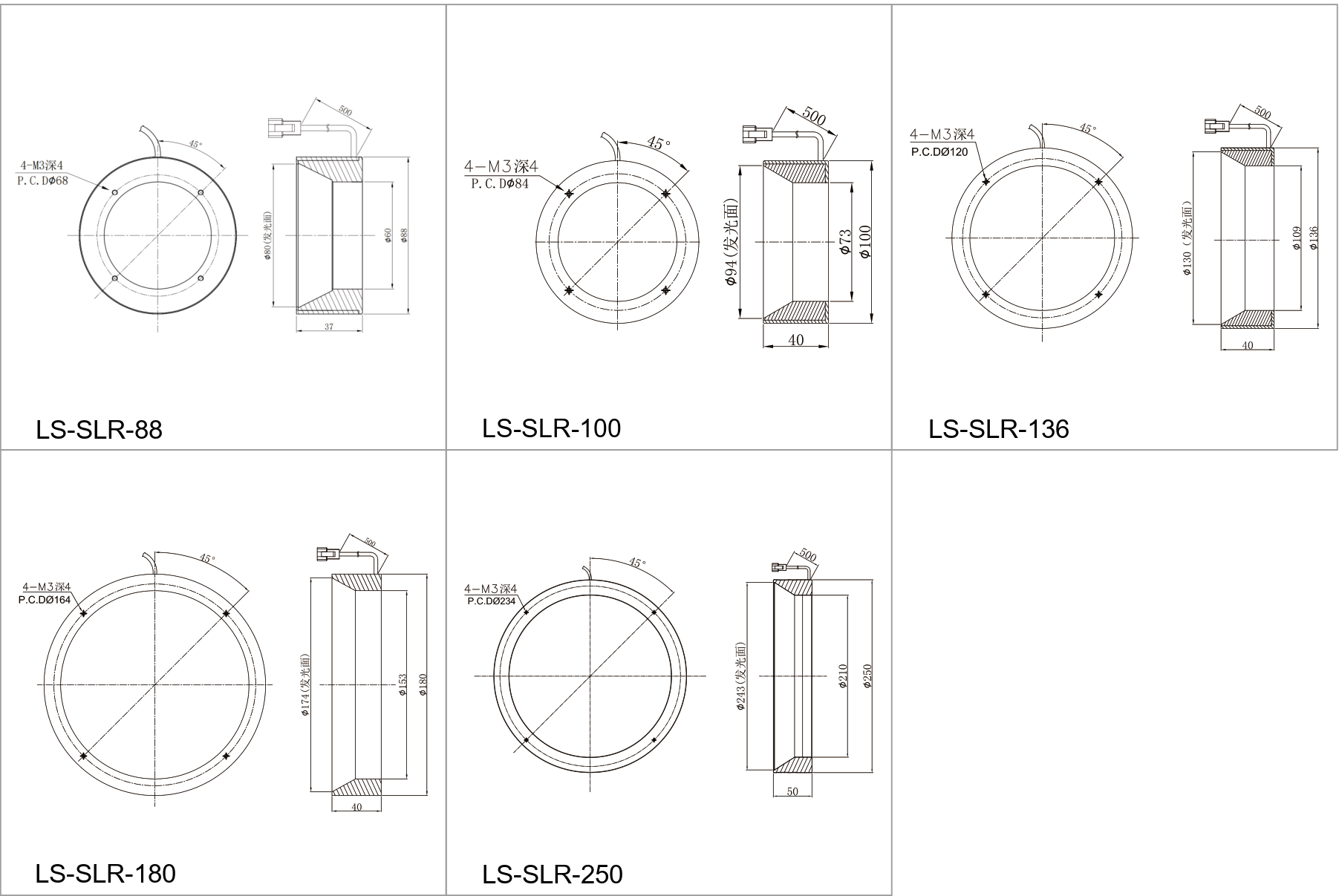

Mounting and drawing data
drawing: 4-M3 depth 4 on P.C.D 68; emitting face dia 80

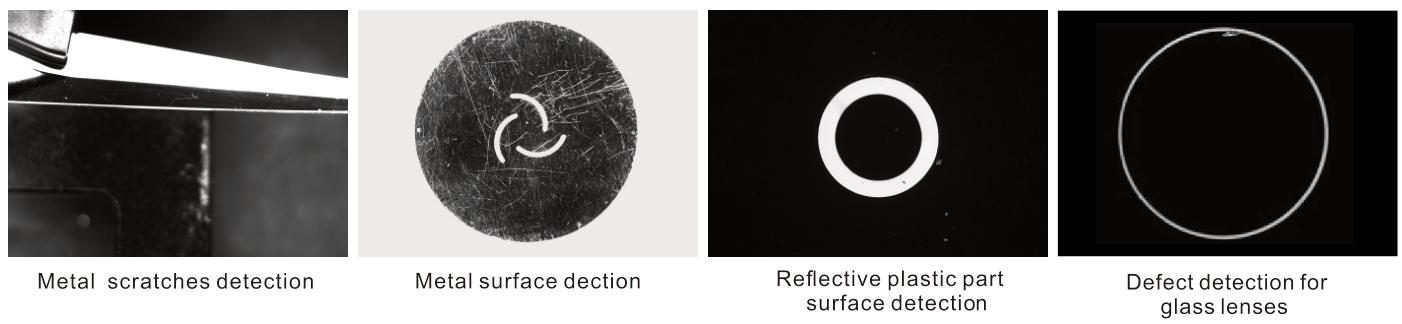

Applications
- Surface damage inspection
- IC tape inspection
- BGA/QFP position inspection
- Connector pin spacing/offset detection
- Metal scratches detection
- Metal surface detection
- Reflective plastic part surface detection
- Defect detection for glass lenses
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
Light controllers LensesSelection guideOther sizes in the Low angle ring shadowless light (SLR series) series
| Model | Size | Power | Colours | Price | |
|---|---|---|---|---|---|
| LS-SLR-100 | 100 mm OD | 5 W | $209.00 | View | |
| LS-SLR-136 | 136 mm OD | 10 W | $269.00 | View | |
| LS-SLR-180 | 180 mm OD | 13 W | $349.00 | View | |
| LS-SLR-250 | 250 mm OD | 15 W | $479.00 | View |
