73 mm OD Multi-Angle AOI LED Ring Light (LS-AOI-73)
Model LS-AOI-73

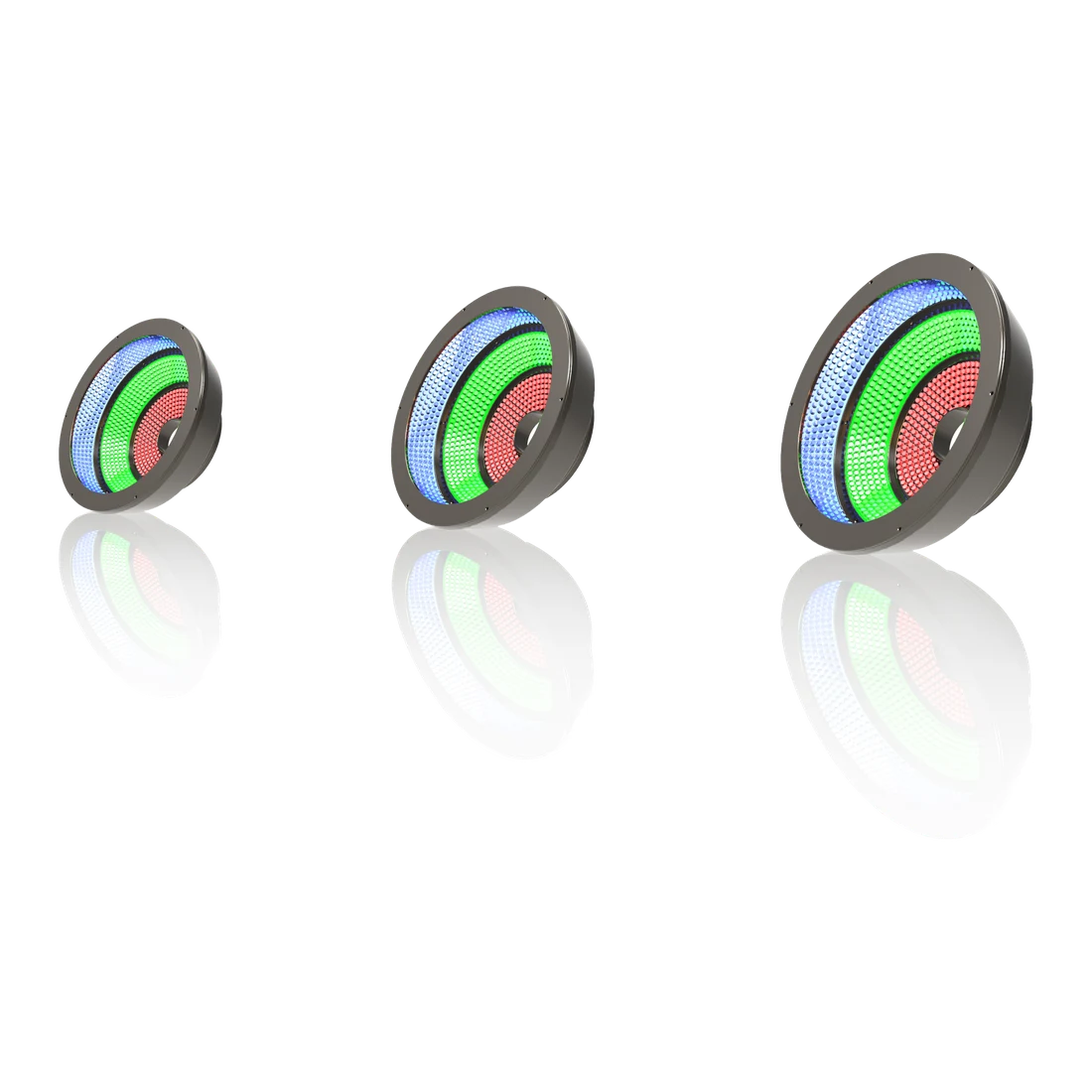

73 mm OD Multi-Angle AOI LED Ring Light. Multi-colour (red/green/blue), multi-angle tiered ring light for AOI that accurately highlights the surface texture and layer information of objects.
Features
- Multi-color, multi-angle illumination.

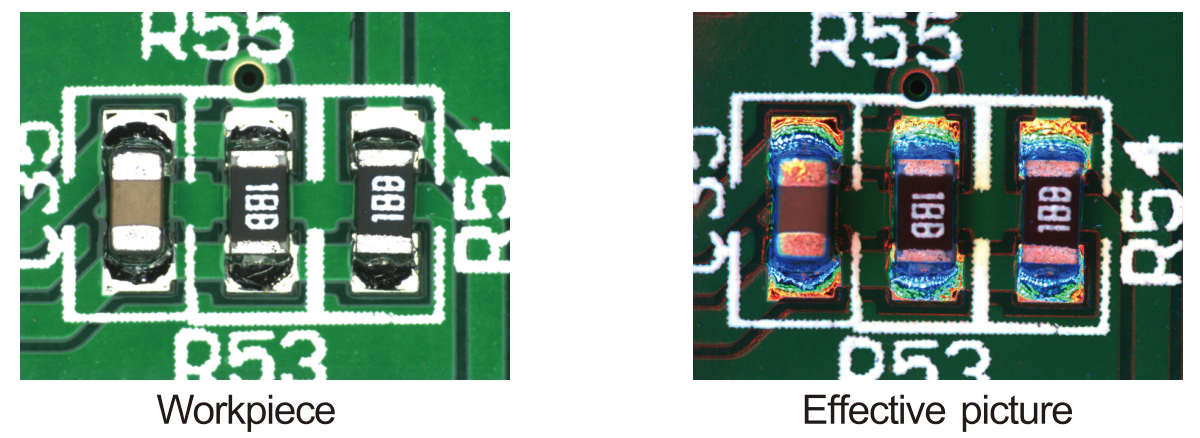

- Accurately highlights surface texture/layer information of objects.
Specifications
| Model | LS-AOI-73 |
|---|---|
| Voltage (V) | 24 |
| Power R (W) | 4 |
| Power G (W) | 5 |
| Power B (W) | 6 |
| OD x ID x H (mm) | 73x8x25.8 |
| Colours | Red, Green, Blue |
| Colors | R, G, B (power listed separately per colour) |
| Model code | LS-AOI-<outer diameter>-<color>, e.g. LS-AOI-200-RGB |

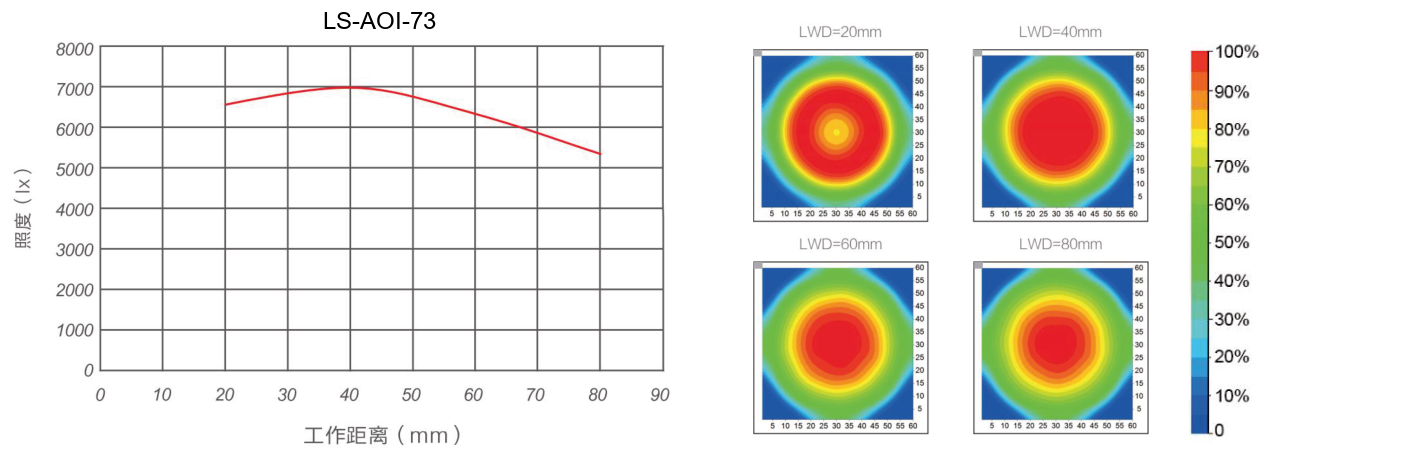

| Illumination chart | LS-AOI-73: illuminance (lx) vs working distance (mm); uniformity maps at LWD 20/40/60/80 mm (last two both labelled 'LWD=80mm' in the catalog) |
| Shipping weight (estimated) | 0.30 kg |
Mounting and drawing data

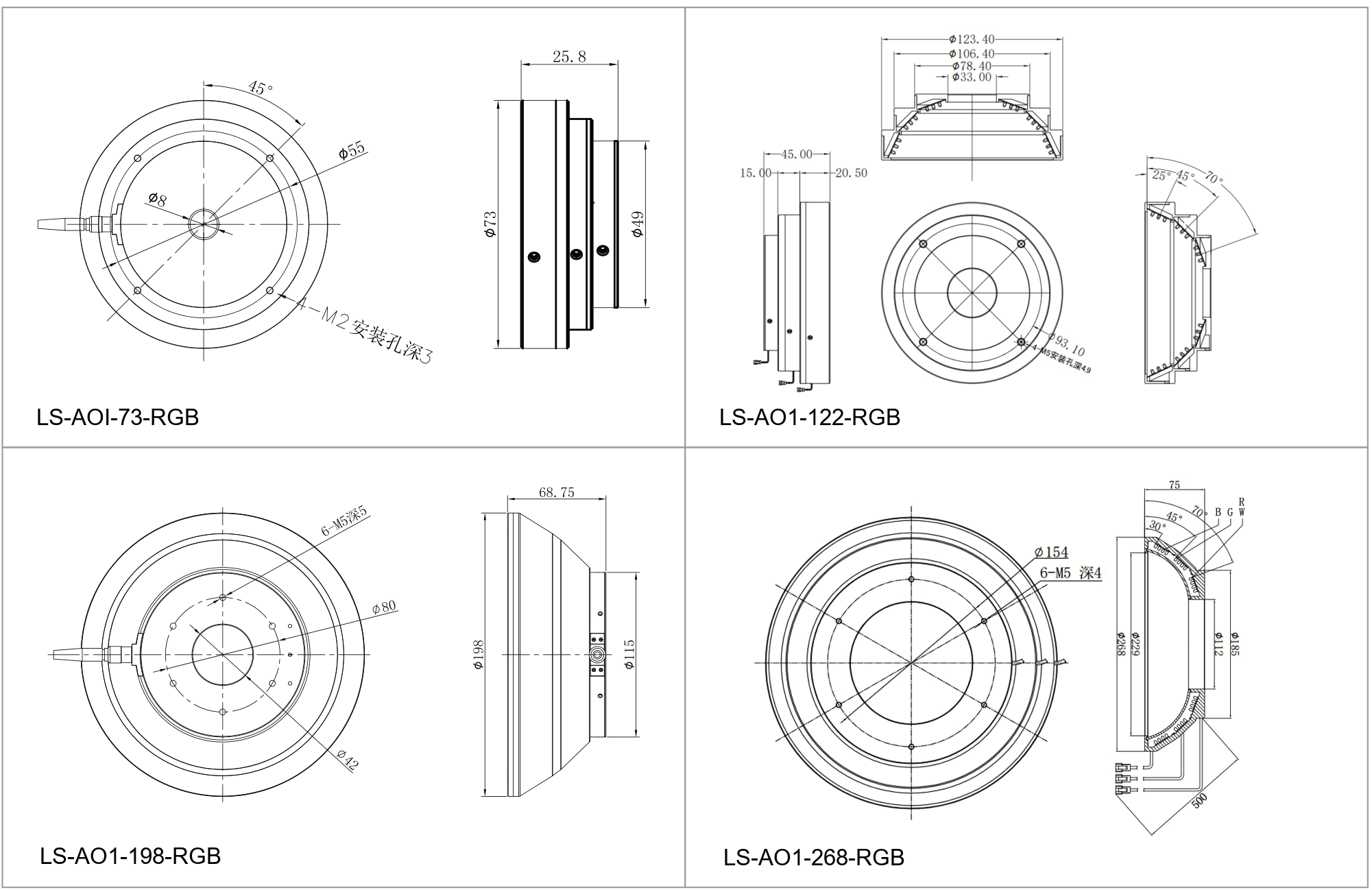

drawing : drawn as LS-AOI-73-RGB: body φ73, rear φ49, length 25.8, ID φ8; 4-M2 mounting holes depth 3 on φ55 at 45°
Applications
- PCB solder inspection
- Multi-level surface defect detection
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
Light controllers LensesSelection guideOther sizes in the AOI light (AOI) series
| Model | Size | Power | Colours | Price | |
|---|---|---|---|---|---|
| LS-AOI-122 | 123.4 mm OD | 7.5 W | $479.00 | View | |
| LS-AOI-198 | 198 mm OD | 23 W | $729.00 | View | |
| LS-AOI-268 | 268 mm OD | 31 W | $969.00 | View |
