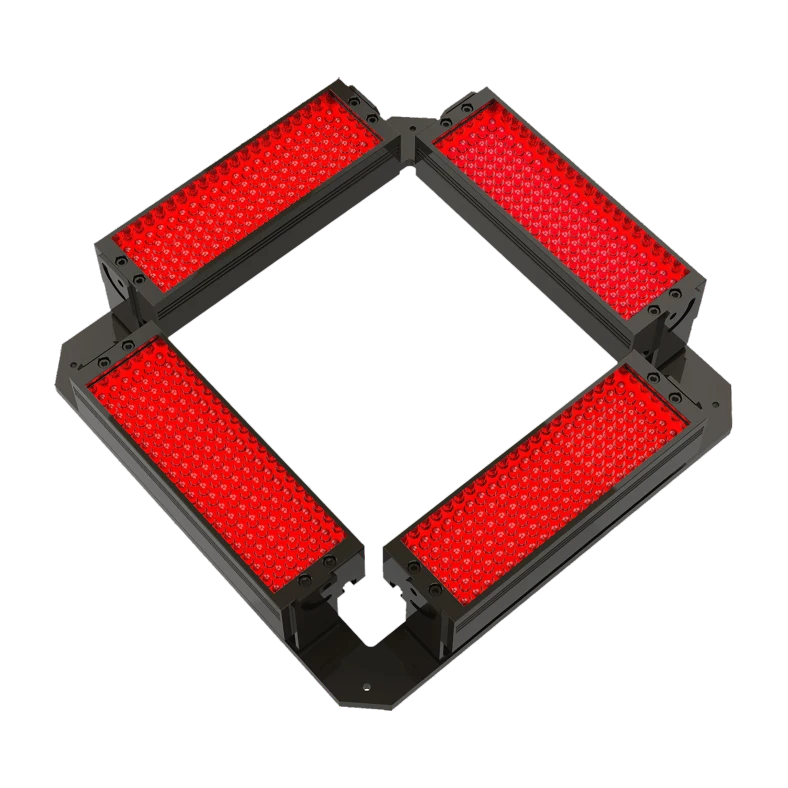

80 x 80 mm Four-Bar Square LED Bar Light (LS-MLB-80X80)
Model LS-MLB-80X80
80 x 80 mm Four-Bar Square LED Bar Light. Combined bar light (four bar lights on a square frame) for large-size product defect detection, character recognition, positioning and identification. The angle can be customized and each bar light can be controlled independently.
Features
- Can be customized angle.
- Control each bar light independently.
Specifications
| Model | LS-MLB-80X80 |
|---|---|
| Voltage (V) | 24 |
| Power R (W) | 10 |
| Power G/B/W (W) | 12 |
| Outer size LxWxH (mm) | 141x141x43 |
| Colours | Red, Green, Blue, White |
| LED colour options (legend) | R / G / B / W / IR / UV |
| Colours shown per model | R, G, B, W |
| Shipping weight (estimated) | 0.80 kg |
Mounting and drawing data

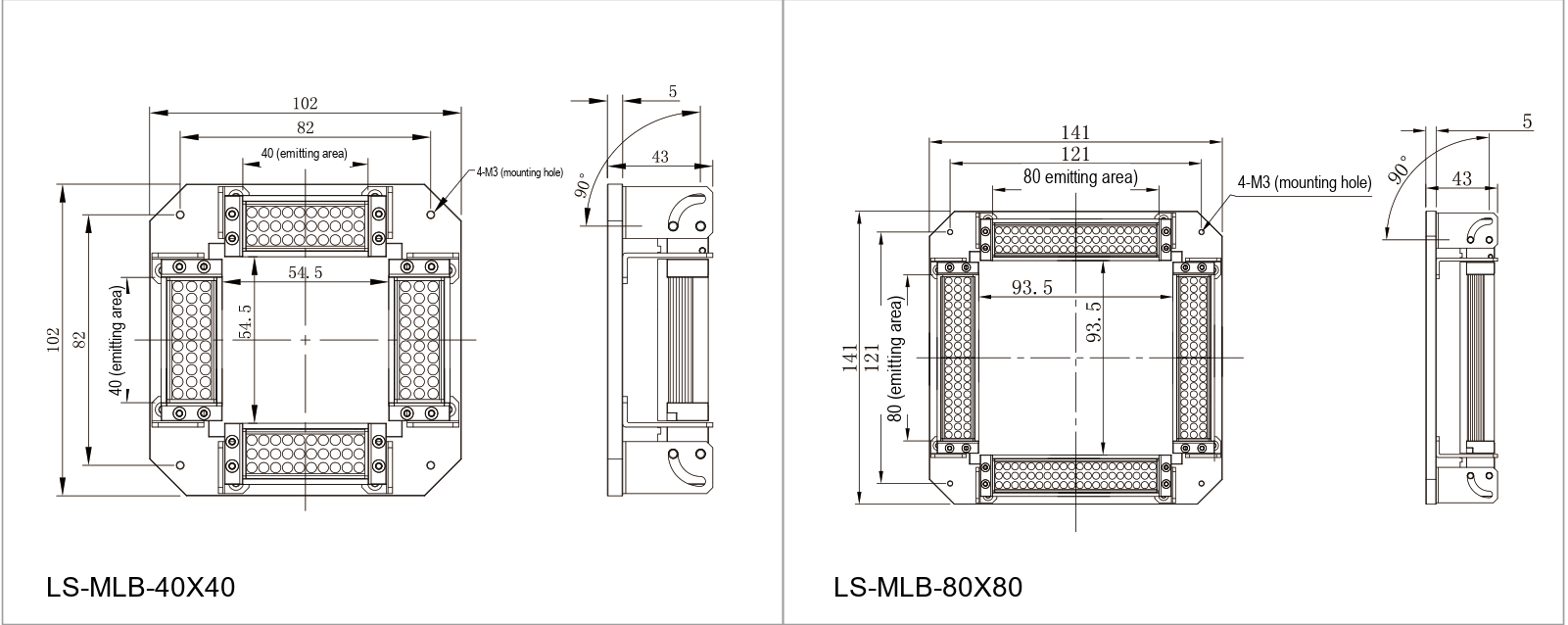

drawing: outer 141, mounting-hole pitch 121, emitting 80 per bar, inner opening 93.5x93.5, depth 43, 4-M3 mounting holes, bars tilt up to 90 deg, 5 offset
Applications
- Large size product defect detection
- Character recognition
- Positioning
- Identification
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.

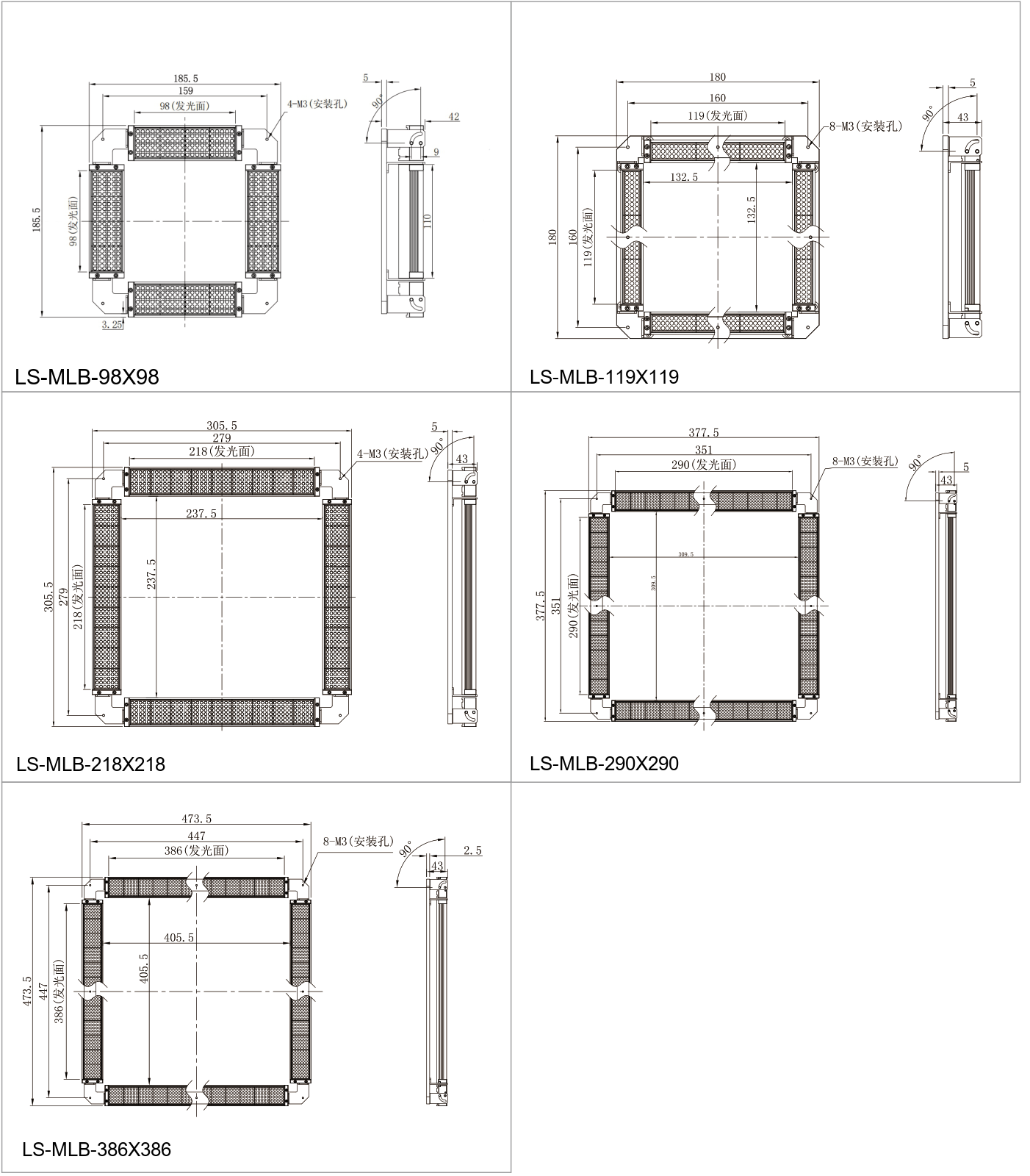

Light controllers LensesSelection guideOther sizes in the Combined bar light (MLB series) series
| Model | Size | Power | Colours | Price | |
|---|---|---|---|---|---|
| LS-MLB-40X40 | 40 x 40 mm | 6 W | $389.00 | View | |
| LS-MLB-119X119 | 119 x 119 mm | 22 W | $549.00 | View | |
| LS-MLB-98X98 | 98 x 98 mm | 16 W | $559.00 | View | |
| LS-MLB-218X218 | 218 x 218 mm | 52 W | $809.00 | View | |
| LS-MLB-290X290 | 290 x 290 mm | 72 W | $969.00 | View | |
| LS-MLB-386X386 | 386 x 386 mm | 96 W | $1,169.00 | View |
