Home / Lenses / 1.2 inch 25MP industrial lens (XTY..25C)

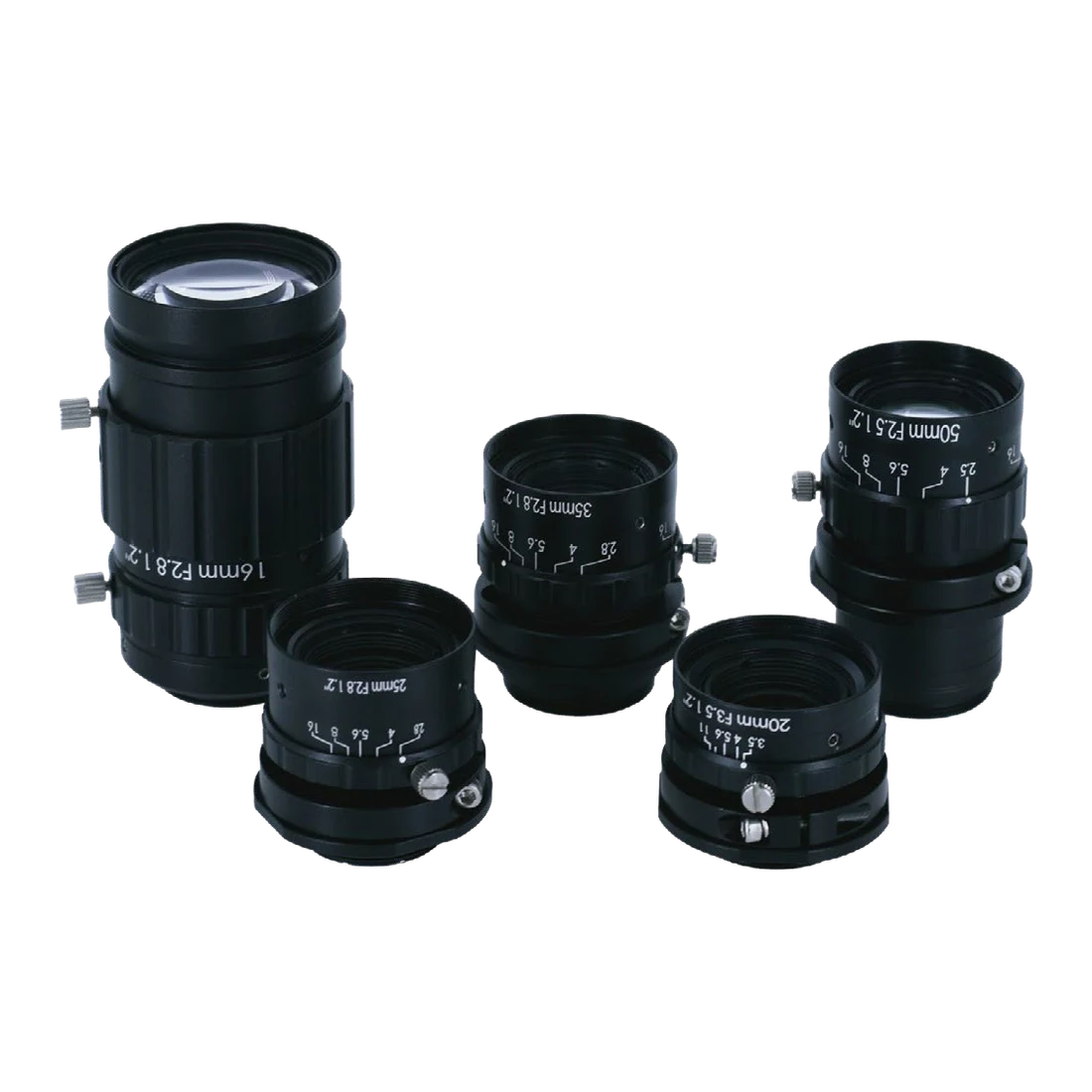

16 mm, 1.2", 25MP, C-mount Machine Vision Lens (LS-XTY1625C)

Lenses

16 mm, 1.2", 25MP, C-mount Machine Vision Lens (LS-XTY1625C)

Model LS-XTY1625C

16 mm, 1.2", 25MP, C-mount Machine Vision Lens. 1.2 Inch 25MP Industrial Lens.

$219.00 USD
0.45 kg shipping weight · Ships in 2-3 weeks
Secure card checkout · ships from the USA.

Features

  • High resolution
  • Low distortion
  • Max support 1.2 Inch

Specifications

ModelXTY1625C
Focal length (mm)16
Iris (F/#)2.8-16
Working distance (mm)150-INF.
Distortion (%)< -1.30
Filter screw size/
Format size (")1.2
MountC
Shipping weight (estimated)0.45 kg

Mounting and drawing data

Filter screw size printed '/'

Complete the station

Drive the light from a light controller and pair it with a lens for your field of view and working distance.

Light controllers LensesSelection guide

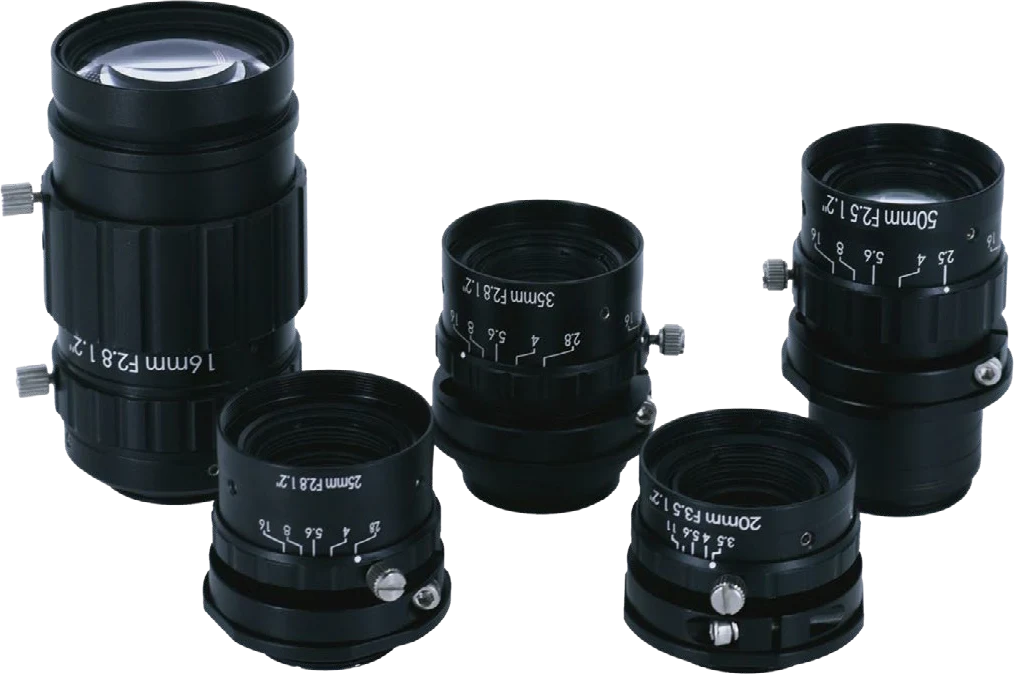

Other sizes in the 1.2 inch 25MP industrial lens (XTY..25C) series

ModelSizePowerColoursPrice
LS-XTY2025C20 mm, 1.2", 25MP, C-mount $229.00 View
LS-XTY2525C25 mm, 1.2", 25MP, C-mount $229.00 View
LS-XTY3525C35 mm, 1.2", 25MP, C-mount $239.00 View
LS-XTY5025C50 mm, 1.2", 25MP, C-mount $259.00 View
