16 mm, 1.1", 20MP, C-mount Machine Vision Lens (LS-XTY1620C)

Lenses

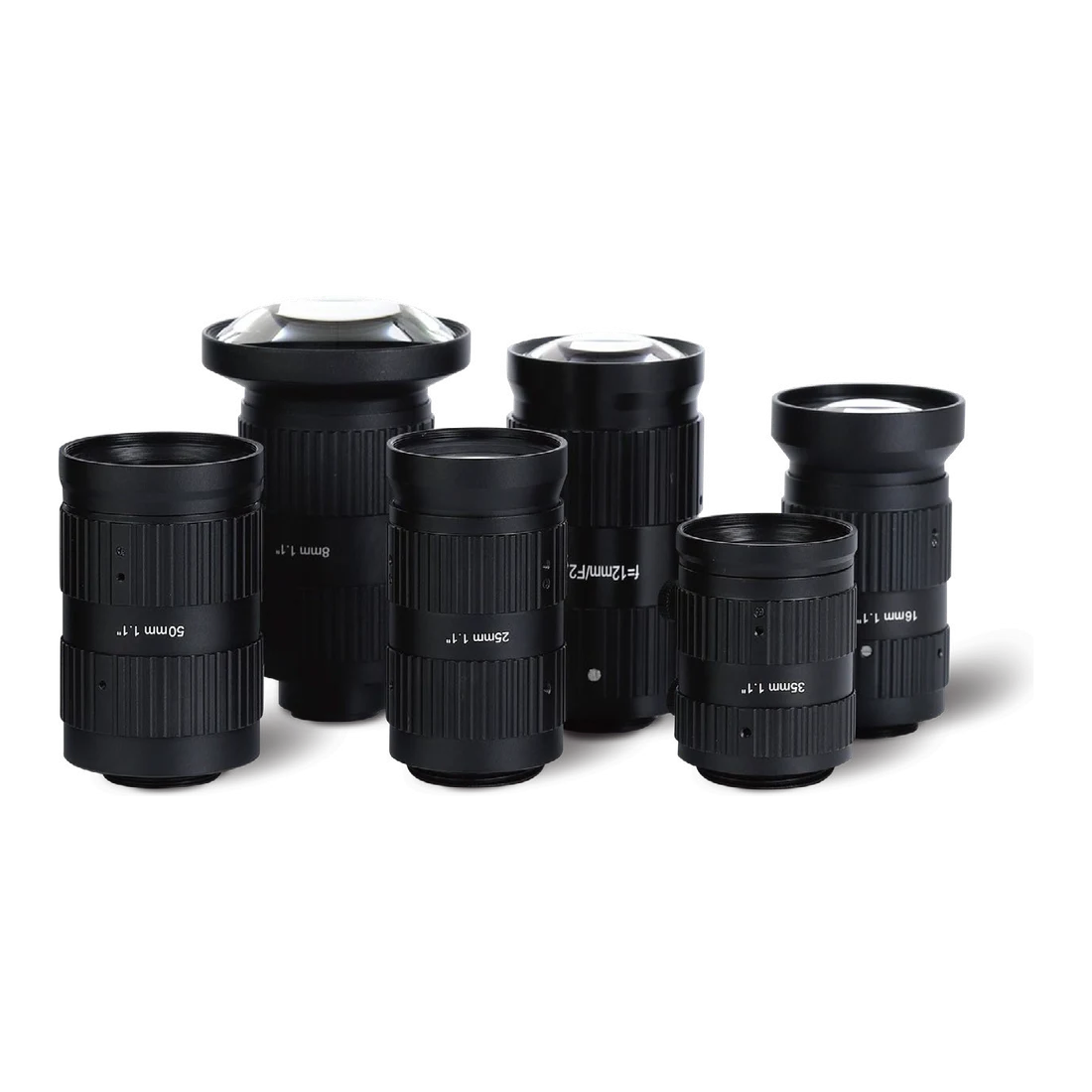

16 mm, 1.1", 20MP, C-mount Machine Vision Lens (LS-XTY1620C)

Model LS-XTY1620C

16 mm, 1.1", 20MP, C-mount Machine Vision Lens. 1-1.1 Inch 20MP Industrial Lens.

$219.00 USD
0.45 kg shipping weight · Ships in 2-3 weeks
Secure card checkout · ships from the USA.

Features

  • High resolution
  • Low distortion
  • Max support 1.1 Inch

Specifications

ModelXTY1620C
Focal length (mm)16
Iris (F/#)2.4-16
Working distance (mm)100-INF.
Distortion (%)< 0.3
Relative illumination (%)> 65
Filter screw sizeM40.5 * P0.5
Format size (")1.1
MountC
Shipping weight (estimated)0.45 kg
Complete the station

Drive the light from a light controller and pair it with a lens for your field of view and working distance.

Light controllers LensesSelection guide

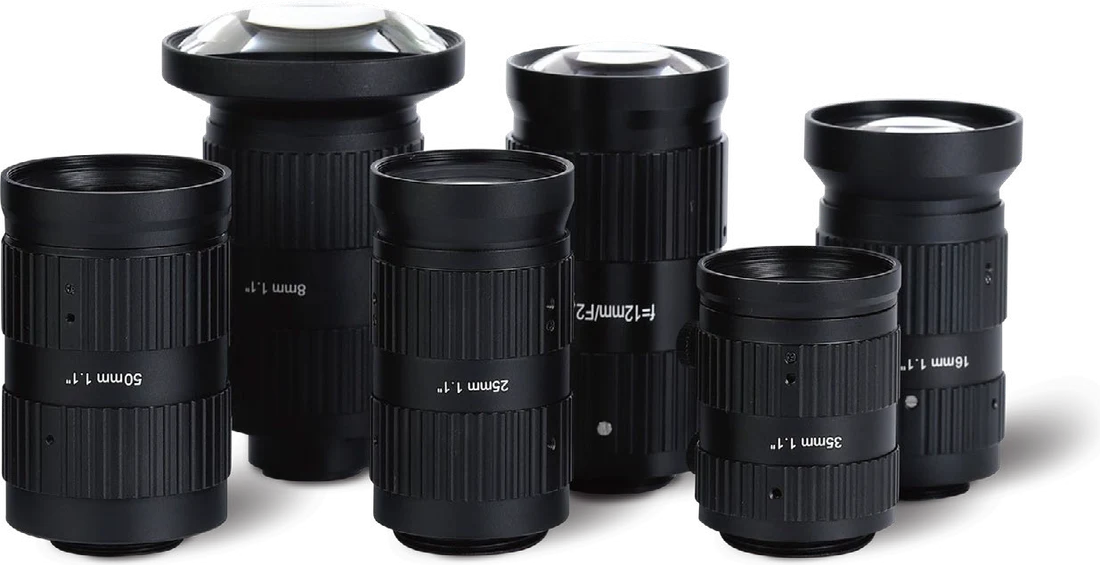

Other sizes in the 1-1.1 inch 20MP industrial lens (XTY..20C) series

ModelSizePowerColoursPrice
LS-XTY2520C25 mm, 1.1", 20MP, C-mount $229.00 View
LS-XTY3520C35 mm, 1.1", 20MP, C-mount $239.00 View
LS-XTY5020C50 mm, 1.1", 20MP, C-mount $259.00 View
