Lenses

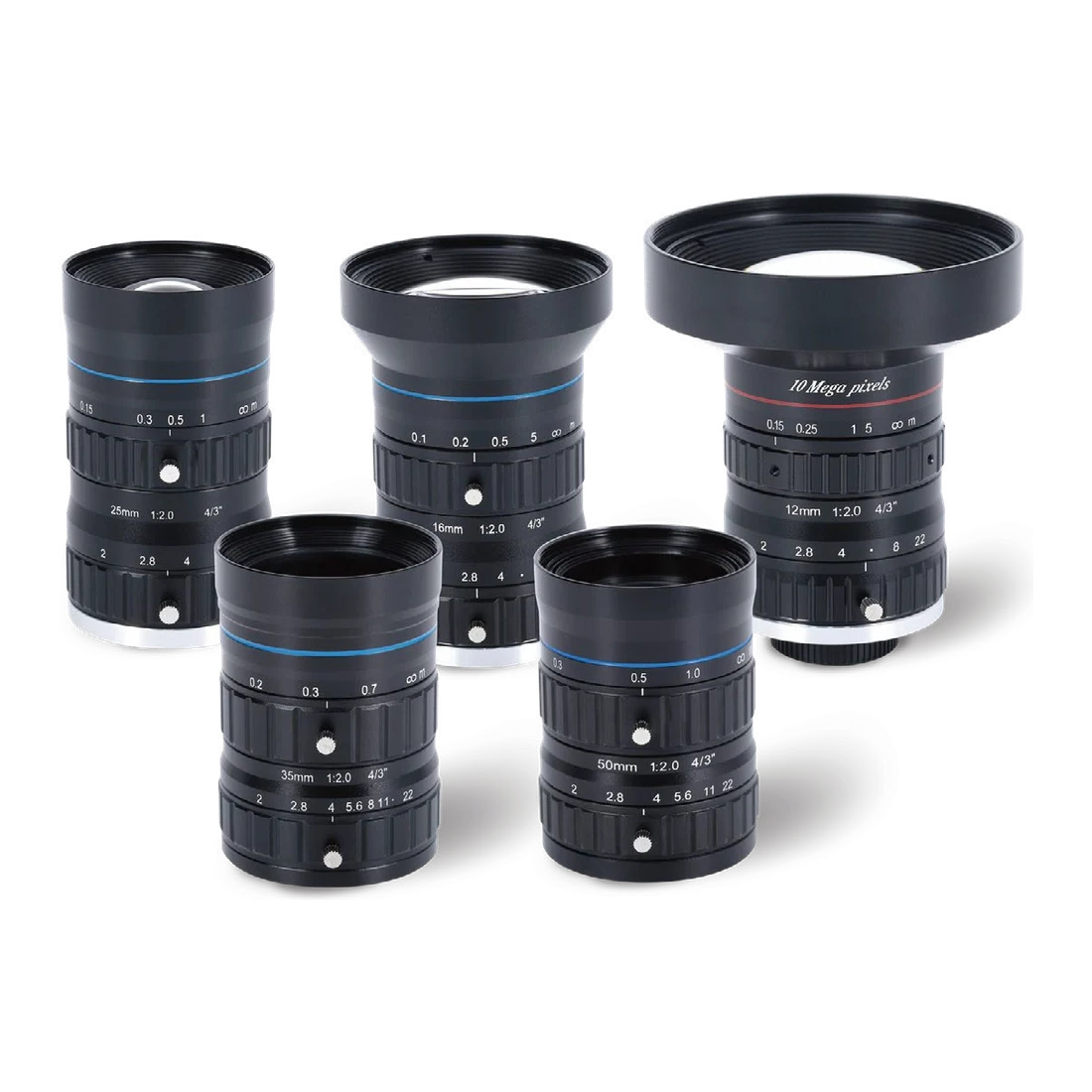

12 mm, 4/3", C-mount Machine Vision Lens (LS-XTY1243)
Model LS-XTY1243
12 mm, 4/3", C-mount Machine Vision Lens. 4/3 Inch Industrial Lens.
Features
- High resolution
- Low distortion
- Max support 4/3 Inch
Specifications
| Model | XTY1243 |
|---|---|
| Focal length (mm) | 12 |
| Iris (F/#) | 2.0-22 |
| Working distance (mm) | 150-INF. |
| Distortion (%) | < 2.05 |
| Relative illumination (%) | > 40 |
| Filter screw size | M77 * P0.5 |
| Format size (") | 4/3 |
| Mount | C |
| Shipping weight (estimated) | 0.45 kg |
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.

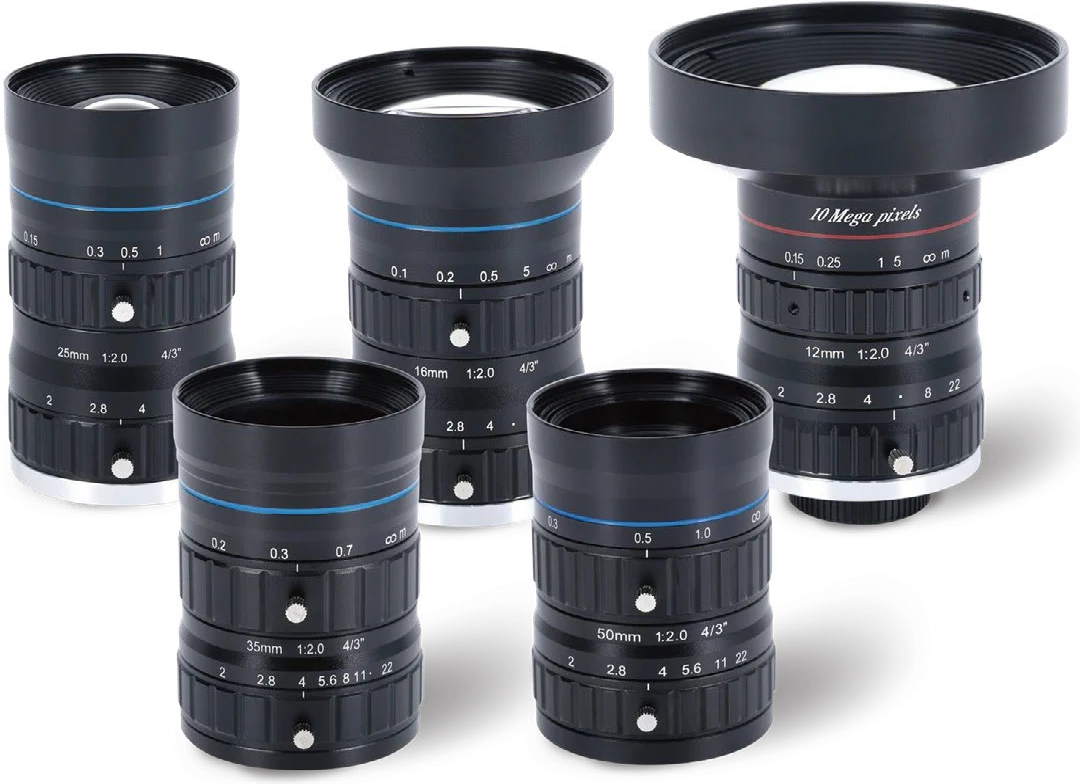

Light controllers LensesSelection guideOther sizes in the 4/3 inch industrial lens (XTY..43) series
| Model | Size | Power | Colours | Price | |
|---|---|---|---|---|---|
| LS-XTY1643 | 16 mm, 4/3", C-mount | $169.00 | View | ||
| LS-XTY2543 | 25 mm, 4/3", C-mount | $179.00 | View | ||
| LS-XTY3543 | 35 mm, 4/3", C-mount | $189.00 | View | ||
| LS-XTY5043 | 50 mm, 4/3", C-mount | $199.00 | View |
