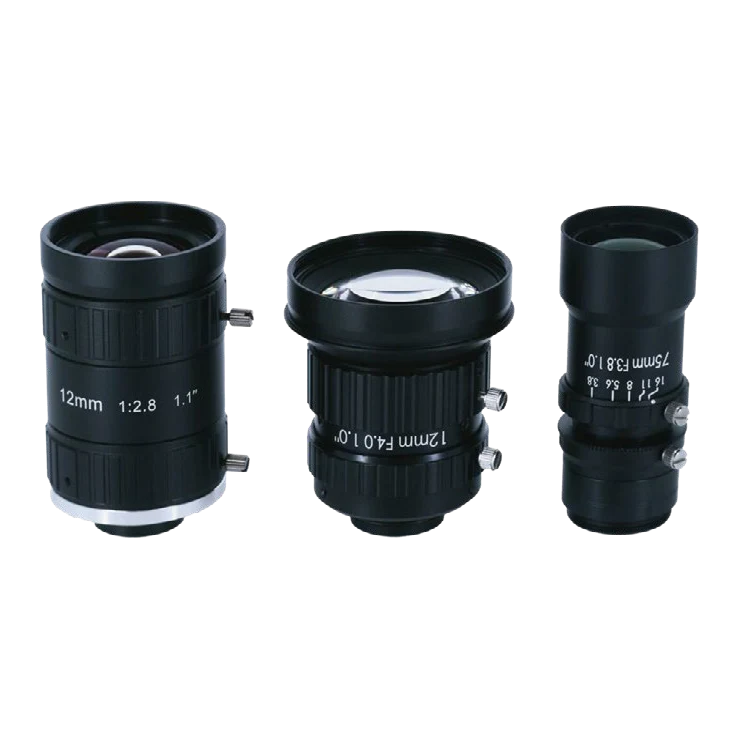

12 mm, 1.1", 20MP, C-mount Machine Vision Lens (LS-XTY1228C)
Model LS-XTY1228C
12 mm, 1.1", 20MP, C-mount Machine Vision Lens. 1-1.1 Inch 20MP Industrial Lens.
Features
- High resolution
- Low distortion
Specifications
| Model | XTY1228C |
|---|---|
| Focal length (mm) | 12 |
| Iris (F/#) | 2.8-22 |
| Working distance (mm) | 100-INF. |
| Distortion (%) | < -0.85 |
| Filter screw size | M37.5 * P0.5 |
| Format size (") | 1.1 |
| Mount | C |
| Shipping weight (estimated) | 0.45 kg |
Mounting and drawing data
No relative-illumination column in this table
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.

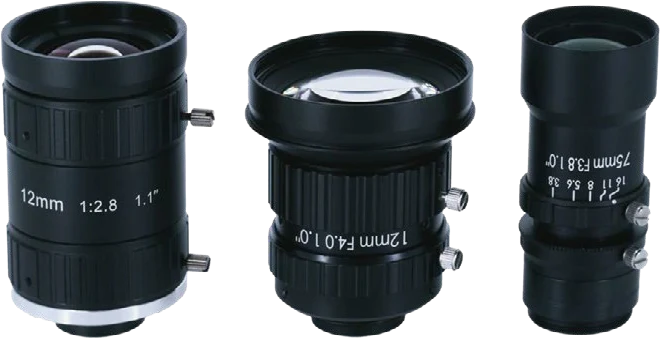

Light controllers LensesSelection guideOther sizes in the 1-1.1 inch 20MP industrial lens (XTY1240C / XTY7538C / XTY1228C) series
| Model | Size | Power | Colours | Price | |
|---|---|---|---|---|---|
| LS-XTY1240C | 12 mm, 1", 20MP, C-mount | $219.00 | View | ||
| LS-XTY7538C | 75 mm, 1", 20MP, C-mount | $289.00 | View |
