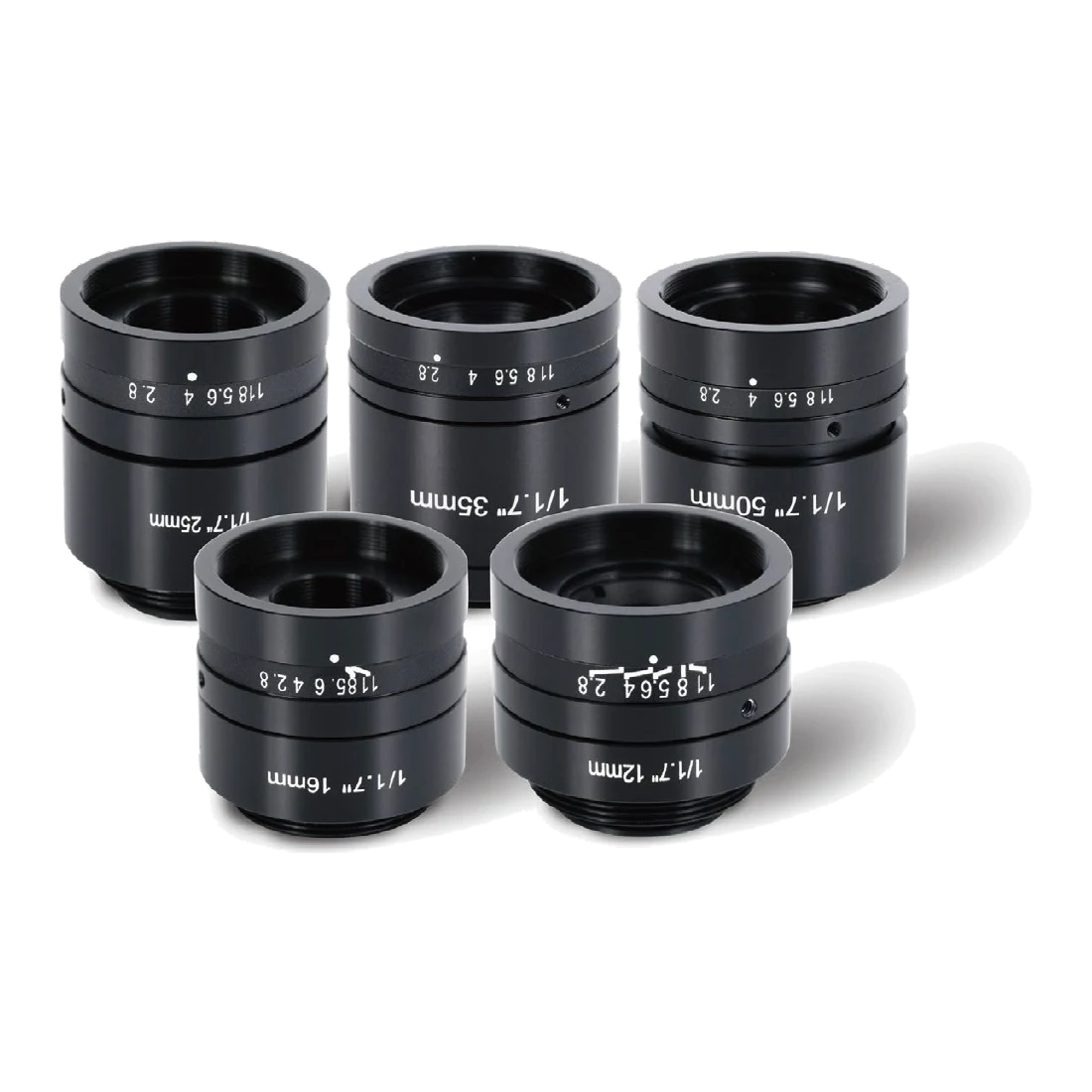

12 mm, 1/1.7", 12MP, C-mount Machine Vision Lens (LS-XTY1217C)

Lenses

12 mm, 1/1.7", 12MP, C-mount Machine Vision Lens (LS-XTY1217C)

Model LS-XTY1217C

12 mm, 1/1.7", 12MP, C-mount Machine Vision Lens. 1/1.7 Inch 12Mp Industrial Lens.

$99.00 USD
0.30 kg shipping weight · Ships in 2-3 weeks
Secure card checkout · ships from the USA.

Features

  • High resolution
  • Threadless structure
  • Max support 2/3 Inch

Specifications

ModelXTY1217C
Iris (F/#)2.8-11
Working distance (mm)50-INF.
Distortion (%)< -0.7
Relative illumination (%)> 83
Filter screw sizeM27 * P0.5
Format size (")1/1.7
MountC
Shipping weight (estimated)0.30 kg

Mounting and drawing data

Focal length not a table column; barrel in photo marked 12mm

Complete the station

Drive the light from a light controller and pair it with a lens for your field of view and working distance.

Light controllers LensesSelection guide

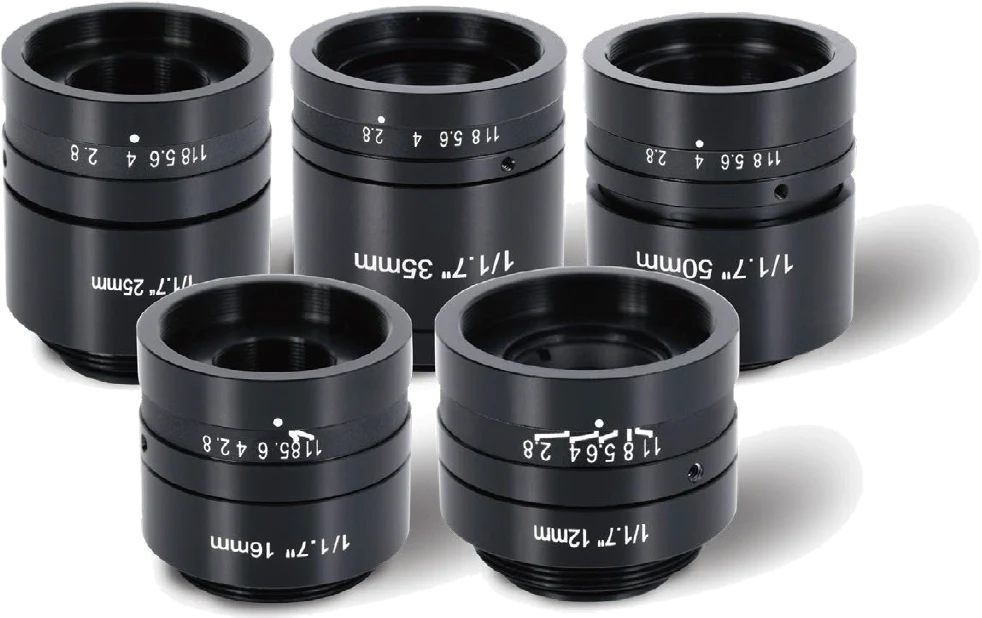

Other sizes in the 1/1.7 inch 12MP industrial lens (XTY..17C) series

ModelSizePowerColoursPrice
LS-XTY1617C16 mm, 1/1.7", 12MP, C-mount $99.00 View
LS-XTY2517C25 mm, 1/1.7", 12MP, C-mount $99.00 View
LS-XTY3517C35 mm, 1/1.7", 12MP, C-mount $99.00 View
LS-XTY5017C50 mm, 1/1.7", 12MP, C-mount $99.00 View
