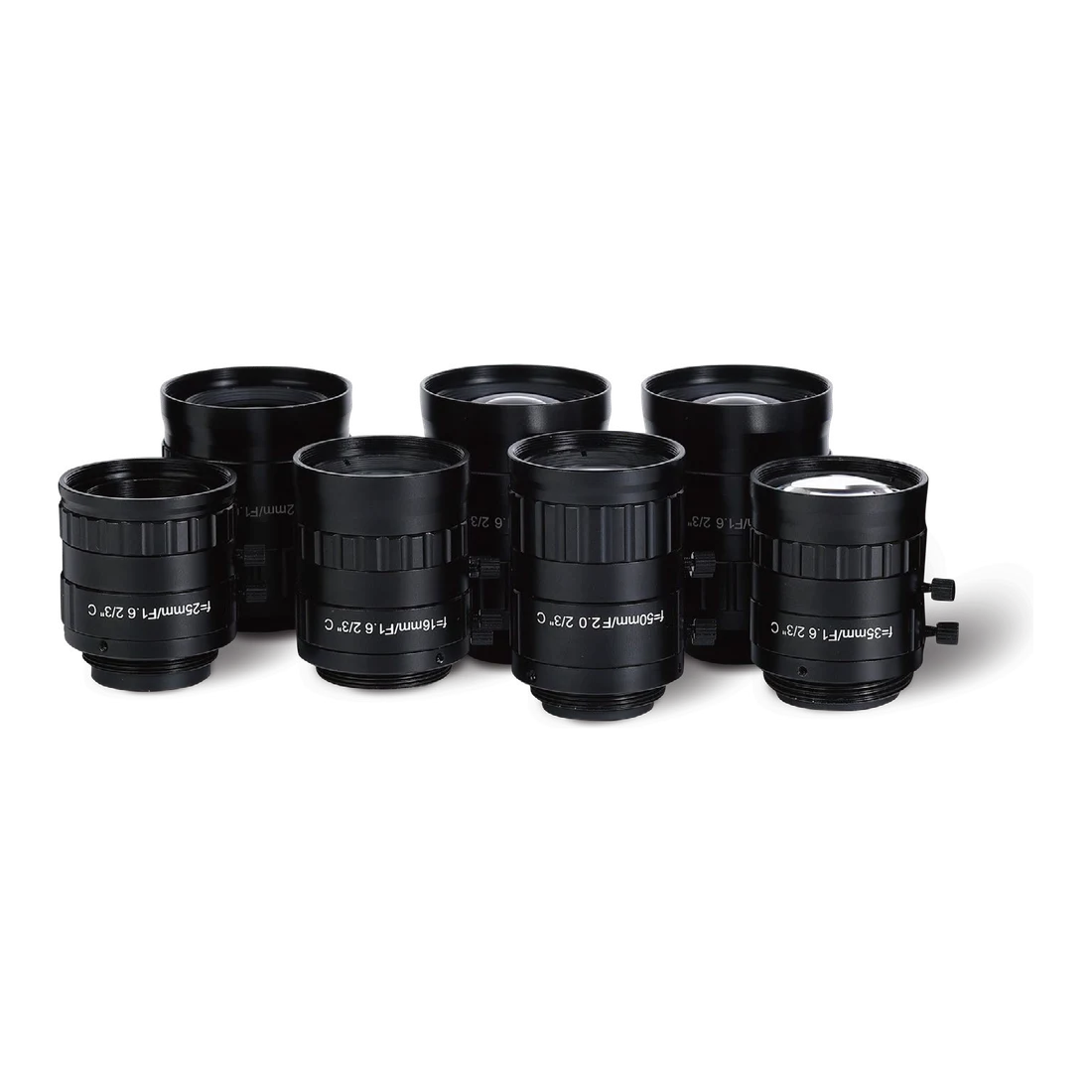

8 mm, 2/3", 12MP, C-mount Machine Vision Lens (LS-XTY085C)
Model LS-XTY085C
8 mm, 2/3", 12MP, C-mount Machine Vision Lens. 2/3 Inch 12 MP Industrial Lens.
Features
- High contrast for binary (black-and-white) images
- High brightness uniformity
- Max support 2/3 Inch
Specifications
| Model | XTY085C |
|---|---|
| Focal length (mm) | 8 |
| Iris (F/#) | 2.8-11 |
| Working distance (mm) | 150-INF. |
| Distortion (%) | < 1.19 |
| Relative illumination (%) | > 70 |
| Filter screw size | / |
| Format size (") | 2/3 |
| Mount | C |
| Shipping weight (estimated) | 0.30 kg |
Mounting and drawing data
Filter screw size printed '/'
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.

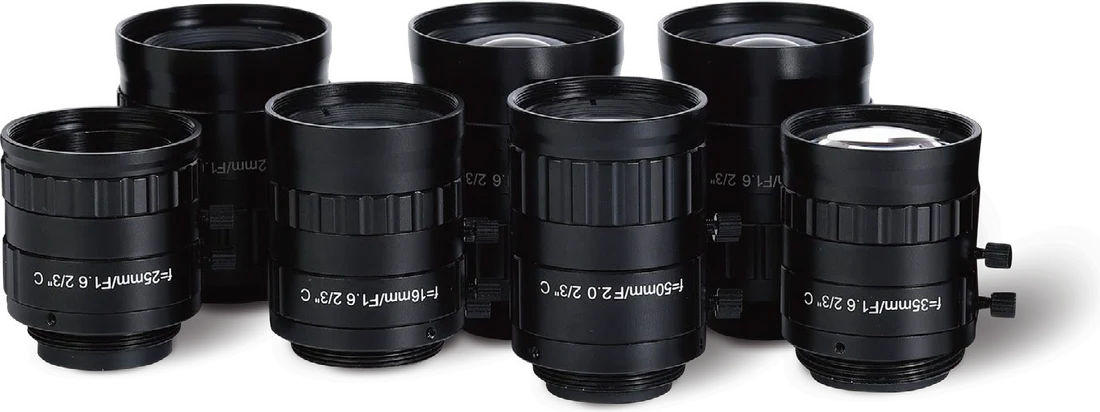

Light controllers LensesSelection guideOther sizes in the 2/3 inch 12MP industrial lens (XTY..5C / SWD..5C) series
| Model | Size | Power | Colours | Price | |
|---|---|---|---|---|---|
| LS-XTY125C | 12 mm, 2/3", 12MP, C-mount | $79.00 | View | ||
| LS-XTY165C | 16 mm, 2/3", 12MP, C-mount | $89.00 | View | ||
| LS-XTY255C | 25 mm, 2/3", 12MP, C-mount | $99.00 | View | ||
| LS-XTY355C | 35 mm, 2/3", 12MP, C-mount | $109.00 | View | ||
| LS-SWD355C | 35 mm, 2/3", 12MP, C-mount | $109.00 | View | ||
| LS-XTY505C | 50 mm, 2/3", 12MP, C-mount | $129.00 | View | ||
| LS-SWD505C | 50 mm, 2/3", 12MP, C-mount | $129.00 | View |
