Home / Lenses / 1.1 inch 12MP macro lens (SRW..11C)

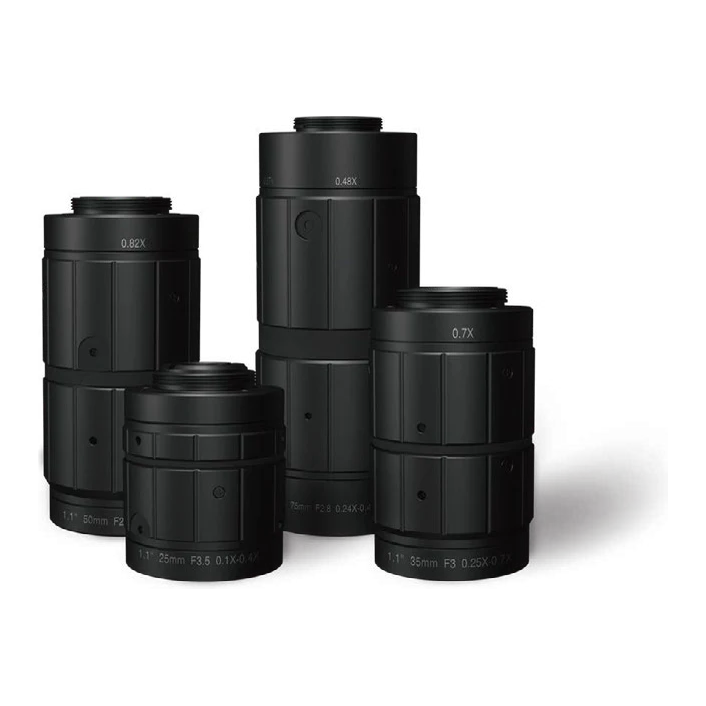

35 mm, 1.1", 12MP, C-mount Macro Lens (LS-SRW3511C)

Lenses

35 mm, 1.1", 12MP, C-mount Macro Lens (LS-SRW3511C)

Model LS-SRW3511C

35 mm, 1.1", 12MP, C-mount Macro Lens. 1.1 Inch 12MP Macro Lens.

$219.00 USD
0.50 kg shipping weight · Ships in 2-3 weeks
Secure card checkout · ships from the USA.

Features

  • High resolution
  • Low distortion

Specifications

ModelSRW3511C
Focal length (mm)35
Iris (F/#)3.0-16
Magnification range (X)0.25-0.70
Working distance (mm)56.21-129.80
Distortion (%)< 0.03
Relative illumination (%)> 90
Filter screw sizeM34 * P0.5
Format size (")1.1
MountC
Shipping weight (estimated)0.50 kg
Complete the station

Drive the light from a light controller and pair it with a lens for your field of view and working distance.

Light controllers LensesSelection guide

Other sizes in the 1.1 inch 12MP macro lens (SRW..11C) series

ModelSizePowerColoursPrice
LS-SRW2511C25 mm, 1.1", 12MP, C-mount $209.00 View
LS-SRW5011C50 mm, 1.1", 12MP, C-mount $239.00 View
LS-SRW7511C75 mm, 1.1", 12MP, C-mount $259.00 View
