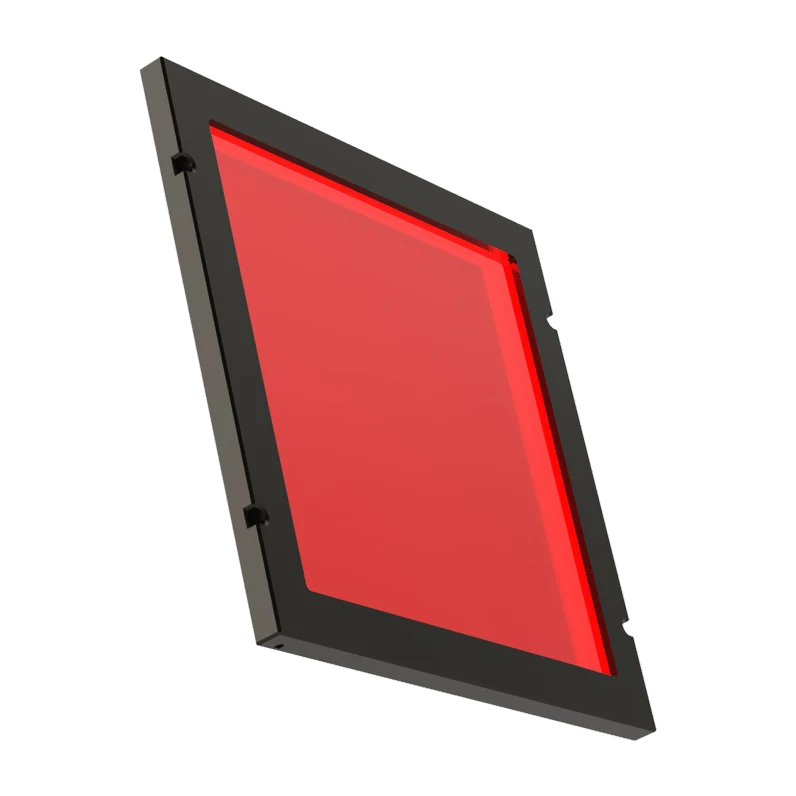

150 x 150 mm Flat Dome Light (LS-SF-150X150)
Model LS-SF-150X150
150 x 150 mm Flat Dome Light. Flat dome light: a thin square panel that lights the part through a light-guide diffuser plate. High output suits high-speed inspection, in a lightweight, compact design that installs with screw-thread grooves.
Features
- High output suitable for high-speed inspection.
- Installation with screw-thread grooves.
- Light weight and compact design.
Specifications
| Model | LS-SF-150X150 |
|---|---|
| Voltage (V) | 24 |
| Power R (W) | 10.8 |
| Power G/B/W (W) | 13.5 |
| L x W x H (mm) | 190x190x11 |
| Colours | Red, Green, Blue, White |
| Shipping weight (estimated) | 0.40 kg |

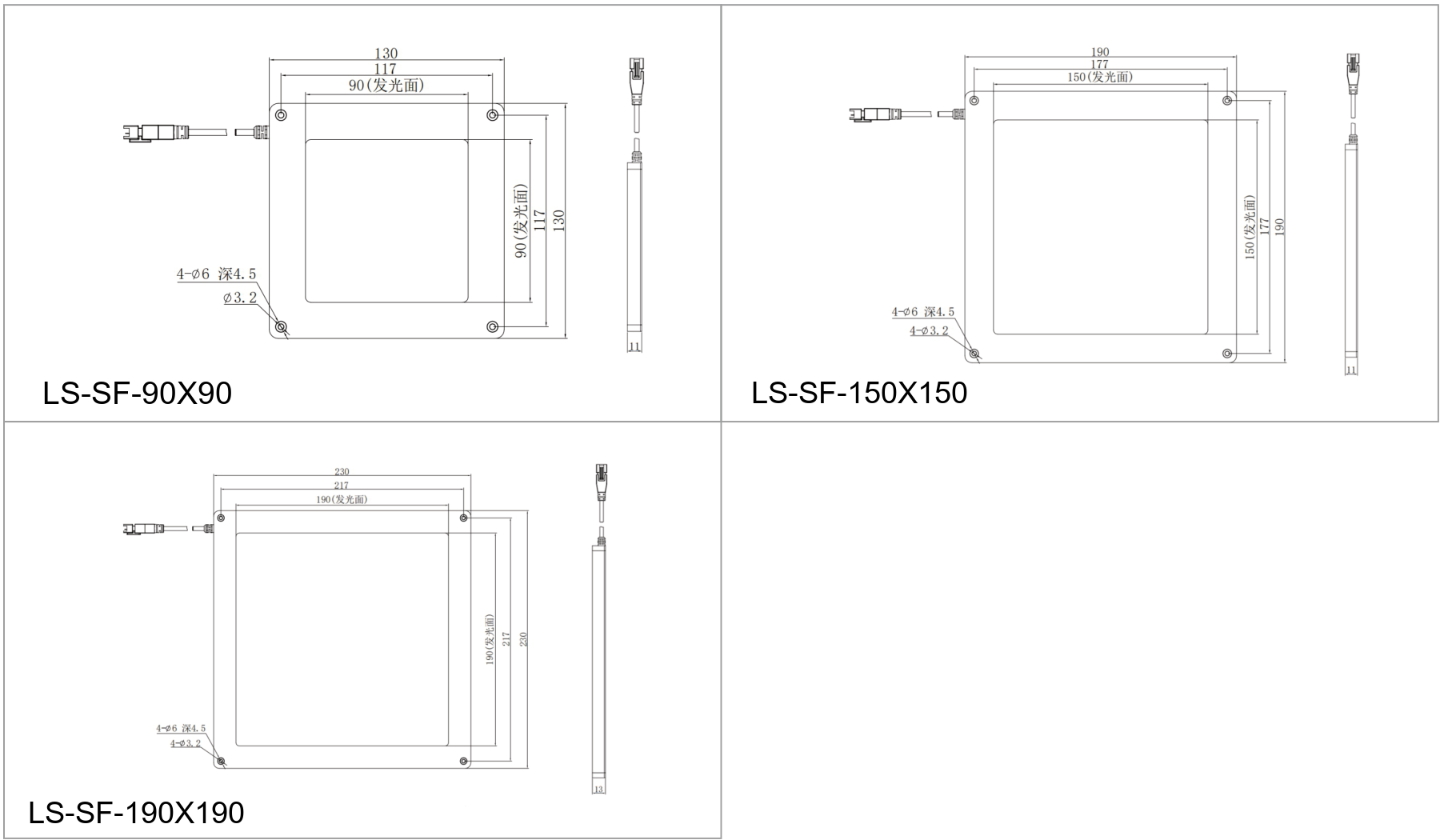

Mounting and drawing data
emitting area 150 x 150; drawing: 4 x dia 6 depth 4.5 / 4 x dia 3.2, 177 x 177 pattern

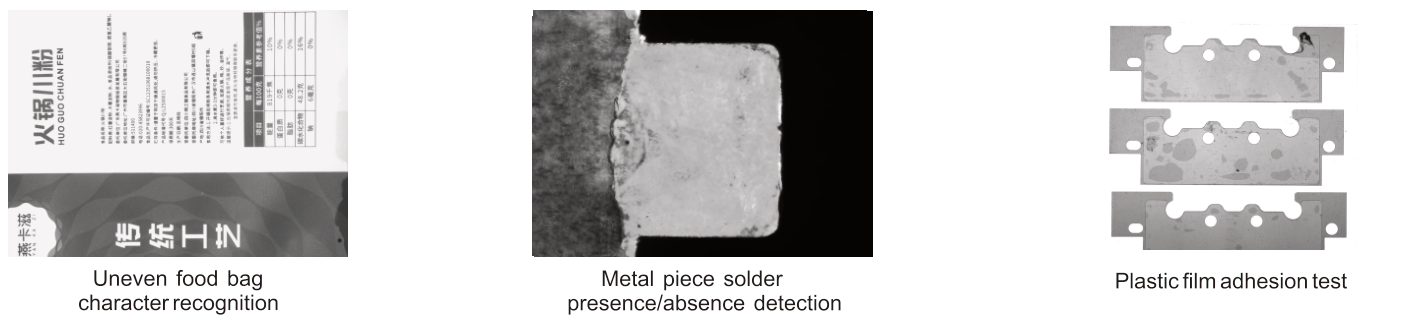

Applications
- Metal, curved, textured surface inspection (appearance & printing)
- Food/packaging character recognition
- Can surface printing check
- Uneven food bag character recognition
- Metal piece solder presence/absence detection
- Plastic film adhesion test
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.

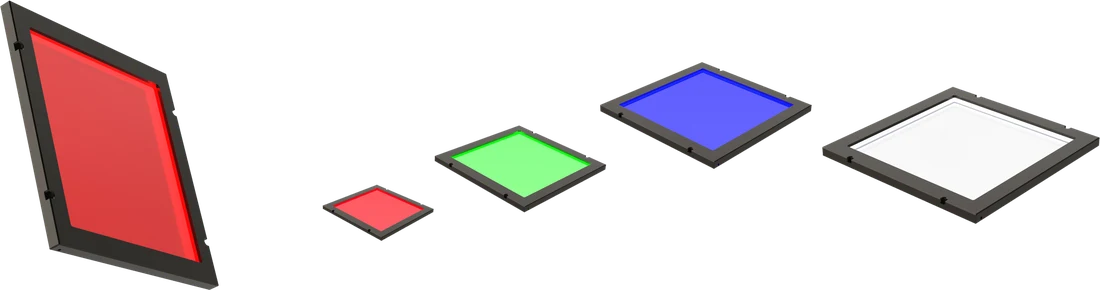

Light controllers LensesSelection guideOther sizes in the Flat dome light (SF series) series
| Model | Size | Power | Colours | Price | |
|---|---|---|---|---|---|
| LS-SF-90X90 | 90 x 90 mm | 10 W | $299.00 | View | |
| LS-SF-190X190 | 190 x 190 mm | 19 W | $669.00 | View |
