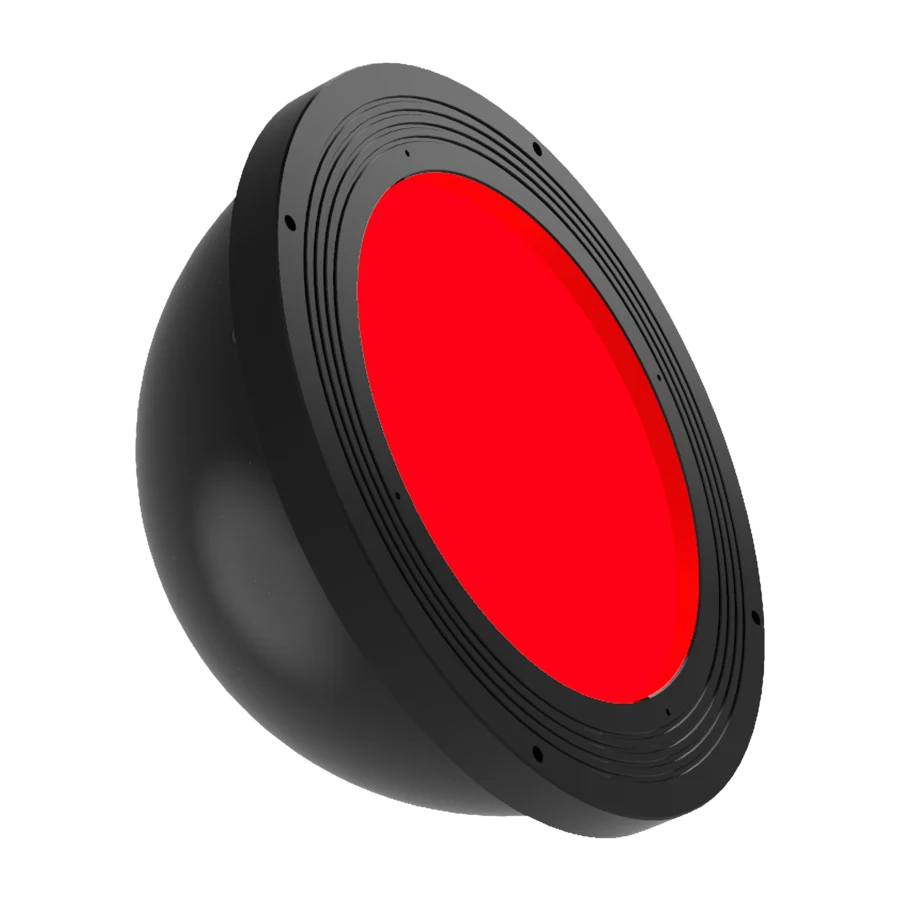

116 mm OD Dome Light (LS-SD-100)
Model LS-SD-100

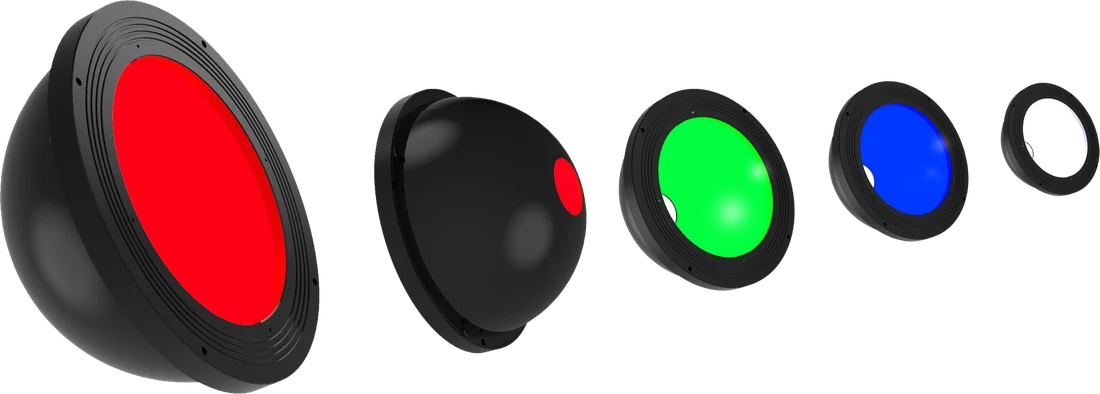

116 mm OD Dome Light. Hemispherical dome light with an excellent shadow-free effect, a large illumination area and high uniformity. Each model has a camera hole in the top of the dome (hole diameter listed per model).
Features
- Excellent shadowless-free effect.
- Large illumination area.
- High uniformity.
Specifications
| Model | LS-SD-100 |
|---|---|
| Voltage (V) | 24 |
| Power R (W) | 8 |
| Power G/B/W (W) | 12 |
| Hole dia (mm) | 25 |
| OD x H (mm) | 116x57 |
| Colours | Red, Green, Blue, White |
| Cable lead (mm, per drawings) | 500 |
| Shipping weight (estimated) | 0.50 kg |

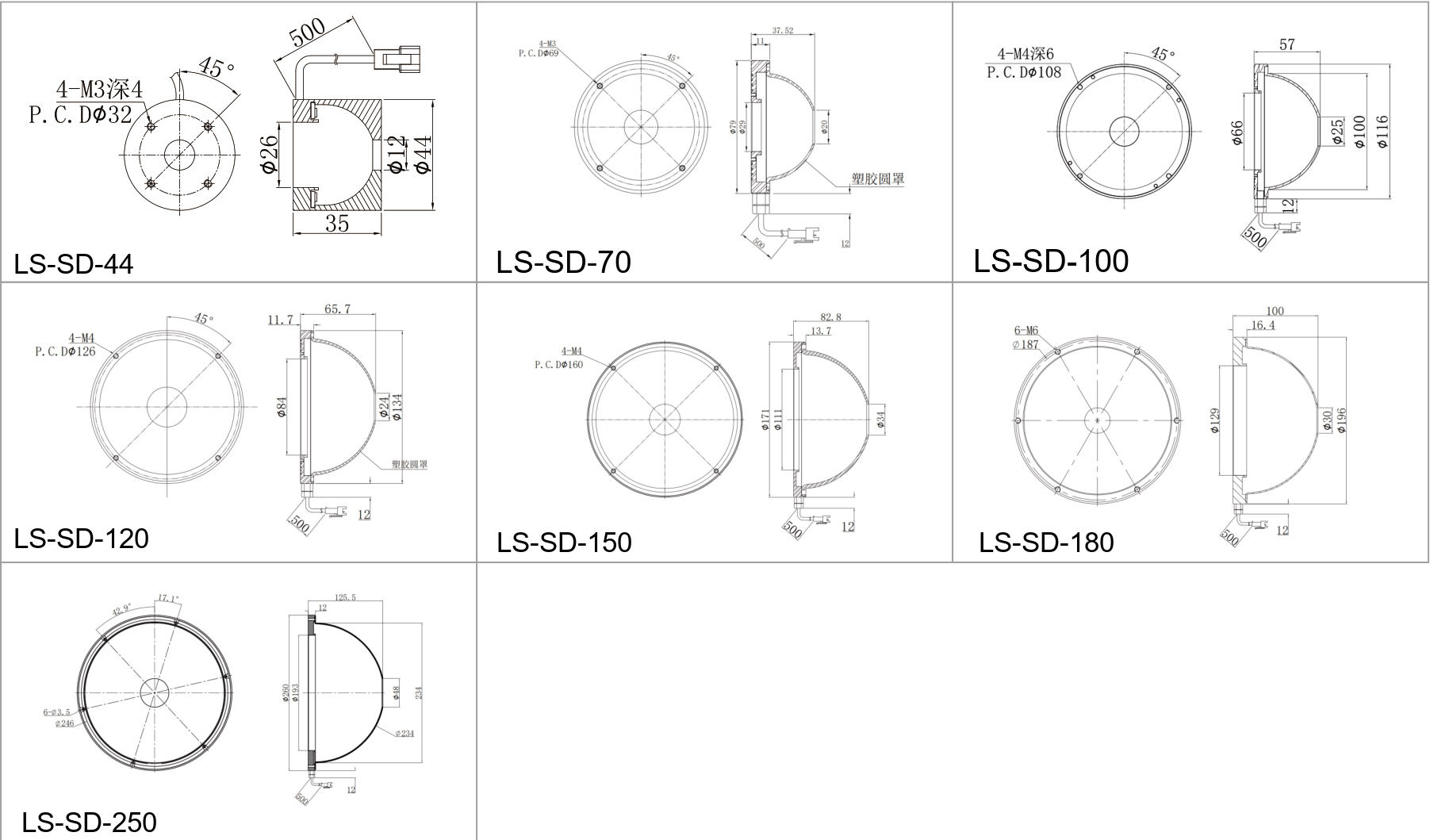

Mounting and drawing data
drawing: 4-M4 depth 6 on P.C.D 108; dome dia 100; base opening dia 66
Applications
- Reflective surface inspection
- Surface irregularity detection
- Food/drug appearance check
- Cigarette box/packaging print inspection

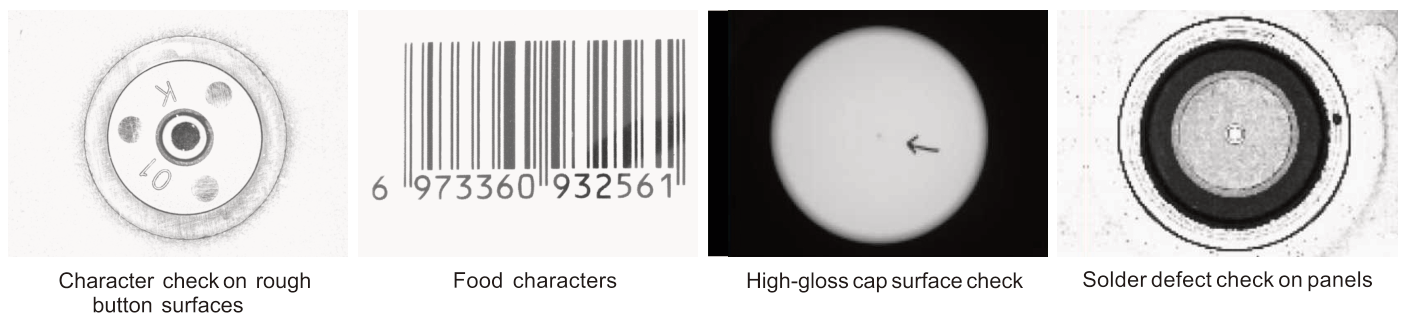

- Character check on rough button surfaces
- Food characters
- High-gloss cap surface check
- Solder defect check on panels
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
