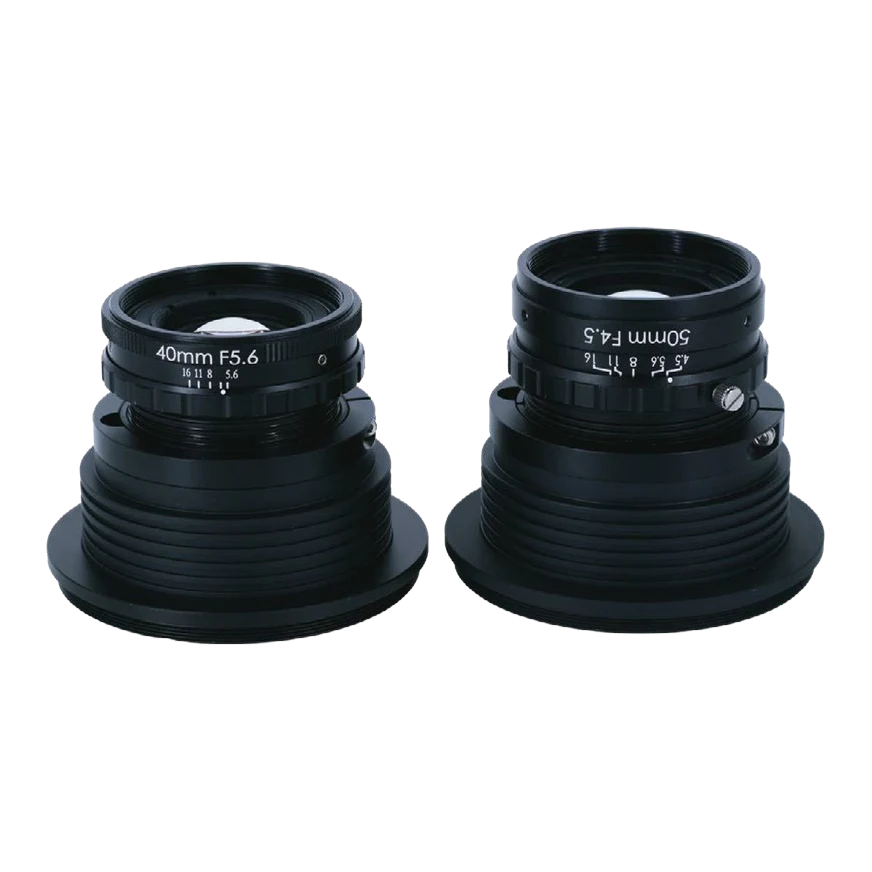

40 mm, 8K, M42-mount Line Scan Lens (LS-LSB408K)

Lenses

40 mm, 8K, M42-mount Line Scan Lens (LS-LSB408K)

Model LS-LSB408K

40 mm, 8K, M42-mount Line Scan Lens. 8K Line Scan Lens.

$649.00 USD
0.70 kg shipping weight · Ships in 2-3 weeks
Secure card checkout · ships from the USA.

Features

  • Large image format Φ60 mm
  • Uniform imaging
  • Shock-resistant focusing locking mechanism

Specifications

ModelLSB408K
Focal length (mm)40
Image circle (mm)60
Resolution (um)8K7µm
Iris (F/#)5.6-16
Magnification range (X)< 0.527
Filter screw sizeM43 * P0.75
MountM42\M58\M72
Shipping weight (estimated)0.70 kg
Complete the station

Drive the light from a light controller and pair it with a lens for your field of view and working distance.

Light controllers LensesSelection guide

Other sizes in the 8K line scan lens (LSB408K / LSB508K, image circle 60 mm) series

ModelSizePowerColoursPrice
LS-LSB508K50 mm, 8K, M42-mount $659.00 View
