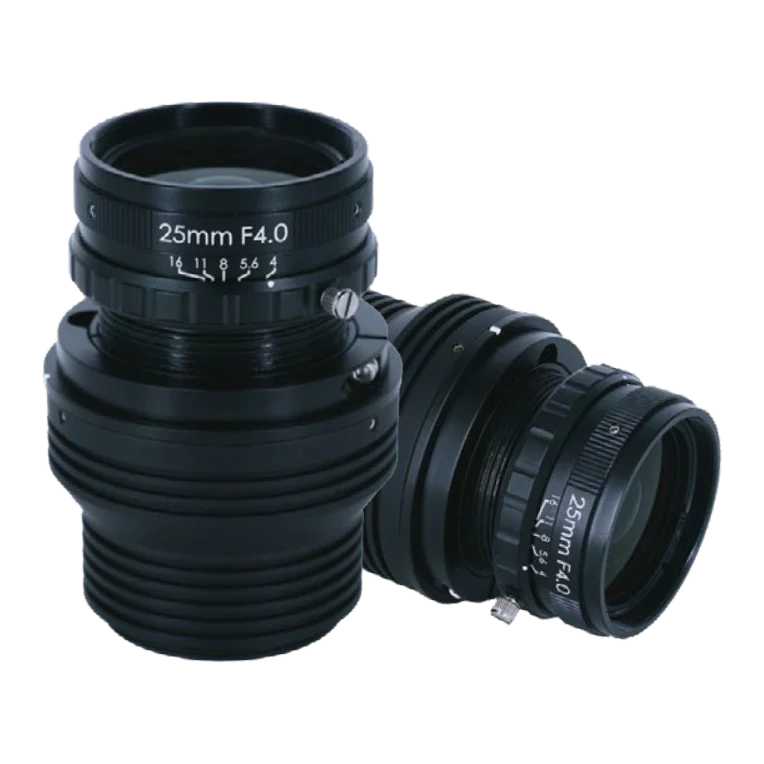

25 mm, 4K, M42-mount Line Scan Lens (LS-LSB254K)
Model LS-LSB254K
25 mm, 4K, M42-mount Line Scan Lens. 4K Line Scan Lens.
Features
- Large image format Φ29mm
- Uniform imaging
- Shock-resistant focusing locking mechanism
Specifications
| Model | LSB254K |
|---|---|
| Focal length (mm) | 25 |
| Image circle (mm) | 29 |
| Resolution (um) | 4K7µm |
| Iris (F/#) | 4.0-16 |
| Magnification range (X) | < 0.229 |
| Filter screw size | M43 * P0.75 |
| Mount | M42\M58\F |
| Shipping weight (estimated) | 0.70 kg |
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
