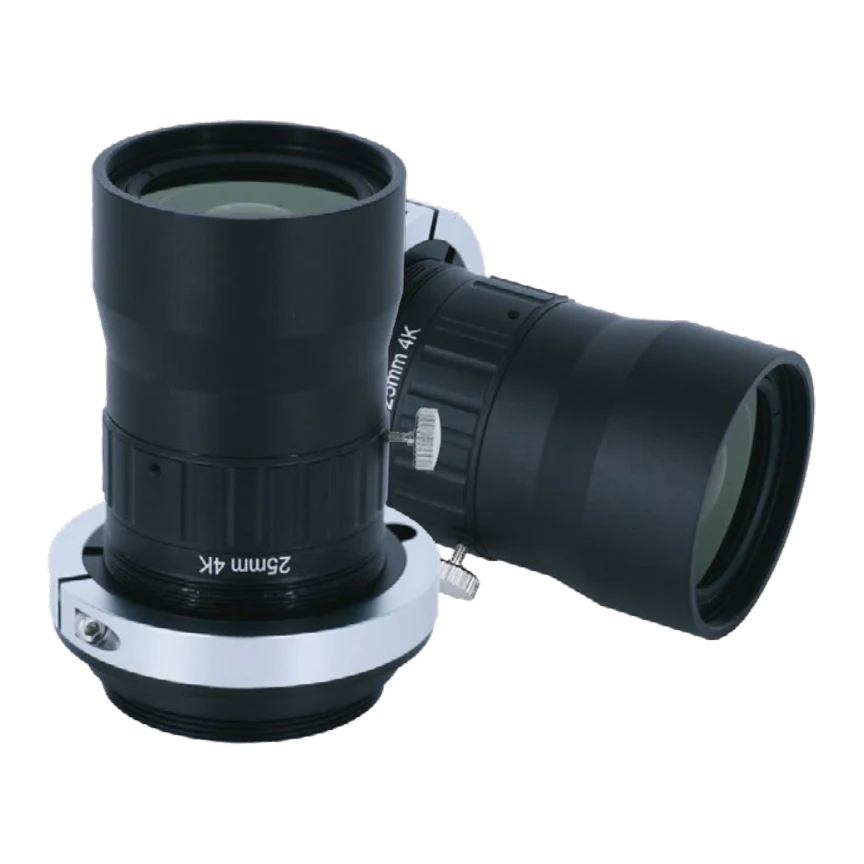

25 mm, 4K, M42-mount Line Scan Lens (LS-LSB254K-015)

Lenses

25 mm, 4K, M42-mount Line Scan Lens (LS-LSB254K-015)

Model LS-LSB254K-015

25 mm, 4K, M42-mount Line Scan Lens. 4K Line Scan Lens.

$379.00 USD
0.70 kg shipping weight · Ships in 2-3 weeks
Secure card checkout · ships from the USA.

Features

  • Large image format Φ29mm
  • Uniform imaging
  • Multiple magnifications available

Specifications

ModelLSB254K-015
Focal length (mm)25
Image circle (mm)29
Resolution (um)4K7µm
Iris (F/#)4.0-22
Magnification range (X)0.125-0.175
Filter screw sizeM40.5 * P0.5
MountM42\M58
Shipping weight (estimated)0.70 kg
Complete the station

Drive the light from a light controller and pair it with a lens for your field of view and working distance.

Light controllers LensesSelection guide

Other sizes in the 4K line scan lens, 25 mm fixed-magnification (LSB254K-0xx) series

ModelSizePowerColoursPrice
LS-LSB254K-00325 mm, 4K, M42-mount $379.00 View
LS-LSB254K-00925 mm, 4K, M42-mount $379.00 View
LS-LSB254K-02425 mm, 4K, M42-mount $379.00 View
