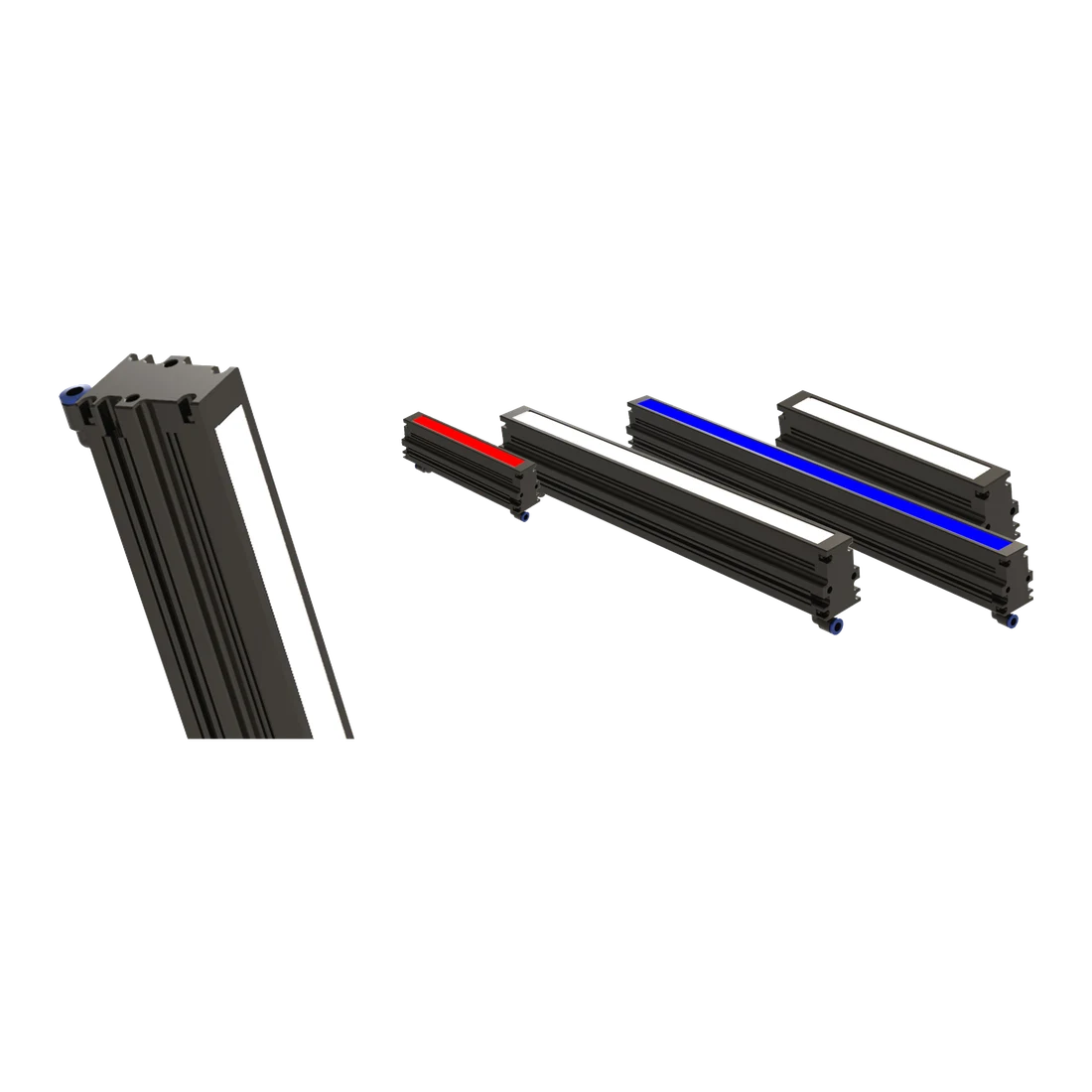

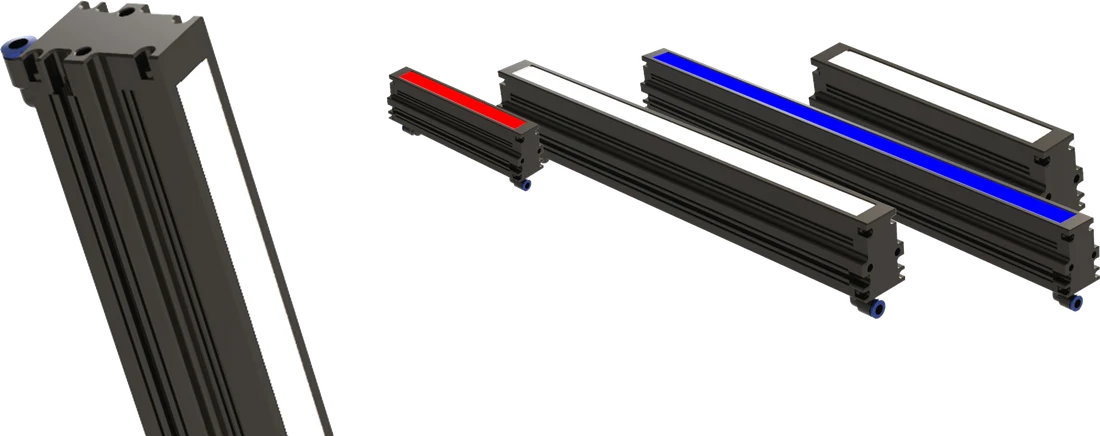

300 x 20 mm Water-Cooled IR Line Special Light (LS-LNR-300-IR)
Model LS-LNR-300-IR
300 x 20 mm Water-Cooled IR Line Special Light. Water-cooled infrared line scan light with closely arranged high-power IR LEDs, for inspecting silicon wafers for cracks and defects. Narrow-band emission reduces external interference and a temperature control switch protects against cooling problems. Coding: LS-LNR-<emitting length>-<colour>, e.g. LS-LNR-300-IR.
Features

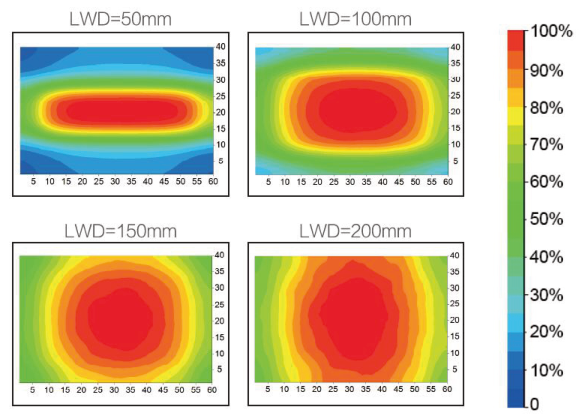

- Closely arranged high-power infrared LEDs for high brightness and better uniformity
- Water-cooled structure for excellent heat dissipation and temperature balance
- Narrow-band emission reduces external interference
- Temperature control switch protects against damage from cooling issues
- Enhanced short-wave infrared penetration
Specifications
| Model | LS-LNR-300-IR |
|---|---|
| Emitting area (mm) | 300x20 |
| Voltage (V) | 48 |
| Power IR (W) | 200 |
| Outer size LxWxH (mm) | 530x44x62 |
| Colours | Infrared |
| Cooling | Water (dia. 8 pipe connectors) |
| Shipping weight (estimated) | 1.35 kg |
Mounting and drawing data

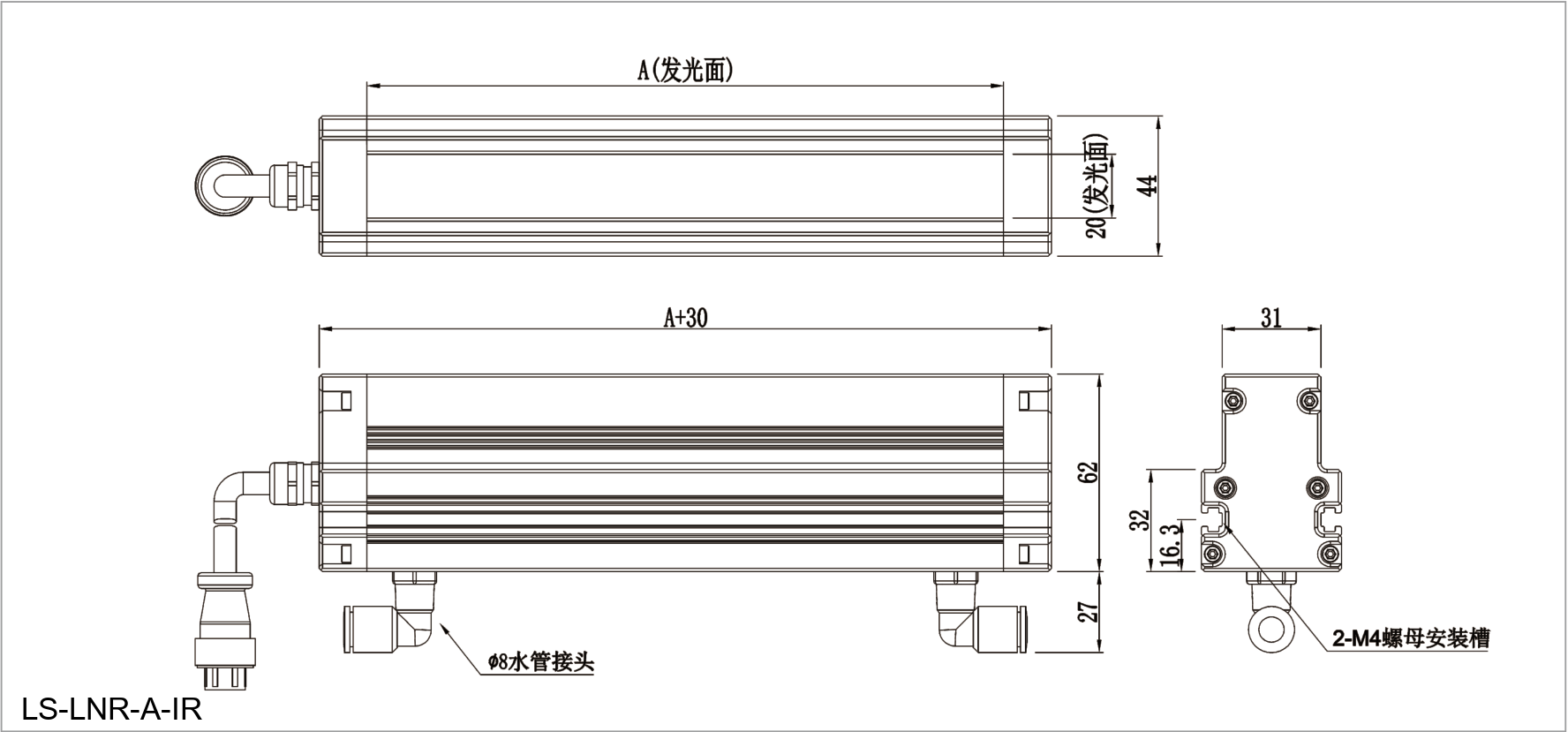

Generic drawing LS-LNR-A-IR: emitting length A, body length A+30, emitting width 20, width 44, height 62 (+27 for fittings), 31 mm end profile, dia. 8 water pipe connectors, 2-M4 nut mounting slot. Table length 530 does not equal A+30 = 330 for A = 300; values kept as printed.
Applications
- Inspect silicon wafers for cracks and defects, reject defectives

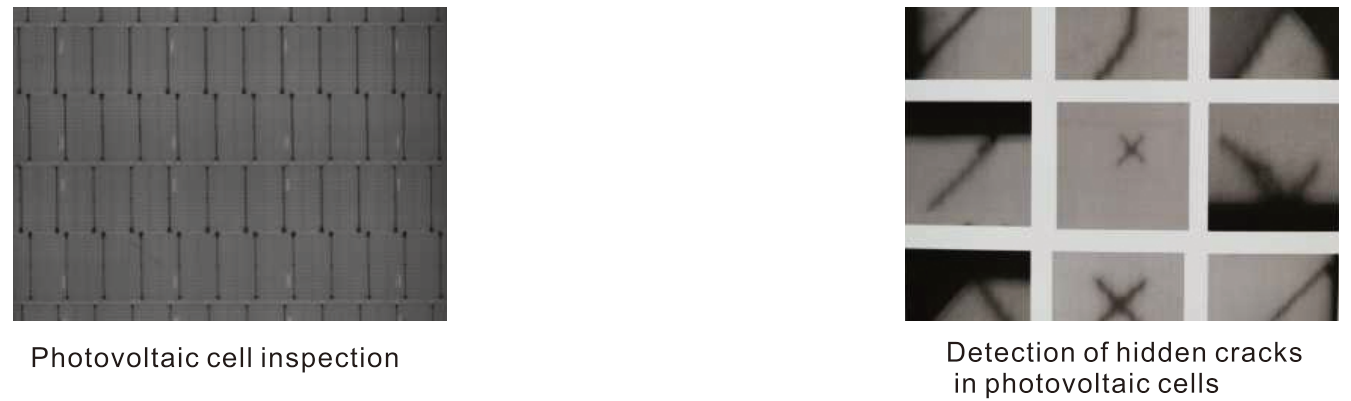

- Photovoltaic cell inspection
- Detection of hidden cracks in photovoltaic cells
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
