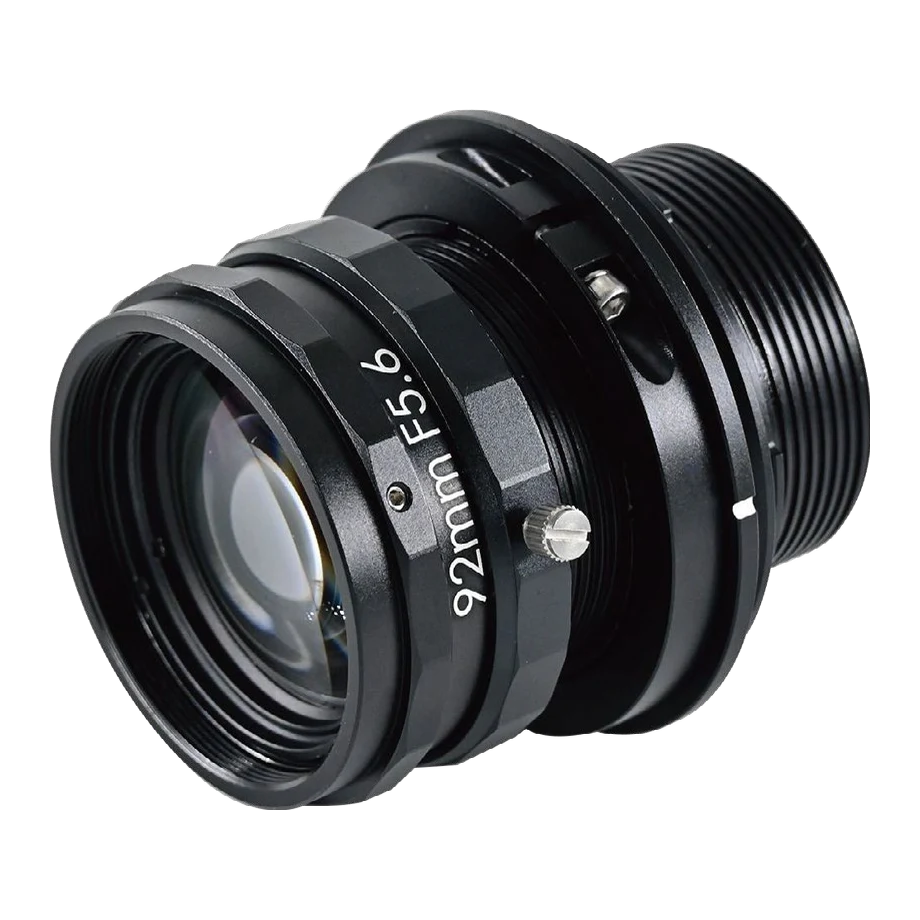

92 mm, 150MP, V48-mount Machine Vision Lens (LS-LBS92151V)

Lenses

92 mm, 150MP, V48-mount Machine Vision Lens (LS-LBS92151V)

Model LS-LBS92151V

92 mm, 150MP, V48-mount Machine Vision Lens. 150MP Industrial Lens.

$1,309.00 USD
1.10 kg shipping weight · Ships in 2-3 weeks
Secure card checkout · ships from the USA.

Features

  • Φ67mm image circle / for 151MP 3.76 µm sensors
  • Custom VF→M72 anti-vibration interfaces
  • V48-mount compatible
  • Low chromatic aberration: sharp 3-color imaging on one focal plane

Specifications

ModelLBS92151V
Focal length (mm)92
Image circle (mm)67
Iris (F/#)5.6-22
Working distance (mm)200-INF.
Magnification range (X)< 0.659
Filter screw sizeM43 * P0.75
MountV48/F口/M42/M58/M72/M90
Magnification table[{'Magnification (X)': '0.659', 'Working distance (mm)': '200', 'Conjugate distance (mm)': '363', 'Distortion (%)': '-0.17', 'Extension ring (mm)': '72'}, {'Magnification (X)': '0.483', 'Working distance (mm)': '250', 'Conjugate distance (mm)': '398', 'Distortion (%)': '-0.17', 'Extension ring (mm)': '60'}, {'Magnification (X)': '0.382', 'Working distance (mm)': '300', 'Conjugate distance (mm)': '440', 'Distortion (%)': '-0.16', 'Extension ring (mm)': '48'}, {'Magnification (X)': '0.316', 'Working distance (mm)': '350', 'Conjugate distance (mm)': '485', 'Distortion (%)': '-0.13', 'Extension ring (mm)': '36'}, {'Magnification (X)': '0.270', 'Working distance (mm)': '400', 'Conjugate distance (mm)': '531', 'Distortion (%)': '-0.10', 'Extension ring (mm)': '36'}, {'Magnification (X)': '0.236', 'Working distance (mm)': '450', 'Conjugate distance (mm)': '579', 'Distortion (%)': '-0.06', 'Extension ring (mm)': '36'}, {'Magnification (X)': '0.210', 'Working distance (mm)': '500', 'Conjugate distance (mm)': '626', 'Distortion (%)': '-0.03', 'Extension ring (mm)': '24'}, {'Magnification (X)': '0.189', 'Working distance (mm)': '550', 'Conjugate distance (mm)': '675', 'Distortion (%)': '0.01', 'Extension ring (mm)': '24'}, {'Magnification (X)': '0.171', 'Working distance (mm)': '600', 'Conjugate distance (mm)': '723', 'Distortion (%)': '0.04', 'Extension ring (mm)': '24'}, {'Magnification (X)': '0.157', 'Working distance (mm)': '650', 'Conjugate distance (mm)': '772', 'Distortion (%)': '0.08', 'Extension ring (mm)': '24'}, {'Magnification (X)': '0.145', 'Working distance (mm)': '700', 'Conjugate distance (mm)': '821', 'Distortion (%)': '0.11', 'Extension ring (mm)': '12'}]
Shipping weight (estimated)1.10 kg

Mounting and drawing data

Header row has a 'Resolution (um)' column but the printed row has one value fewer than its 8 headers; values are recorded by their evident meaning (iris 5.6-22, working distance 200-INF., magnification < 0.659) and resolution is not printed. F口 = F-mount. Per-working-distance table in specs['Magnification table'] (extension ring = spacer length).
