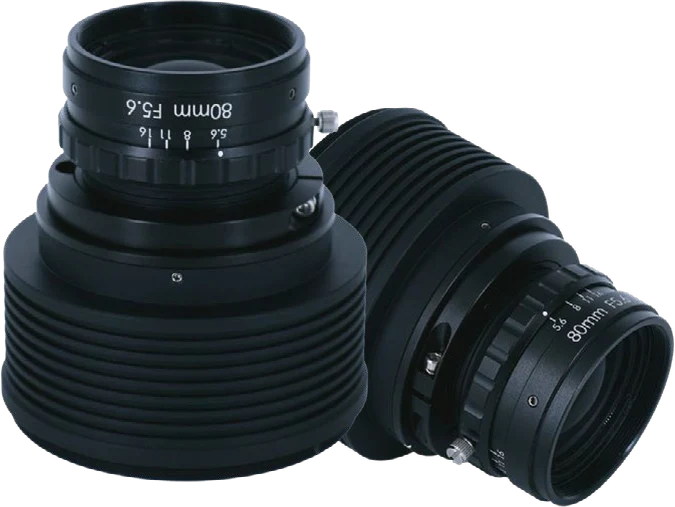

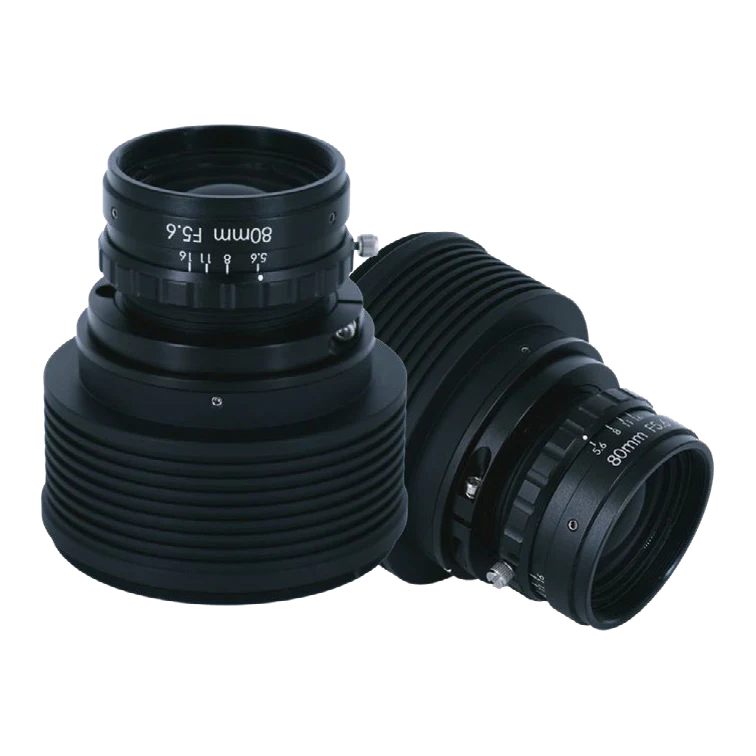

80 mm, 8K, M42-mount Line Scan Lens (LS-LBS808K)
Model LS-LBS808K
80 mm, 8K, M42-mount Line Scan Lens. 8K Line Scan Lens.
Features
- Large image format Φ60mm
- Uniform imaging
- Multiple magnifications available
Specifications
| Model | LBS808K |
|---|---|
| Focal length (mm) | 80 |
| Image circle (mm) | 60 |
| Resolution (um) | 8K7µm |
| Iris (F/#) | 5.6-16 |
| Magnification range (X) | < 0.714 |
| Filter screw size | M43 * P0.75 |
| Mount | M42\M58\M72\M90\M95\F |
| Shipping weight (estimated) | 0.70 kg |
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
