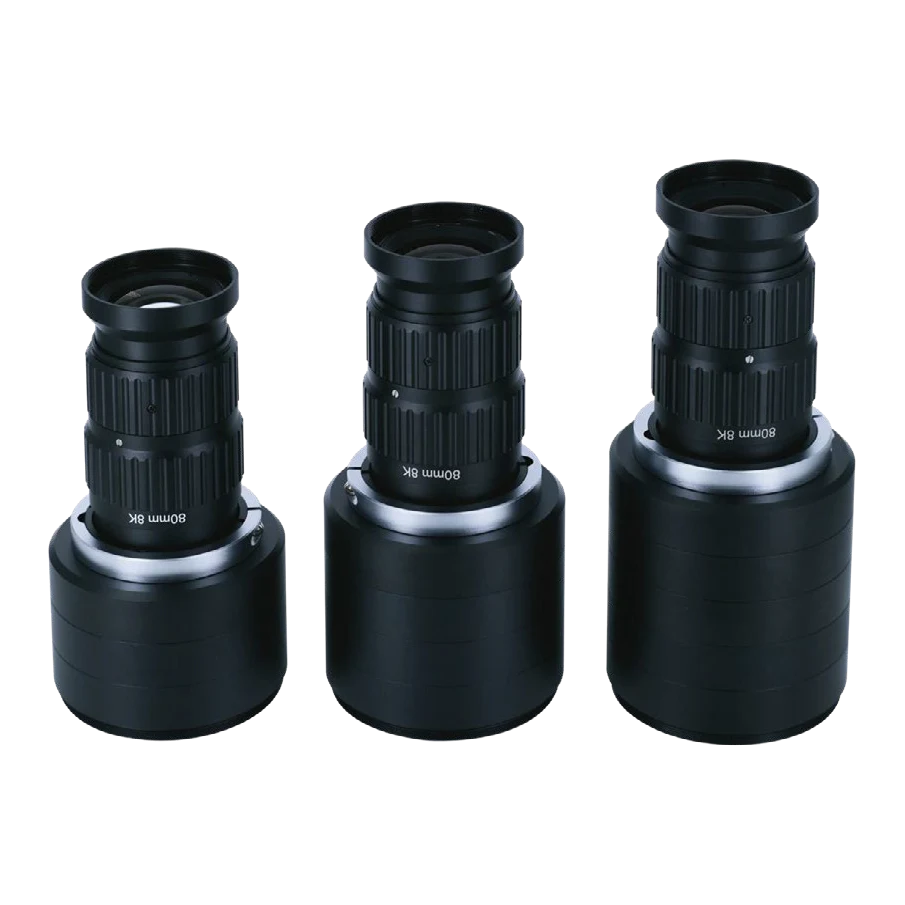

80 mm, 8K, M42-mount Line Scan Lens (LS-LBS808K-025)
Model LS-LBS808K-025
80 mm, 8K, M42-mount Line Scan Lens. 8K Line Scan Lens.
Features
- Large image format Φ60mm
- Multiple magnifications available
Specifications
| Model | LBS808K-025 |
|---|---|
| Focal length (mm) | 80 |
| Image circle (mm) | 60 |
| Resolution (um) | 8K7µm |
| Iris (F/#) | 4.0-22 |
| Magnification range (X) | 0.2-0.375 |
| Filter screw size | M46 * P0.75 |
| Mount | M42\M58\M72 |
| Shipping weight (estimated) | 0.70 kg |
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.

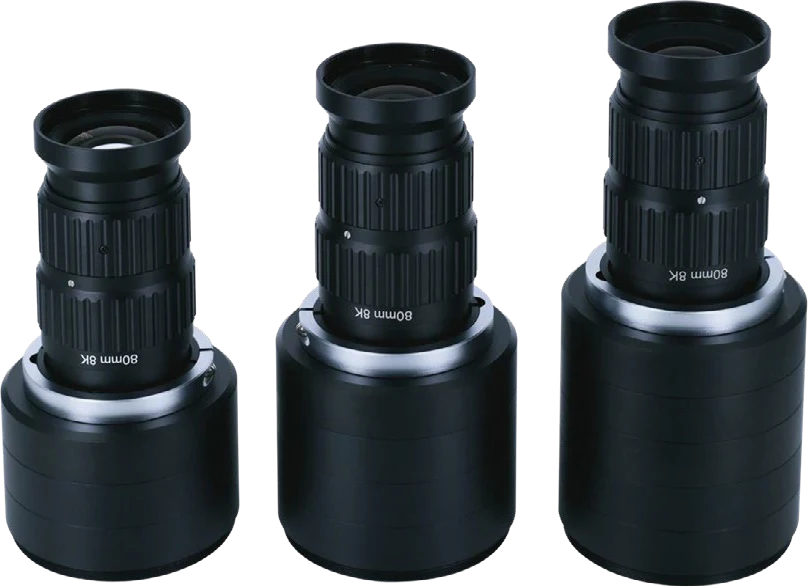

Light controllers LensesSelection guideOther sizes in the 8K line scan lens, 80 mm fixed-magnification (LBS808K-0xx) series
| Model | Size | Power | Colours | Price | |
|---|---|---|---|---|---|
| LS-LBS808K-050 | 80 mm, 8K, M42-mount | $719.00 | View | ||
| LS-LBS808K-075 | 80 mm, 8K, M42-mount | $719.00 | View |
