Lenses

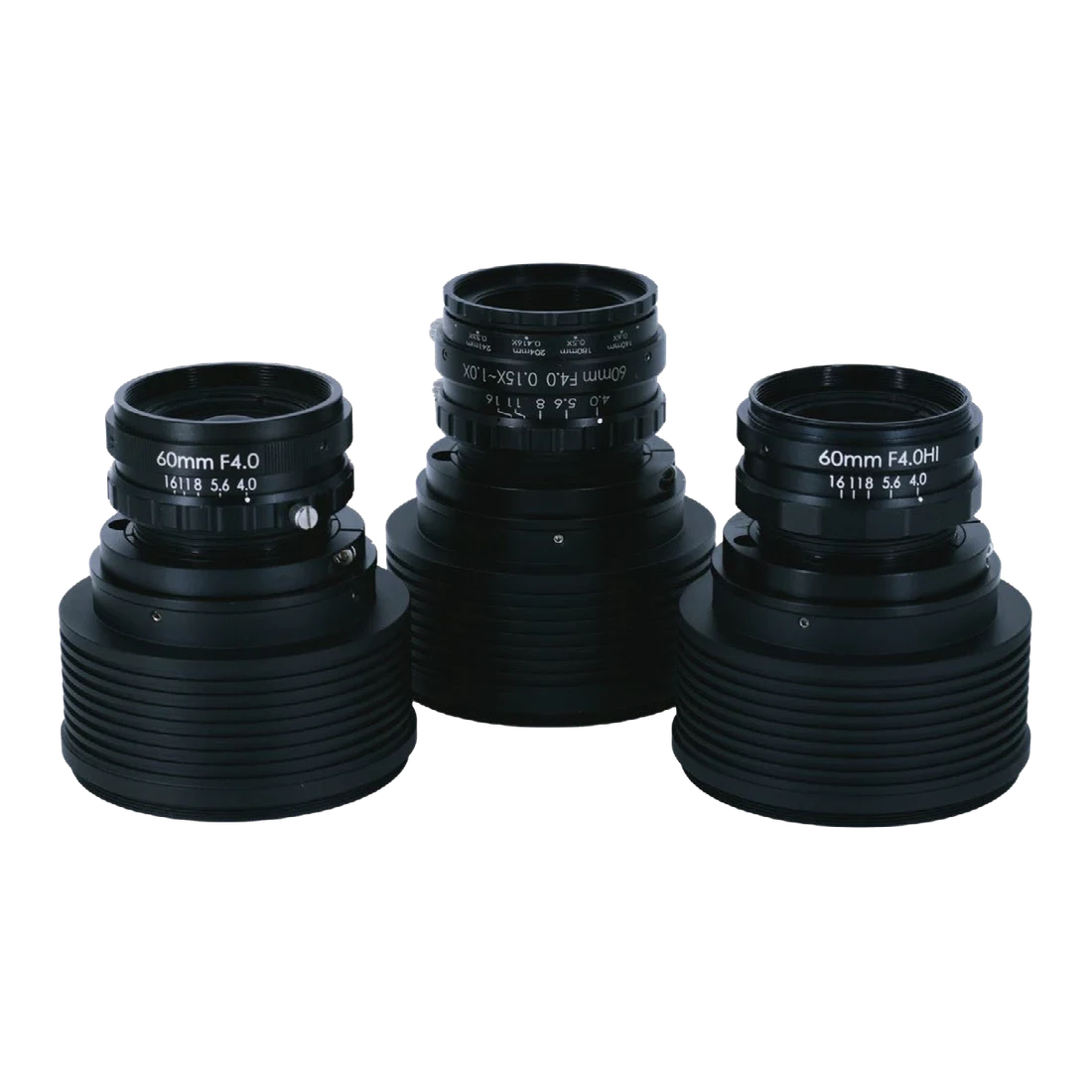

60 mm, 8K, M42-mount Line Scan Lens (LS-LBS6040A)
Model LS-LBS6040A
60 mm, 8K, M42-mount Line Scan Lens. 8K Line Scan Lens.
Features
- Large image format Φ60mm
- Uniform imaging
- Shock-resistant focusing locking mechanism
Specifications
| Model | LBS6040A |
|---|---|
| Focal length (mm) | 60 |
| Image circle (mm) | 60 |
| Resolution (um) | 8K7µm |
| Iris (F/#) | 4.0-16 |
| Magnification range (X) | < 0.45 |
| Filter screw size | M43 * P0.75 |
| Mount | M42\M58\M72\M90\M95\F |
| Shipping weight (estimated) | 0.70 kg |
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.

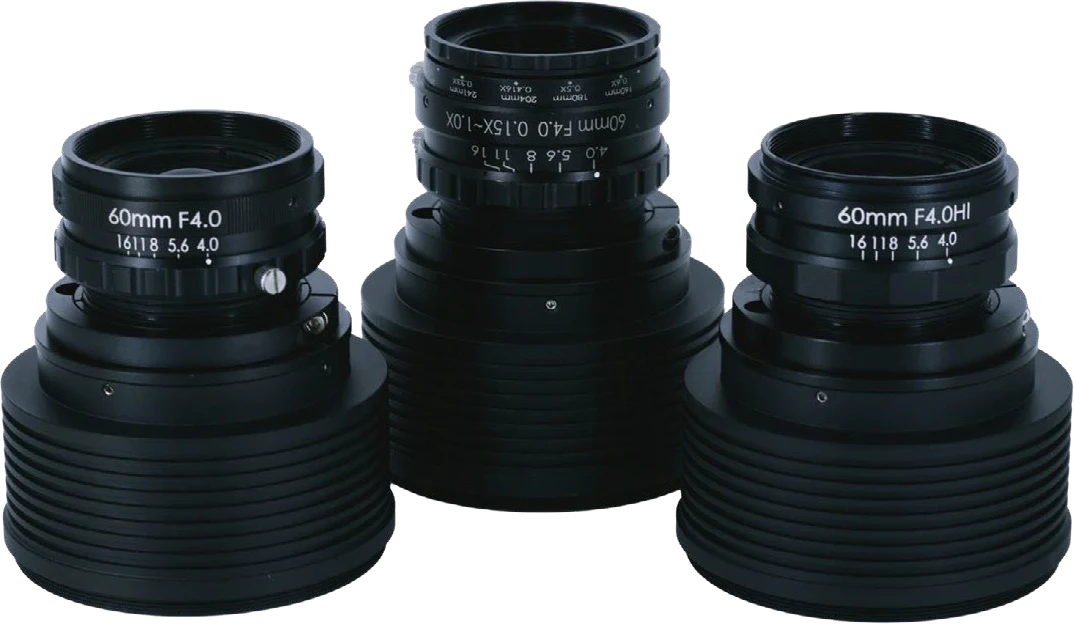

Light controllers LensesSelection guideOther sizes in the 8K line scan lens 60 mm (LBS6040A) series
| Model | Size | Power | Colours | Price | |
|---|---|---|---|---|---|
| LS-LBS6040A-H | 60 mm, 8K, M42-mount | $679.00 | View | ||
| LS-LBS6040A-015 | 60 mm, 8K, M42-mount | $679.00 | View |
