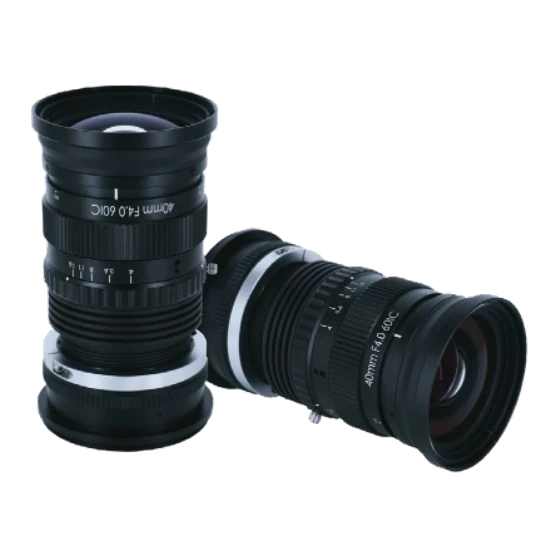

40 mm, 16K, M72-mount Line Scan Lens (LS-LBS4016K)

Lenses

40 mm, 16K, M72-mount Line Scan Lens (LS-LBS4016K)

Model LS-LBS4016K

40 mm, 16K, M72-mount Line Scan Lens. 16K Line Scan Lens.

$1,069.00 USD
1.10 kg shipping weight · Ships in 2-3 weeks
Secure card checkout · ships from the USA.

Features

  • Large image format Φ60mm
  • Floating design: good image quality at different working distances
  • Shock-resistant focusing locking mechanism
  • Uniform imaging

Specifications

ModelLBS4016K
Focal length (mm)40
Image circle (mm)60
Resolution (um)16K3.5µm
Iris (F/#)4.0-16
Magnification range (X)< 0.394
Filter screw sizeM72 * P0.75
MountM72
Shipping weight (estimated)1.10 kg
