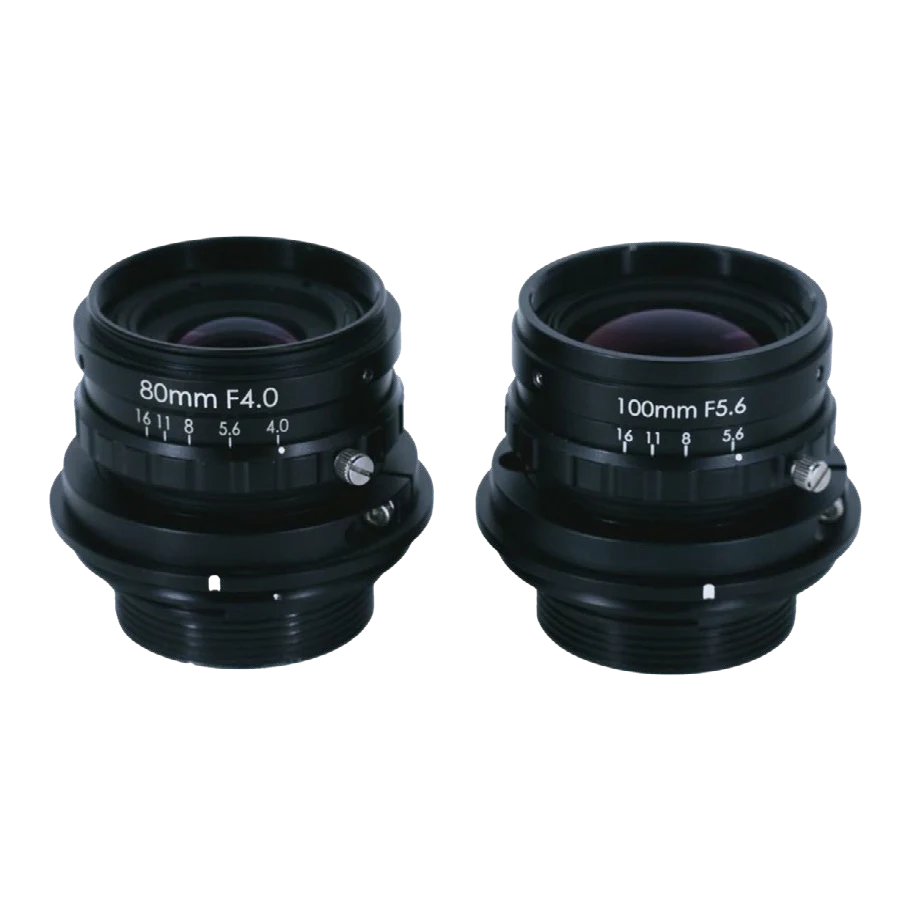

100 mm, 16K, M42-mount Line Scan Lens (LS-LBS10016K)
Model LS-LBS10016K
100 mm, 16K, M42-mount Line Scan Lens. 16K Line Scan Lens.
Features
- Large image format Φ80mm
- Uniform imaging
- Shock-resistant focusing locking mechanism
Specifications
| Model | LBS10016K |
|---|---|
| Focal length (mm) | 100 |
| Image circle (mm) | 82 |
| Resolution (um) | 16K5µm |
| Iris (F/#) | 5.6-16 |
| Magnification range (X) | < 0.446 |
| Filter screw size | M43 * P0.75 |
| Mount | M42\M58\M72\M90\M95\F |
| Shipping weight (estimated) | 1.10 kg |
Mounting and drawing data
Feature icon says image format Φ80mm; table image-circle column says 82
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
Light controllers LensesSelection guideOther sizes in the 16K line scan lens (LBS8016K / LBS10016K, image circle 82 mm) series
| Model | Size | Power | Colours | Price | |
|---|---|---|---|---|---|
| LS-LBS8016K | 80 mm, 16K, M42-mount | $1,139.00 | View |
