50 mm, 1.1", 20MP, C-mount Machine Vision Lens (LS-FTQ5015C)

Lenses

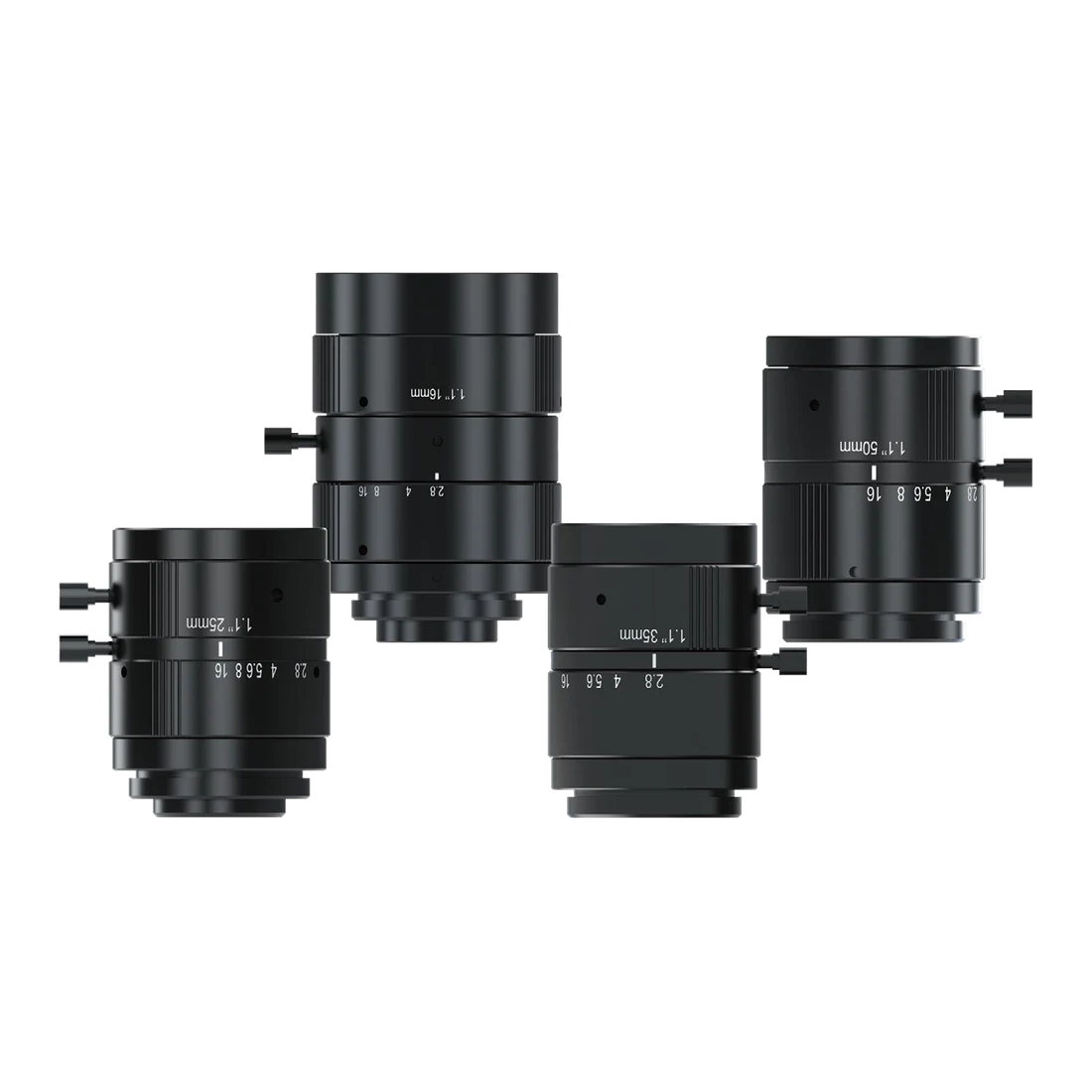

50 mm, 1.1", 20MP, C-mount Machine Vision Lens (LS-FTQ5015C)

Model LS-FTQ5015C

50 mm, 1.1", 20MP, C-mount Machine Vision Lens. 1-1.1 Inch 20MP Industrial Lens.

$259.00 USD
0.45 kg shipping weight · Ships in 2-3 weeks
Secure card checkout · ships from the USA.

Features

  • High resolution
  • Low distortion
  • Max support 1.1 Inch

Specifications

ModelFTQ5015C
Focal length (mm)50
Iris (F/#)2.8-16
Working distance (mm)300-1000
Distortion (%)< 0.75
Relative illumination (%)> 90
Filter screw sizeM27 * P0.5
Format size (")1.1
MountC
Shipping weight (estimated)0.45 kg
Complete the station

Drive the light from a light controller and pair it with a lens for your field of view and working distance.

Light controllers LensesSelection guide

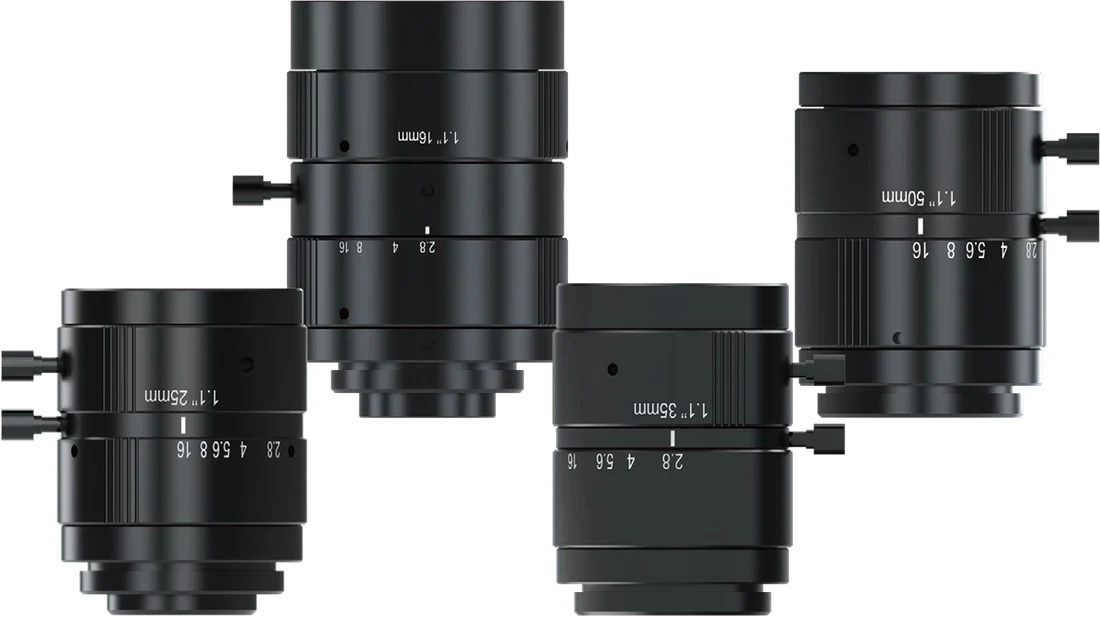

Other sizes in the 1-1.1 inch 20MP industrial lens (FTQ..15C) series

ModelSizePowerColoursPrice
LS-FTQ1615C16 mm, 1.1", 20MP, C-mount $219.00 View
LS-FTQ2515C25 mm, 1.1", 20MP, C-mount $229.00 View
LS-FTQ3515C35 mm, 1.1", 20MP, C-mount $239.00 View
