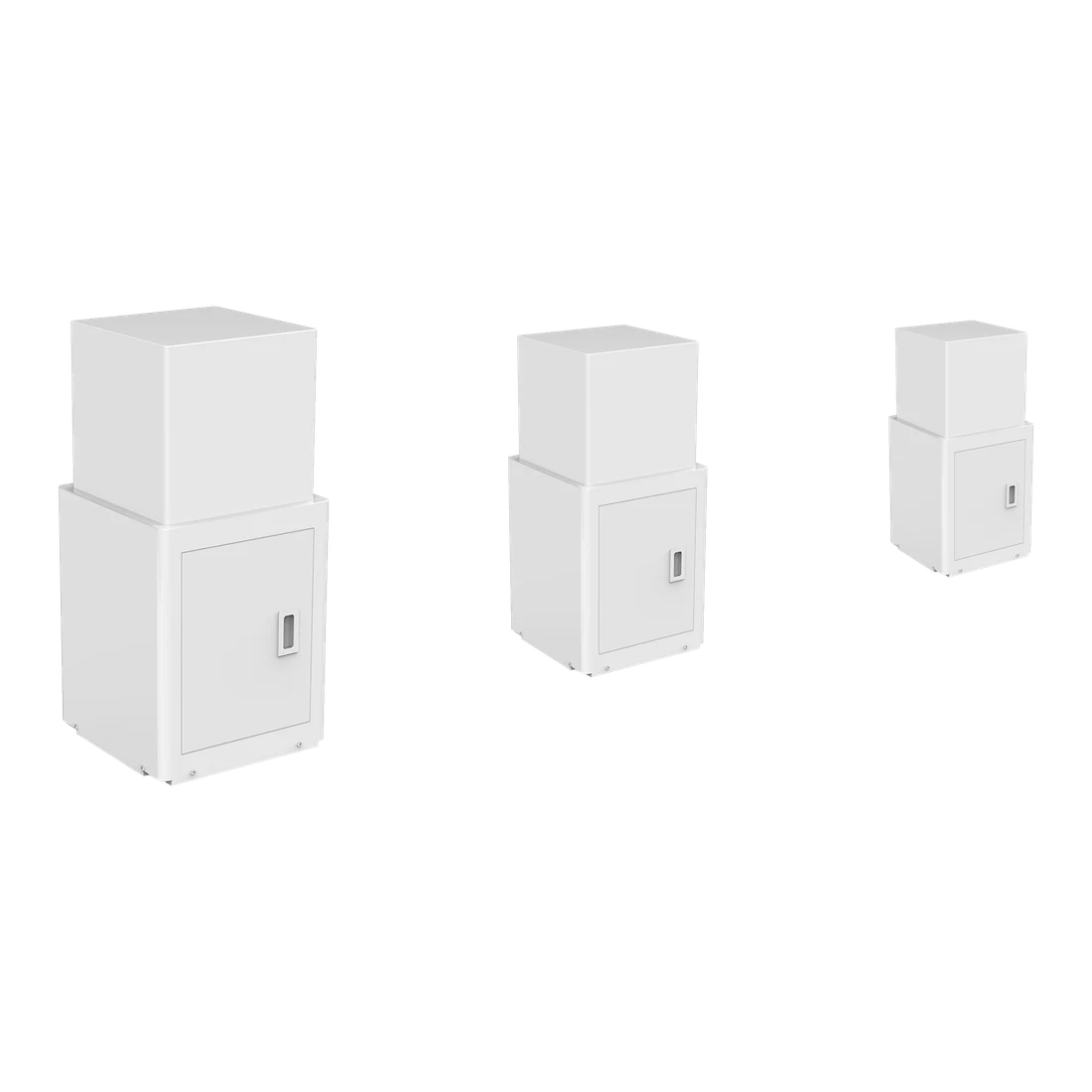

270 x 270 mm Barrel Special Light (LS-FTL-270-440-RGB)
Model LS-FTL-270-440-RGB
270 x 270 mm Barrel Special Light. Large enclosed barrel light for photovoltaic cell inspection that quickly detects scratches, crystal detachment, dirt, colour differences, white spots, watermarks and missing corners, and can distinguish more than 7 colour categories. Coding: LS-FTL-<emitting length>-<height of bottom>-<colour>, e.g. LS-FTL-270-440-RGB.
Features
- Can quickly detect defects such as scratches, crystal detachment, dirt, colour differences, white spots, watermarks and missing corners
- Can distinguish more than 7 colour categories
Specifications
| Model | LS-FTL-270-440-RGB |
|---|---|
| Emitting area (mm) | 270x270 |
| Voltage (V) | 24 |
| Power R (W) | 32.4 |
| Power G (W) | 34 |
| Power B (W) | 34.5 |
| Outer size LxWxH (mm) | 340x340x727 |
| Colours | Red, Green, Blue |
| Shipping weight (estimated) | 12.50 kg |
Mounting and drawing data

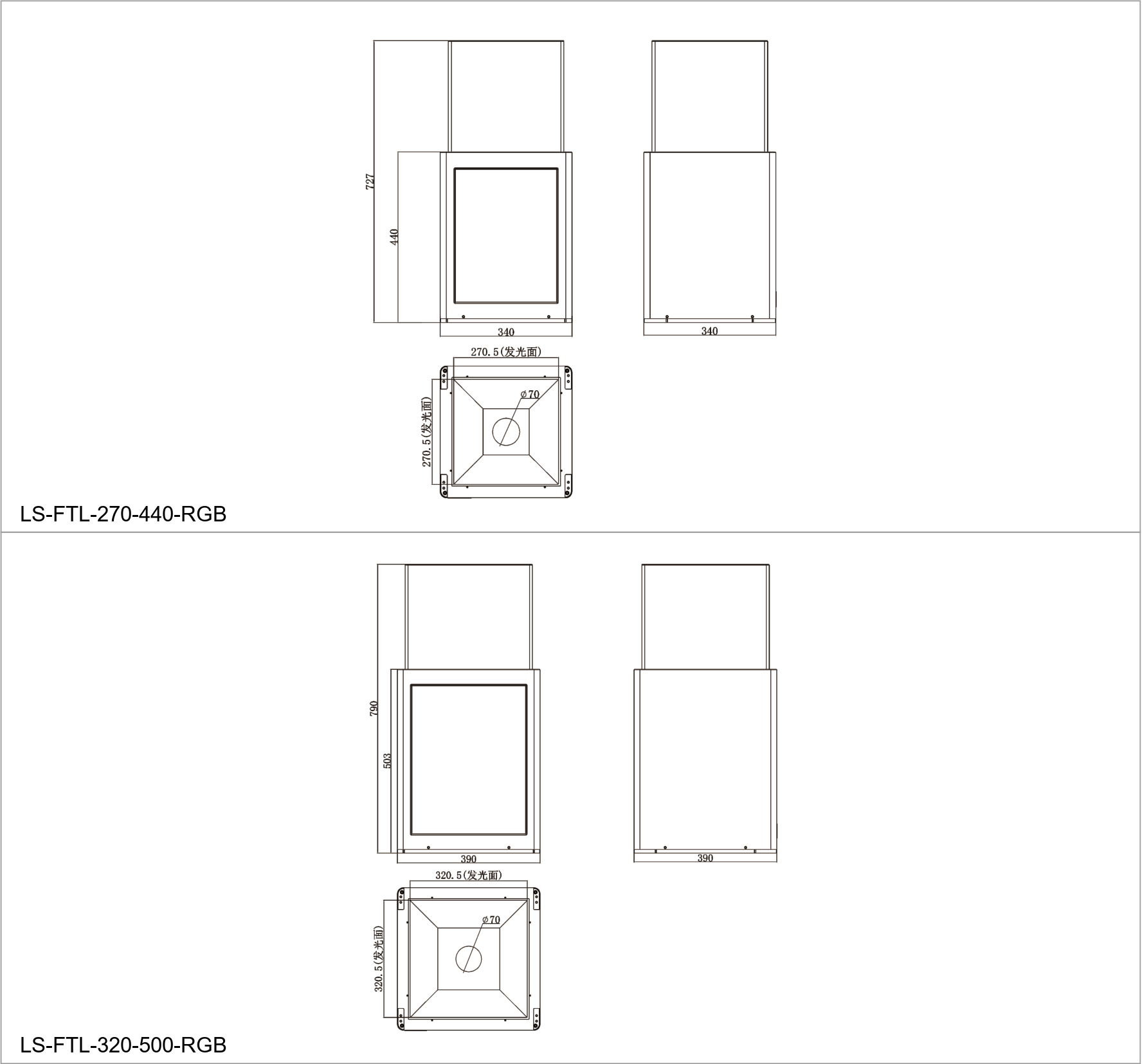

Drawing: lower body 440 high, total height 727, width 340; emitting face 270.5 x 270.5; camera opening dia. 70.
Applications
- Fingerprints/watermarks
- Process shifts/sizes
- Defects (chipping, damage, missing corners)

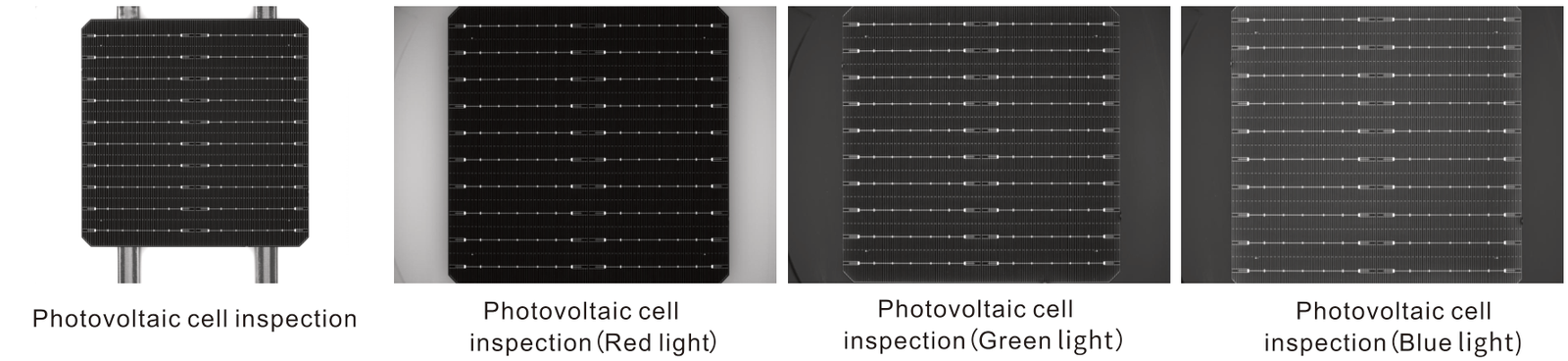

- Photovoltaic cell inspection (red, green and blue light)
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
Light controllers LensesSelection guideOther sizes in the Photovoltaic barrel light (FTL series) series
| Model | Size | Power | Colours | Price | |
|---|---|---|---|---|---|
| LS-FTL-320-500-RGB | 320 x 320 mm | 39.5 W | $649.00 | View |
