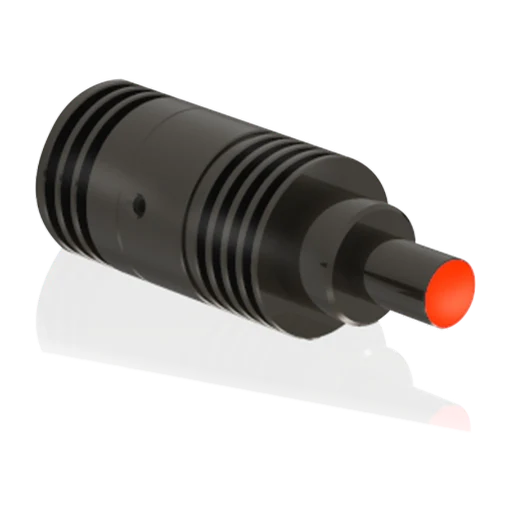

7 mm dia. Spot Light (LS-2TF-27-08-3)
Model LS-2TF-27-08-3
7 mm dia. Spot Light. Spot light used with a coaxial lens for LED die bonding, chip character inspection and mark point location. A special lens combination achieves high-brightness, high-uniformity spot illumination.

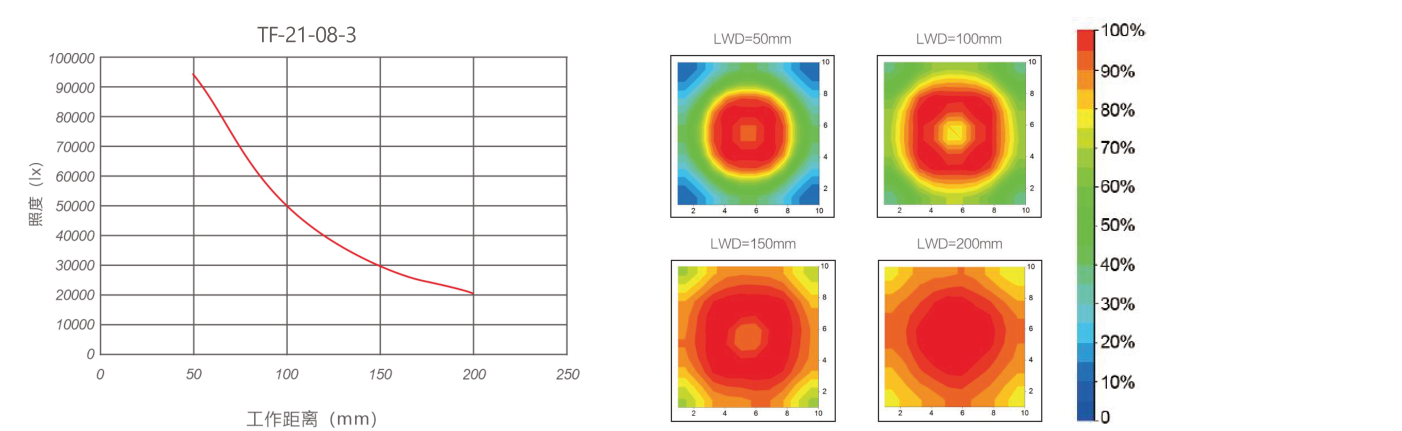

Features
- Special lens combination.
- Achieving high-brightness, high-uniformity spot illumination.
Specifications
| Model | LS-2TF-27-08-3 |
|---|---|
| Emitting area (mm) | 7 |
| Connection dia (mm) | 8 |
| Voltage (V) | 5 |
| Power (W) | 4.5 |
| Outer size ODxH (mm) | 27x62.5 |

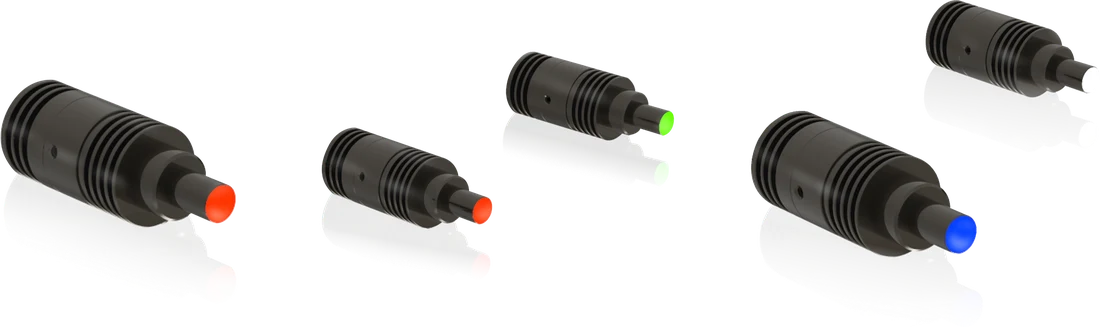

| Colours | Red, Green, Blue, White |
| LED colour options (legend) | R / G / B / W / IR / UV |
| Colours shown per model | R, G, B, W |
| Cable length | 500 mm (per dimension drawings) |
| Shipping weight (estimated) | 0.25 kg |
Mounting and drawing data

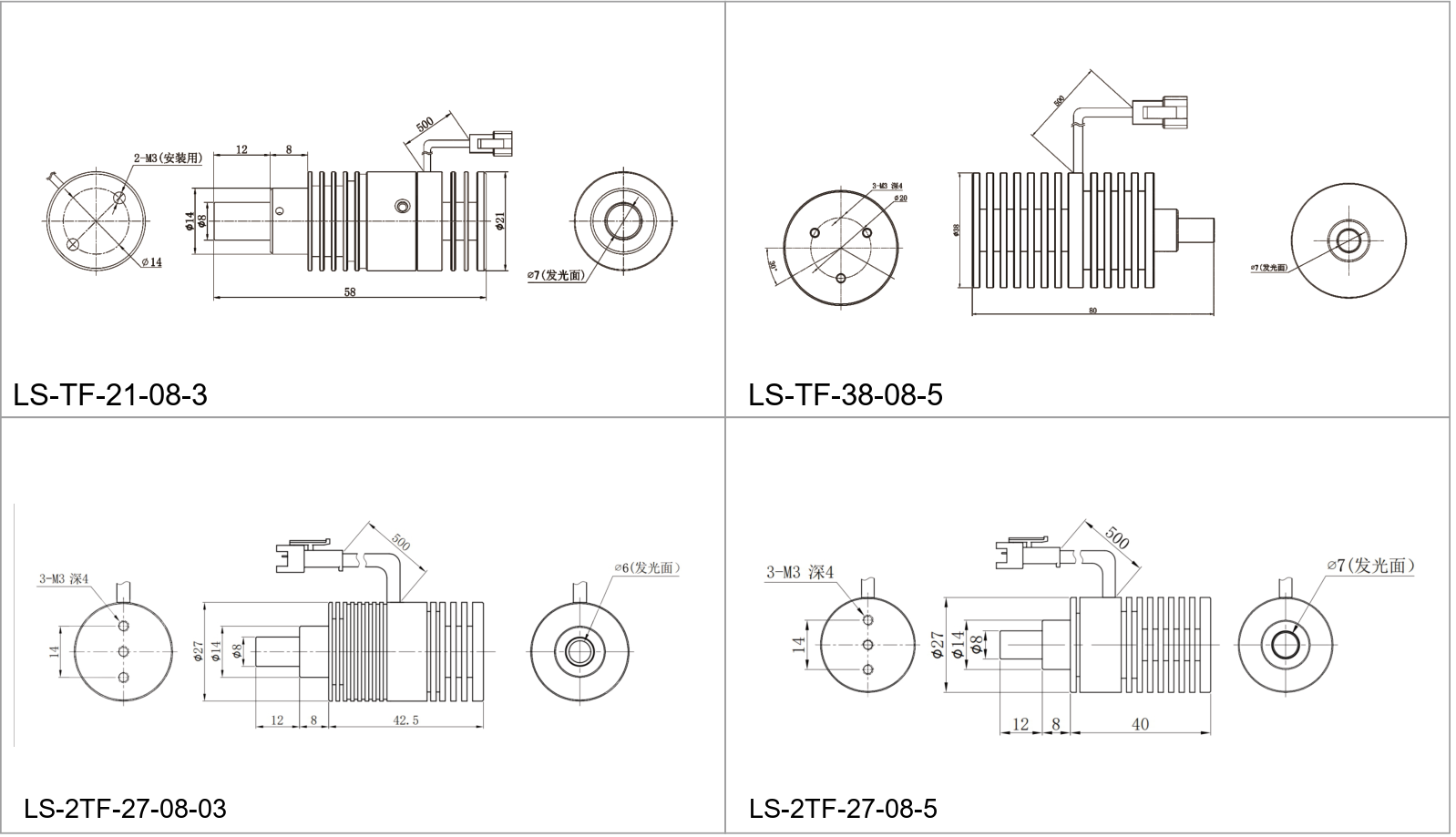

drawing (labelled LS-2TF-27-08-03): OD 27, nose dia 14 / 8, lengths 12 + 8 + 42.5, 3-M3 depth 4 holes at 14 spacing, emitting face marked dia 6 on drawing (table: 7), 500 mm cable
Applications
- Used with coaxial lens
- LED die bonding
- Chip character inspection
- Mark point location
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
Light controllers LensesSelection guideOther sizes in the Spot light (TF series) series
| Model | Size | Power | Colours | Price | |
|---|---|---|---|---|---|
| LS-TF-21-08-3 | 7 mm dia. | 3 W | $139.00 | View | |
| LS-TF-38-08-5 | 7 mm dia. | 5 W | $139.00 | View | |
| LS-2TF-27-08-5 | 7 mm dia. | 5 W | $139.00 | View |
