Flat square shadowless (coaxial-style) light with a 108 x 108 mm diffuse emitting face and a 20 x 20 mm centre window the camera looks through. Even, glare-free illumination for reading surface features, part presence, bent pins and printed patterns on shiny or curved parts.
| Type | Flat square shadowless light (upgraded P version) |
|---|---|
| Outer size | 120 x 120 x 30 mm |
| Emitting area | 108 x 108 mm |
| Viewing window | 20 x 20 mm, centred |
| Colour | White, 5000-8000 K |
| Power | 4 W |
| Input voltage | 24 V DC (typ.) |
| Mounting | 4 x M3, 4 mm deep, on 102 x 102 mm (rear) |
| Cable | 500 mm lead |
| Lifetime | 30,000 h to 50% brightness decay |
| Typical applications | FPC positioning, part presence, bent-pin and pattern inspection |
| Shipping weight | 0.60 kg (1.3 lb) |

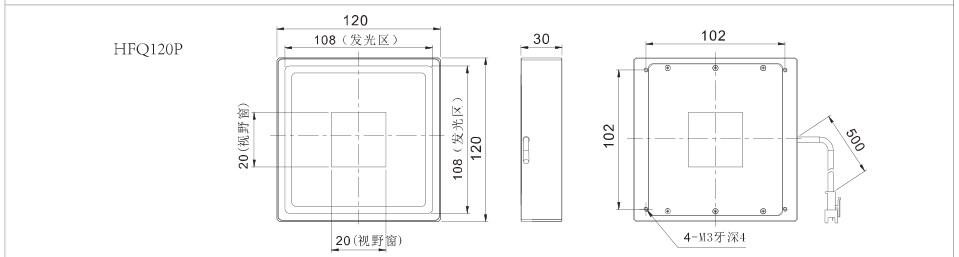

Dimensions, power and mounting are from the manufacturer's drawing (shown below). Product image is an illustration drawn from that drawing.
